YQJJ30/45-6C factory directly sale mobile 6 or 4 columns truck lift bus lifter auto lift 30t/45t

Short Description:

Send email to us

Product Detail

Product Tags

Overview

Large load capacity, leading domestic technology;

The column can be moved, simple and convenient to use;

Column track, machining once forming, uniform load, more stable operation;

The lifting bracket is externally oriented, with large bearing capacity;

The planetary cycloidal pin wheel is used to decelerate, the lead screw rotates, the nut drives the bracket, and the fork lifts;

The width of the lifting bracket can be adjusted to meet more lifting needs;

Humanized design, reasonable and beautiful.

Product parameters

Product name	heavy duty six post truck Auto car lift
Model	YQJJ30-6C		YQJJ45-6C
Number of columns	6		6
Single column lifting capacity (kg)	5000		7500
Total lifting capacity of equipment (kg)	30000		45000
The weight of each column (kg)	850		1200
Weight of each device(kg)	5100		7200
Equipment height (mm)	2930		3000

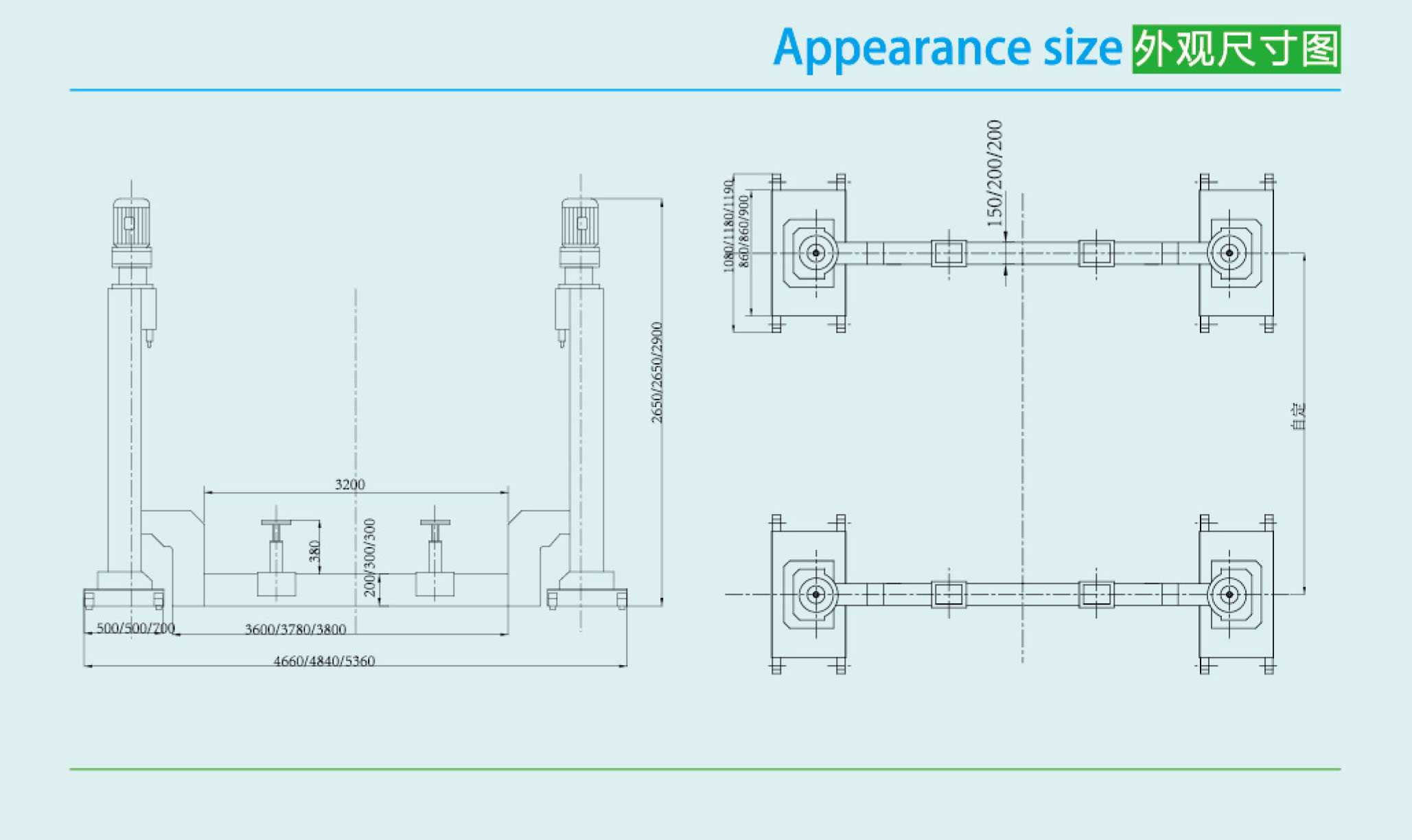

W*L for each column (mm)	1140*1532		1300*1160
Lift & Down (mm)	1500
Max lifting height(mm)	1700
Motor power (kw)	2.2	3
Supply voltage	380	380
Lift & Down Time (s)	120	120
Driving mode	mechanical	mechanical
Select accessories	Jack stand	Jack stand

the warranty period and equipment problems

1. This product is underwritten by the People's Insurance Company of China.

2, Warranty period: from the date of acceptance of the equipment signed for the buyer's purchase of equipment free warranty for one year, free warranty period generated by the supplier is responsible for all costs. (Except for damage caused by user's human factors and other force majeure).

3. Solution of equipment problems after the warranty expires: the supplier provides lifelong maintenance services for the equipment sold. After the free warranty expires, only the cost of equipment maintenance is charged.
