YML-210 Frame Car Bench Machine For Sale/Auto Body Frame Machine/Auto Body Straightener

Short Description:

Note: According to user requirements for different voltage and frequency product (specific parameters see the equioment signs)

(Optional color) Manual Lock Release 2 Post Car Lift

Send email to us

Product Detail

Product Tags

Characteristics

1.The four-row flat square hole work platform has a whole board of 10mm and a bottom of 8mm. The overall platform of the single-sided pneumatic hydraulic tilting lifting platform is formed by large-scale CNC flame cutting, uniform and smooth, high flatness, high strength, fixed without blind spots, stretch Faster and more convenient.

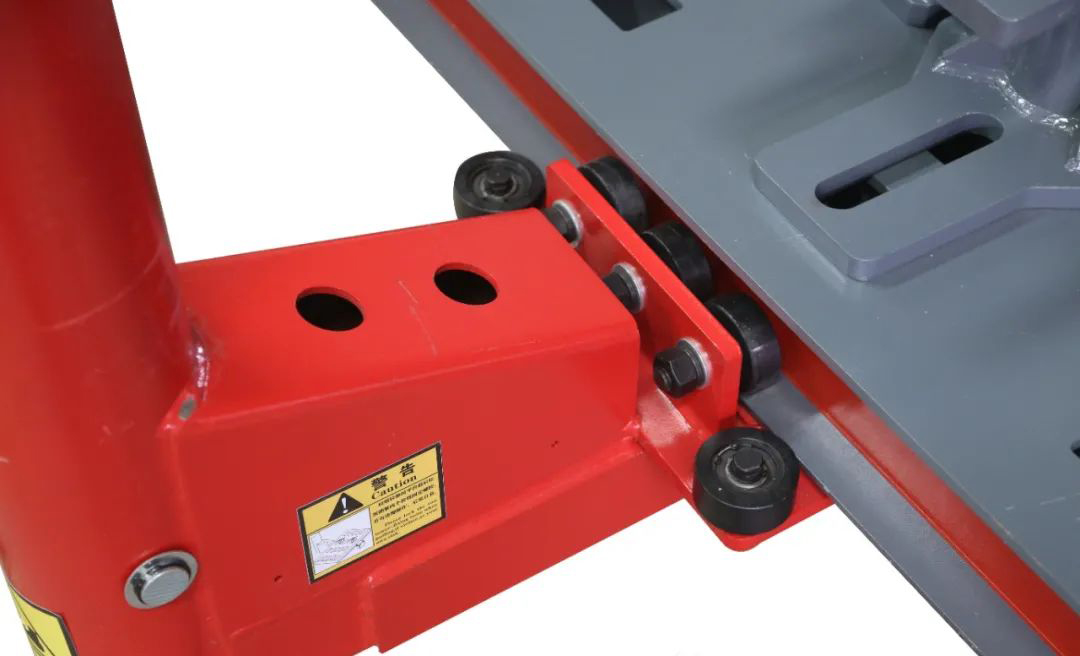

2.140 Double pulling tower, 360 degree free rotation, equipped with 12mm thick chain, unique roller rotation mechanism design,so that the movement of the pulling tower is more stable and flexible. Unique pulling tower fixing method, convenient and reliable, no blind spots.

3.Special sheet metal fixtures and auxiliary tools can satisfy any deformation correction and repair.

4.Double pneumatic pump hydraulic system, the hydraulic system has reliable performance, long service life, strong power, convenient maintenance.

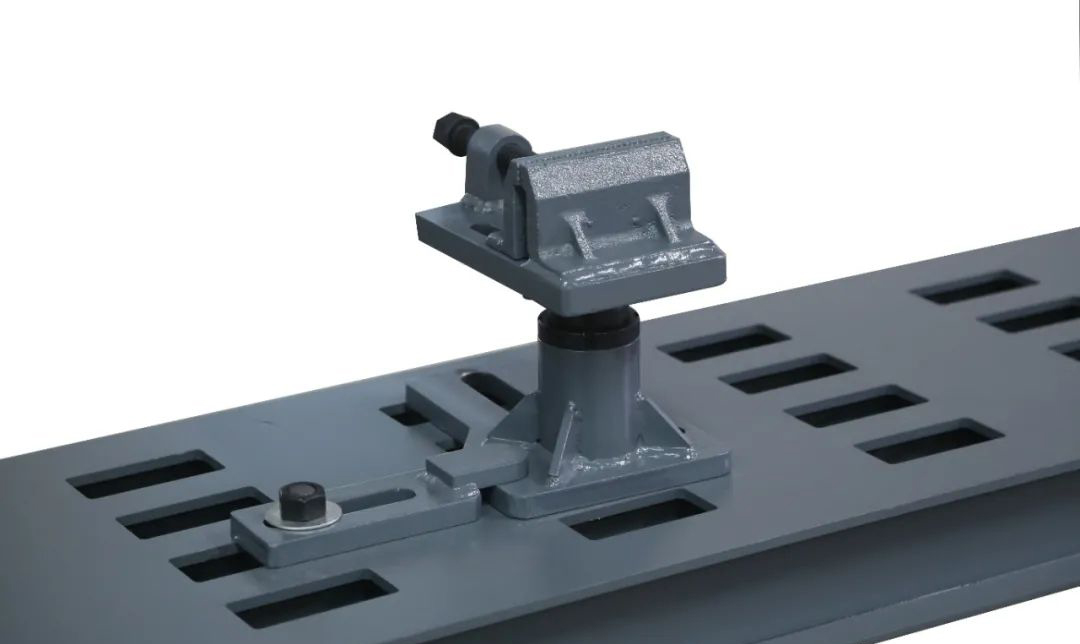

5.The general-purpose main damp is suitable for vehides with bottom skirts, ensuring rapid clamping of various models,and improving work efficiency and service life.

Technical Specification

Lifting Capacity	3500kg

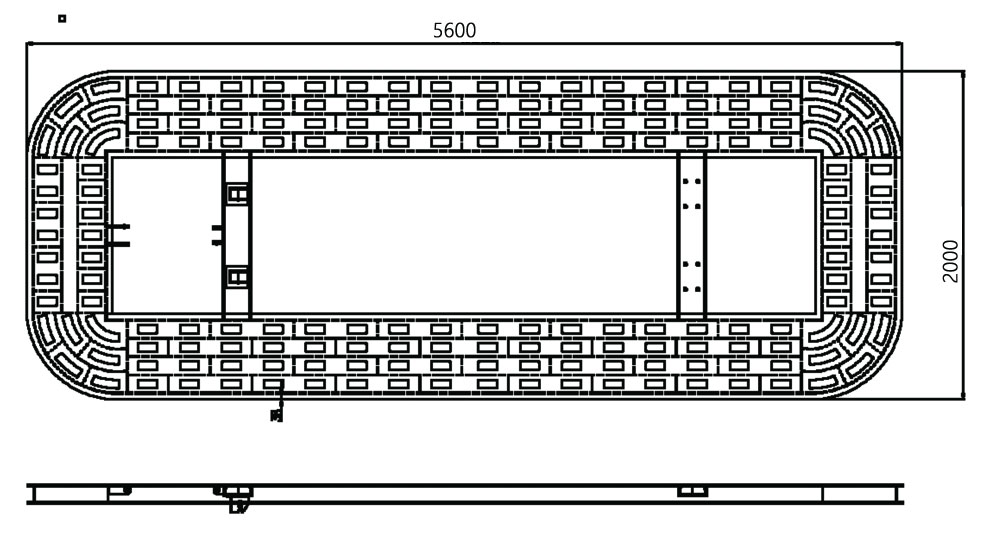

Platform Length:	5600mm
Platform Width	2000mm
Platform Height	520mm
Pnenmatic pressure range	0.8mpa
Post Max. Tension:	95KN
Post Working range:	360°

Advantages

European style frame machine

Car Frame Machine

Portable Frame Machine

Truck Frame Machine

WIN GLITTER car frame machine is the most efficient systems for vehicle body repair. Different types can be customized according to the habits of the operator. The tower can orbit the platform in 360 degrees. there are four vise masters fixed the body firmly.Work efficiency will be ten times higher if you use it.

the accurate price is determined by several factors, like the bench length, tower quantity, raw materials type, and the current cost of raw materials.

Please feel free to contact us, we will offer you a accurate price!!
