YCLX3 High quality CE Approved spray bake paint booth for sale

Short Description:

Send email to us

Product Detail

Product Tags

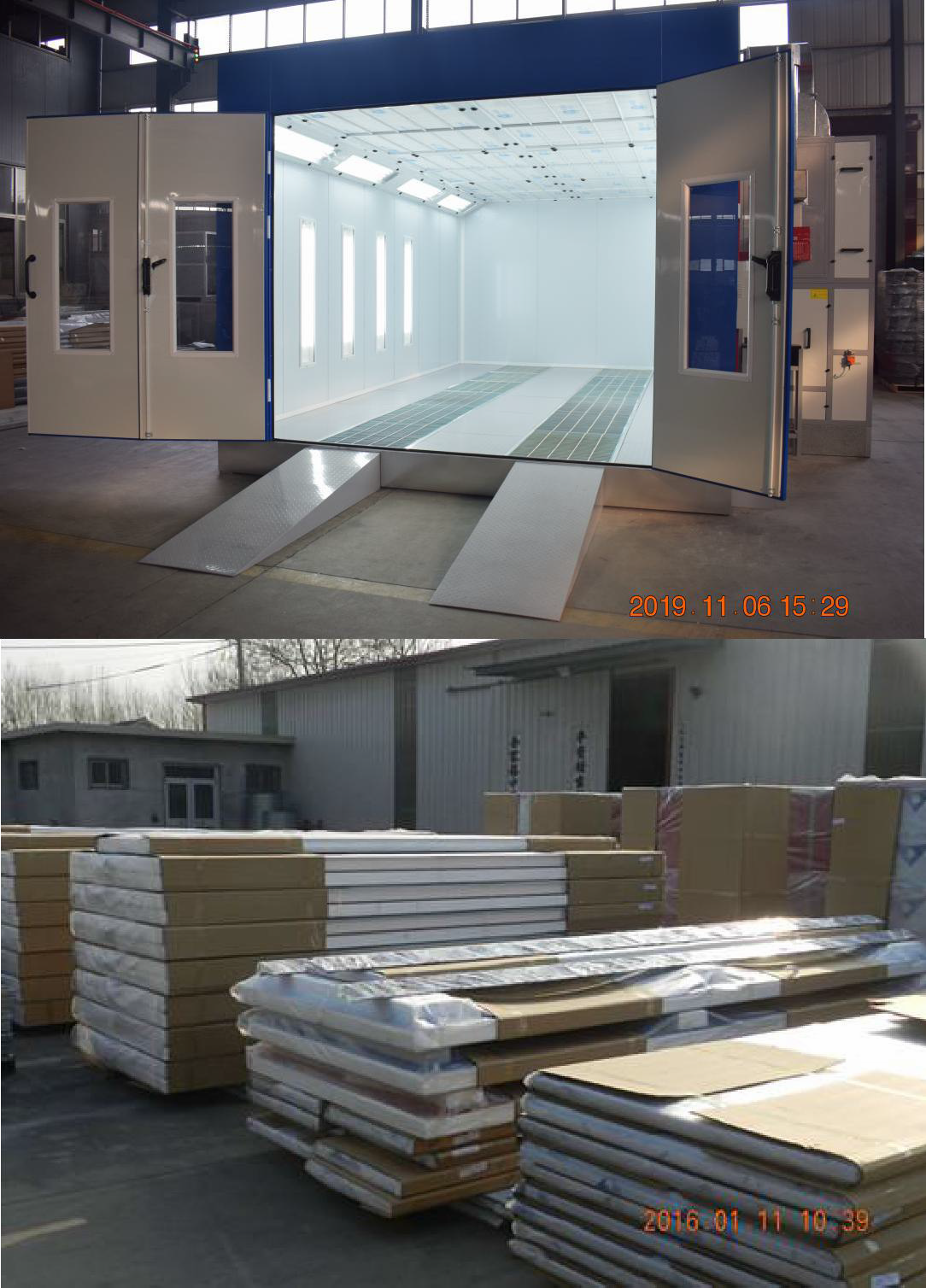

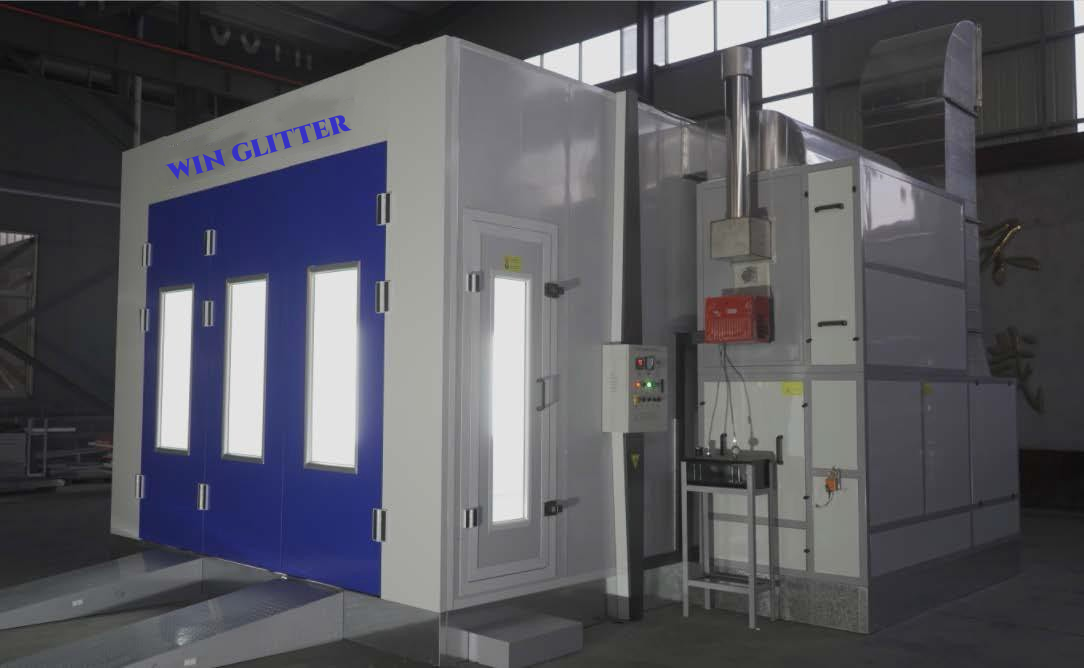

Introduction of Car Spray Booth

Our main products are Spray booths, prep station booths, car lift, car frame machine, baking oven, powder painting equipment, painting lines, grinding tables, and large centralized dust collection equipment etc.

All the products have passed international certifications such as CE and ISO as weel as national utility model patent certificate.

Win Glitter also devotes herself to supplying auto body repair equipment with one-stop, aiming to provides the best service to our domestic and overseas customers

1. guarantee: 1 year and lifelong maintenance

2. installation: with installation drawing or video and manual

3. function: spraying and baking for car, truck, wooden door,table

TECHNICAL SPECIFICATIONS

Inside Dimension	6900×3900×2600mm(L×W×H)
Outside Dimension	7000×5200×3300mm(L×W×H)
Main Door(W×H)	3 folds door , 3000×2500mm ,it is bending steel without cover frame. This type is very strong and beautiful . Also equipped with Handle & Lock.
Personal Door	1fold ,650×2000mm(W×H). Equipped with Handle & Anti-Explosion Lock .
Wall Panels	-High quality double construction insulation EPS panel, thickness: 50mm. -Galvanized steel roof panel .
Basement and Floor	- Galvanized steel assemble,Full metal foundation, height is 280mm . - Two rows flat steel Grilles (galvanized) - Three rows metal non-slip Diamond plates (galvanized and painted.) . - 2 pieces of Ramps, each size 620×2000mm (W×L),diamond plate construction.
Lighting System	-LED Ceiling lights:8 units×4pieces =32pieces ×16W. -LED Side lights: 6 units × 2 pieces =12pieces ×16W.
Generator Setting Type	-Side upper intake air, quadrate steel frame, coated steel ,inside rock-wool insulation. -Pneumatic damper actuates from the spraying to baking cycle.
Inlet Fan	2×3KW YDW double-intake centrifugal fans, total air capacity: 21000m³/h.
Exhaust Fan	1×5.5KW YDW double-intake centrifugal fans, total air capacity:15000m³/h.
Heating System	-1set : RIELLO G10 diesel burner, heating productivity: 100000 Kcal/h, -Adopt high efficient heat-resistant stainless steel as cycling heat exchanger. -Max baking temperature is 80° C.
Filter System	-The primary filter -Ceiling filter -Floor filter.
Control System	Lighting switch, spraying , heat spraying , baking , temperature controller, time setting, emergency stop .
Total Power	12KW (380V ,50HZ ,3 Phase )
