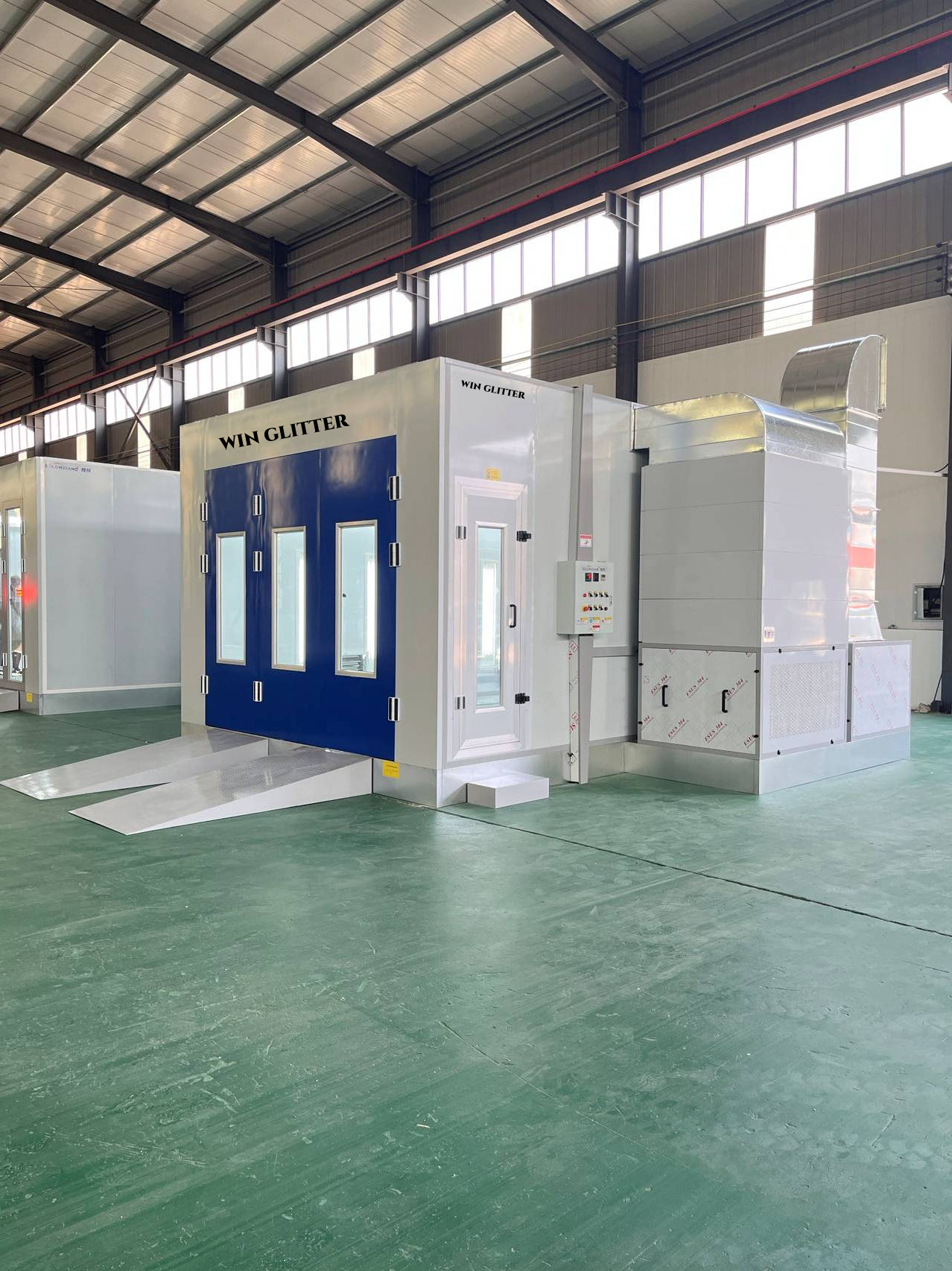

Introduction of Car Spray Booth

Our main products are Spray booths, prep station booths, car lift, car frame machine, baking oven, powder painting equipment, painting lines, grinding tables, and large centralized dust collection equipment etc.

All the products have passed international certifications such as CE and ISO as weel as national utility model patent certificate.

Win Glitter also devotes herself to supplying auto body repair equipment with one-stop, aiming to provides the best service to our domestic and overseas customers

1. guarantee: 1 year and lifelong maintenance

2. installation: with installation drawing or video and manual

3. function: spraying and baking for car, truck, wooden door,table

TECHNICAL SPECIFICATIONS

YCLX-D3
Outside size	7000×5200×3400mm(L×W×H)
Inside size	6900×3900×2650mm(L×W×H)

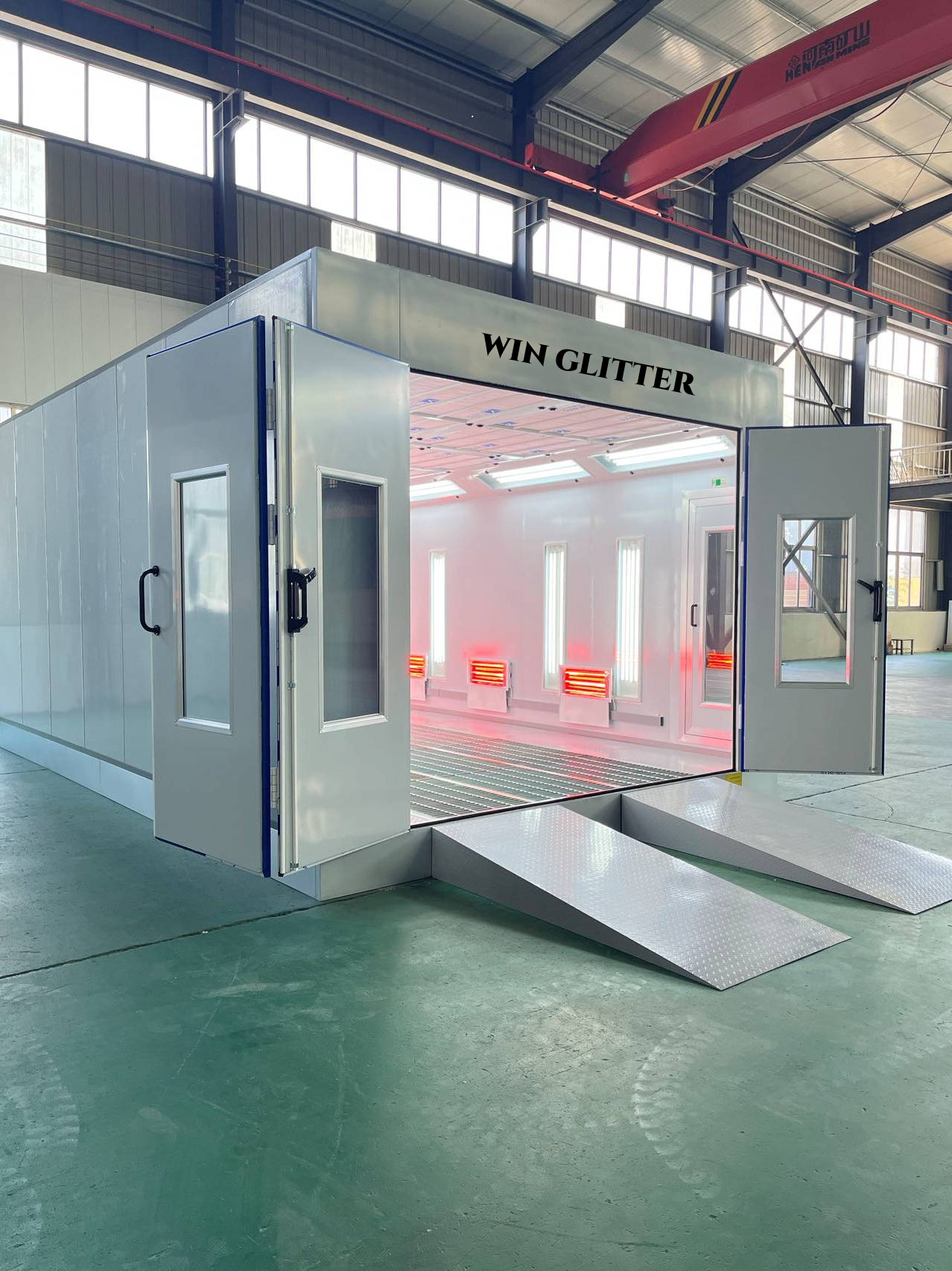

Entrance door	3 folds，3000x2600 mm(W×H), bending steel door .
Emergency door	6502000mm(WH),equipped with handle lock

Main System
Cabin system	Wall panel	-Sandwich style EPS 50mm,0.4mm thick steel, anti-flame and heat-insulation.-High quality galvanized steel roof panel.
Cabin system	Basement	-Galvanized steel assemble,280mm high,with steel structure support,3 rows of 304mm grills ,2 rows of diamond plates.-2 ramps,external setting,6202000mm(W*L)/pc
Ventilation system	Inlet fan	2*3kw double-intake centrifugal fans, Each set air capacity:10000m³/h
	Outlet fan	1*5.5kw double-intake centrifugal fans, Each set air capacity:15000m³/h
	Cabinet setting type	-Intake air from side upper ,adopt powder quadrate steel frame , strong and beautiful.-Cabinet for the fan1unit ,air duct2units. -Elbow:90°*1 unit.

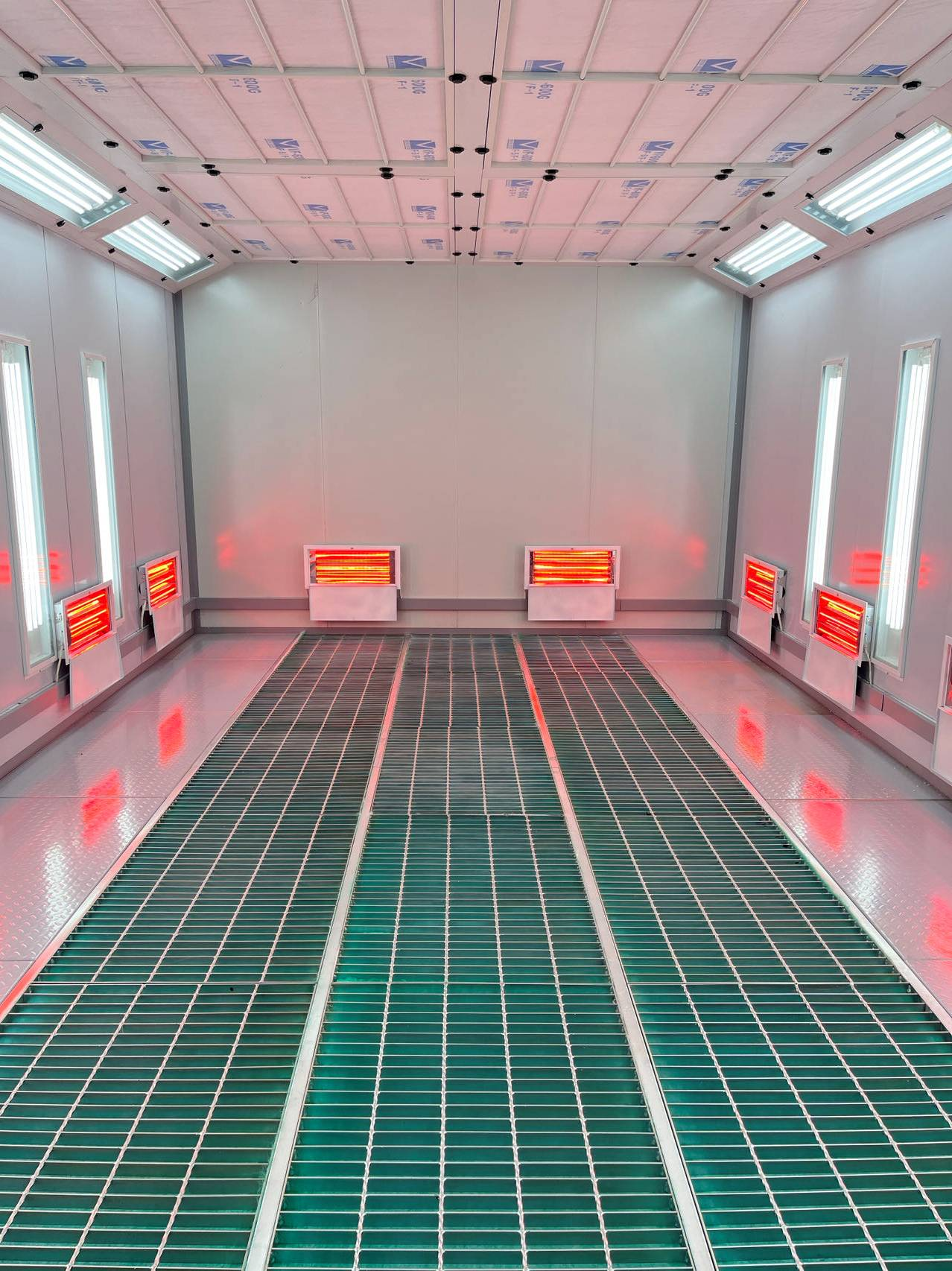

Heating system	Electric	Adopt infrared heating system, 10 sets of 3KW single door far-infrared lamp. Maximum operating temperature: 80℃, heating rate (20-80℃) : 15-20min.
Lighting system	Ceiling lights	8units4pieces16w LED Lighting
Lighting system	Side lights	5units2pieces16w LED Lighting
Filtering system	Primary filter	Grade G2 plate type , filtering rate＞83%
	Ceiling filter	EU5 grade high efficient filter,filtering rate＞98%
	Floor filter	Multi-layer fiberglass filter,filtering rate＞70%
Control system	Control panel
Control system	Function	Lighting, temperature time setting, painting, constant temperature painting, baking,emergency stop, failure indication, etc
Total power	42 KW
Voltage/frequency	380V,50HZ,3phase
