YC-LZW-A-2140 Two post lift (One side muanual release)

Short Description:

Note: According to user requirements for different voltage and frequency product (specific parameters see the equioment signs)

(Optional color) Manual Lock Release 2 Post Car Lift

Send email to us

Product Detail

Product Tags

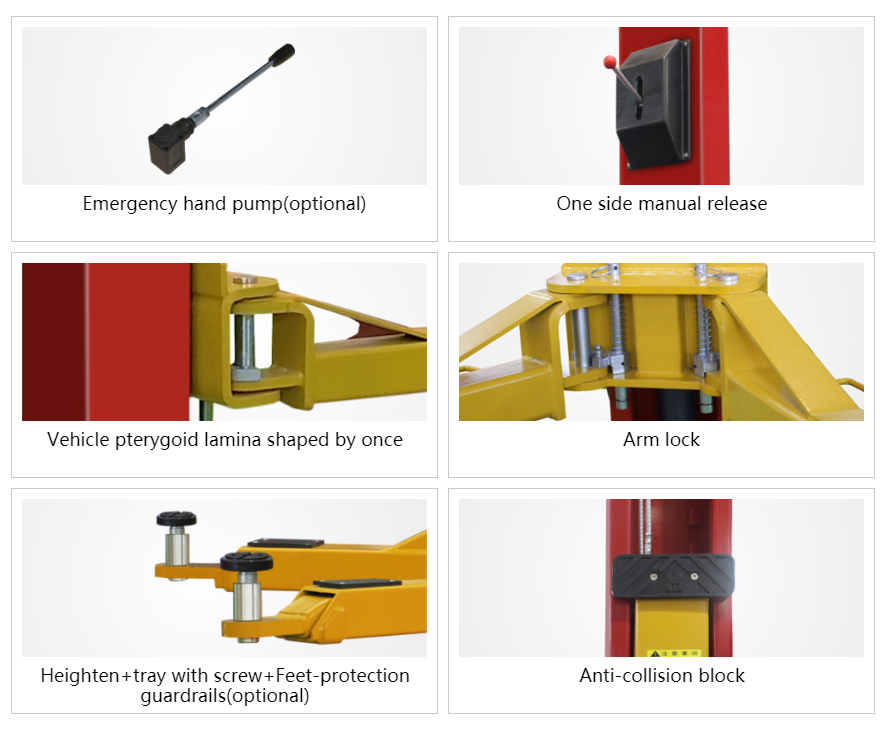

Characteristics

1.Floor design suitable for the bottom not high in the auto repair.
2.Adopt double cylinder, 4x4 higher and stronger chain, the wire rope balance system.
3.One side manual release.
4.Rubber pad door-opening protection.
5.Secure fence protect the toes.
6.Rubber support pad adopts double helix adjustment height and height increase joint.
7.Limit switch.
8.The arm adopts two stages or three stages design, larger range adjustment, suitable for different vehicle chassis, three-node arm optional installation.

Technical Specification

Lifting Capacity	4000kg
Lifting Height	1850mm
Min. Height	120mm
Pass Width	2500mm
Column Width	2790mm
Total Width	3220mm
Lifting Time	50s-60s
Motor Power	2.2kw-380v or 2.2kw-220v
Oil Pressure Rating	24MPa
Weight	590kg

Our Service

WIN GLITTER focus on the car garage machines and tools.
Our products are mainly used in 4S shops, garages, workshops, repair factories, and so on.

Our products: Wheel alignment, two post lift, four post lift, alignment scissor lift, mid-rise scissor lift, tire changer, wheel balancer, car frame machine, wheel alignment and other garage equipments and tools.

One stop supply solution for garage equipment business. We have achieved successful business cooperation with customers from more than 40 countries and regions.

We are pround to be a customer-oriented organization, and are committed to technological innovation and people first management principle. We sincerely welcome you to join us to bring customer satisfaction to the highest level.

We offer 1 year warranty service for machine and 18 months for motor
Our factory offer customized services.
CE certificated

Payment terms

By T/T,30% deposit payment after placing order, 70% balance payment should be done before shipment.
Delivery time: within 35 days after receiving 30% deposit
