YC-LZL-A-2240 Clear floor lift (one side munual release)

Short Description:

Note: According to user requirements for different voltage and frequency product (specific parameters see the equioment signs)

(Optional color) Manual Lock Release 2 Post Car Lift

Send email to us

Product Detail

Product Tags

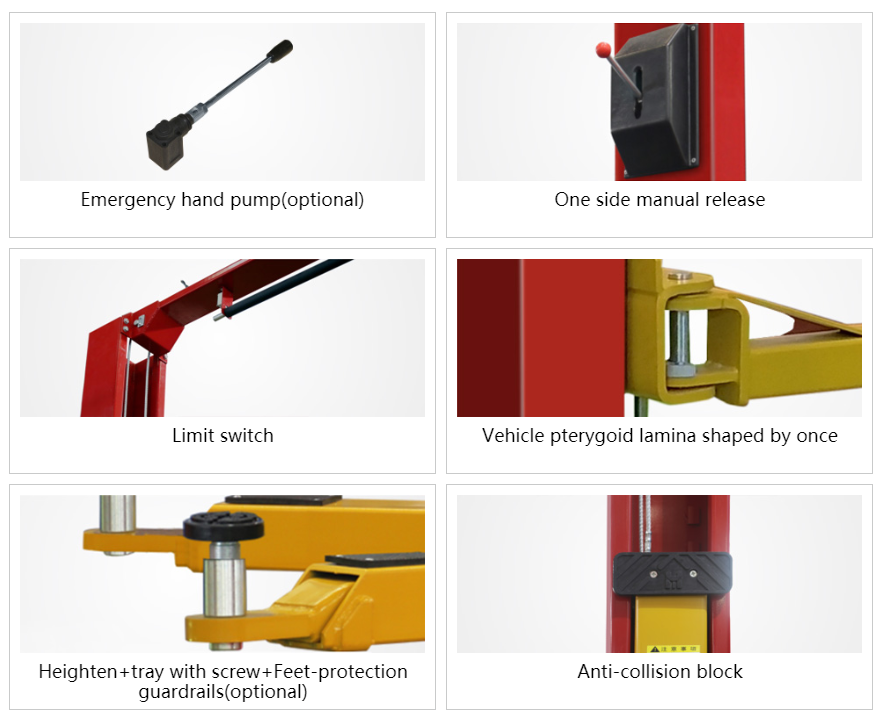

Characteristics

1.Clear floor design, save space.
2.Adopt double cylinder, 4x4 higher and stronger chain, the wire rope balance system.
3.One side manual release.
4.Rubber pad door-opening protection.
5.Secure fence protect the toes.
6.Rubber support pad adopts double helix adjustment height and height increase joint.
7.Limit switch.
8.The arm adopts two stages or three stages design, larger range adjustment, suitable for different vehicle chassis, three-node arm optional installation.
9. CE Certificated

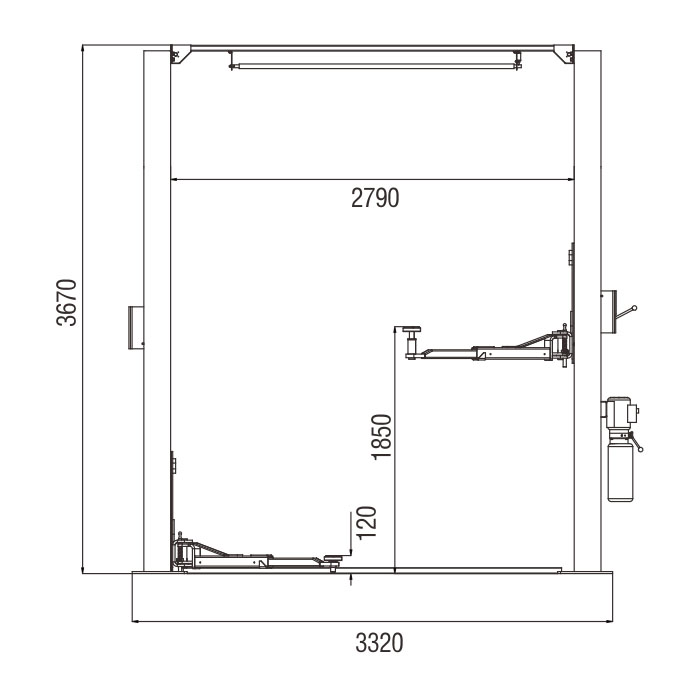

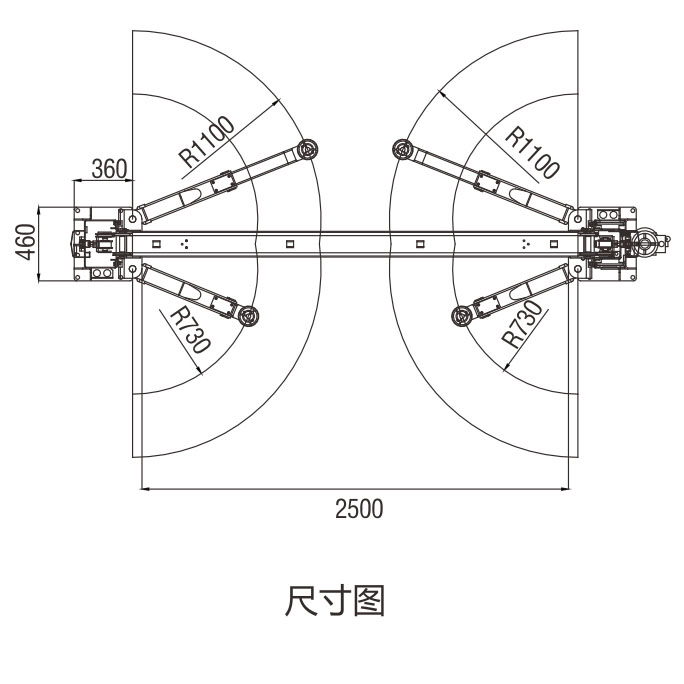

Technical Specification

Lifting Capacity	4000kg
Lifting Height	1850mm
Min. Height	120mm
Pass Width	2500mm
Column Width	2790mm
Total Width	3320mm
Lifting Time	50s-60s
Motor Power	2.2kw-380v or 2.2kw-220v
Oil Pressure Rating	24MPa
Weight	650kg

description

Introducing the Clear Floor Lift, the ideal solution for your auto repair needs. This cutting-edge auto repair car lift is the perfect addition to your garage or auto repair shop. Designed with the latest technology, the Clear Floor Lift is a must-have for any auto repair enthusiast or professional.

With its clear floor design, this lift offers easy access to the underside of your vehicle, making repairs a breeze. No more struggling for space - the Clear Floor Lift will elevate your car or truck to the perfect working height, giving you maximum access to all areas of the vehicle.

In addition to its clear floor design, the Clear Floor Lift also boasts a robust set of auto repair features. With powerful hydraulic technology built in, this lift can easily handle even the heaviest of loads. Whether you're working on large trucks or small cars, the Clear Floor Lift is up to the challenge.
