YC-JSD-D-8540 In-ground pully scissor lift

Short Description:

Note: According to user requirements for different voltage and frequency product (specific parameters see the equioment signs)

(Optional color)Manual Lock Release 2 Post Car Lift


Product Detail

Product Tags

Characteristics

1.Hydraulic synchronous control, synchronization precision.
2.The hydraulic system adopts Italy electromagnetic valve and imports of seal, ensure the stability and service life of the machine.
3.This machine is composed of a machine frame, hydraulic system, pneumatic system and electric system is composed of four parts.
4.Can be matched with various locating turntable .
5.Oil cylinder with upper return oil, prevent oil cylinder rust.
6. CE Certificated

Technical Specification

Lifting Capacity 4000kg
Lifting Height (Main) 1700mm (Jack) 450mm
Min. Height 340mm
Lifting Time 50s-60s
Length Of The Platform 44800mm
Platform Width 600mm
Motor Power 3.0kw-380v or 3.0kW-220v
Oil Pressure Rating 24MPa
Air Pressure 0.6-0.8MPa
Weight 1900kg
Packaging 4200*650*760mm
4200*650*760mm
1000*630*130mm
2100*200*100mm
970*120*320mm (cart)
1100*360*490mm Total 6 packaging

Our Products

We also have :
In-Ground Scissor lift 3000kg / 4000kg
Portable Mid rise scissor lift 3500kgs
Portable Scissor Lift 2800KGS
Ultra-thin Scissor Lift

Advantages

One of the benefits of our Car Scissor Lift is that it is very compact and easy to store when not in use. It takes up minimal space and can be moved around with ease using the built-in wheels. This means that it is ideal for those who have limited space in their garage or workshop.

Our Car Scissor Lift is also very safe to use, with a number of safety features built-in. The lift has a locking mechanism that keeps the vehicle securely in place while you work on it. It also has an automatic safety lock that engages if the lift begins to descend unexpectedly. This ensures that the lift will not collapse or move while you are working on it, giving you peace of mind and ensuring your safety.

In addition to being easy to use and safe, our Car Scissor Lift is also very versatile. It can be used with a variety of different vehicles, from small sedans to SUVs and light trucks. This makes it an ideal tool for anyone who needs to do regular maintenance or repairs on their vehicle.

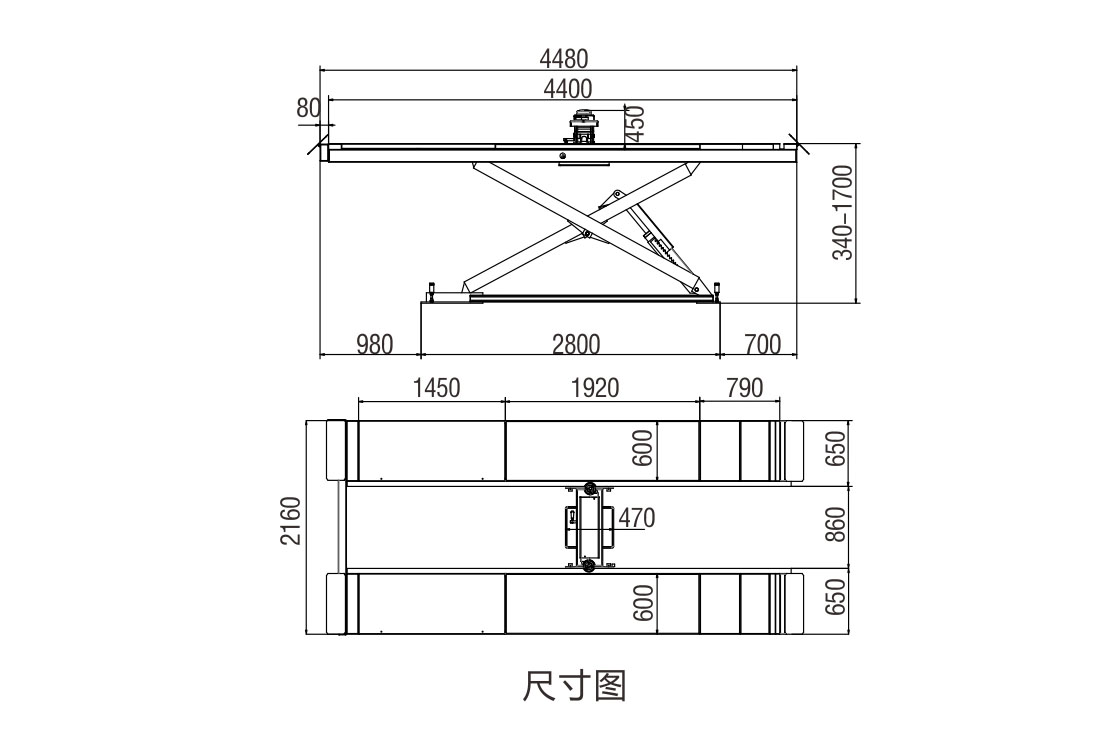

Detailed Drawing

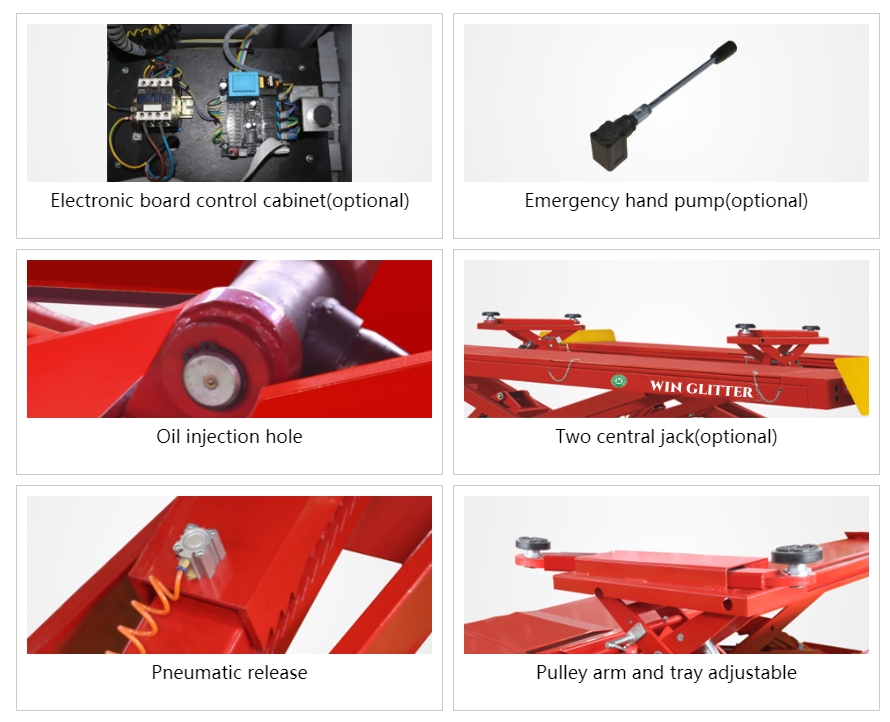

hydraulic scissor lift (2)

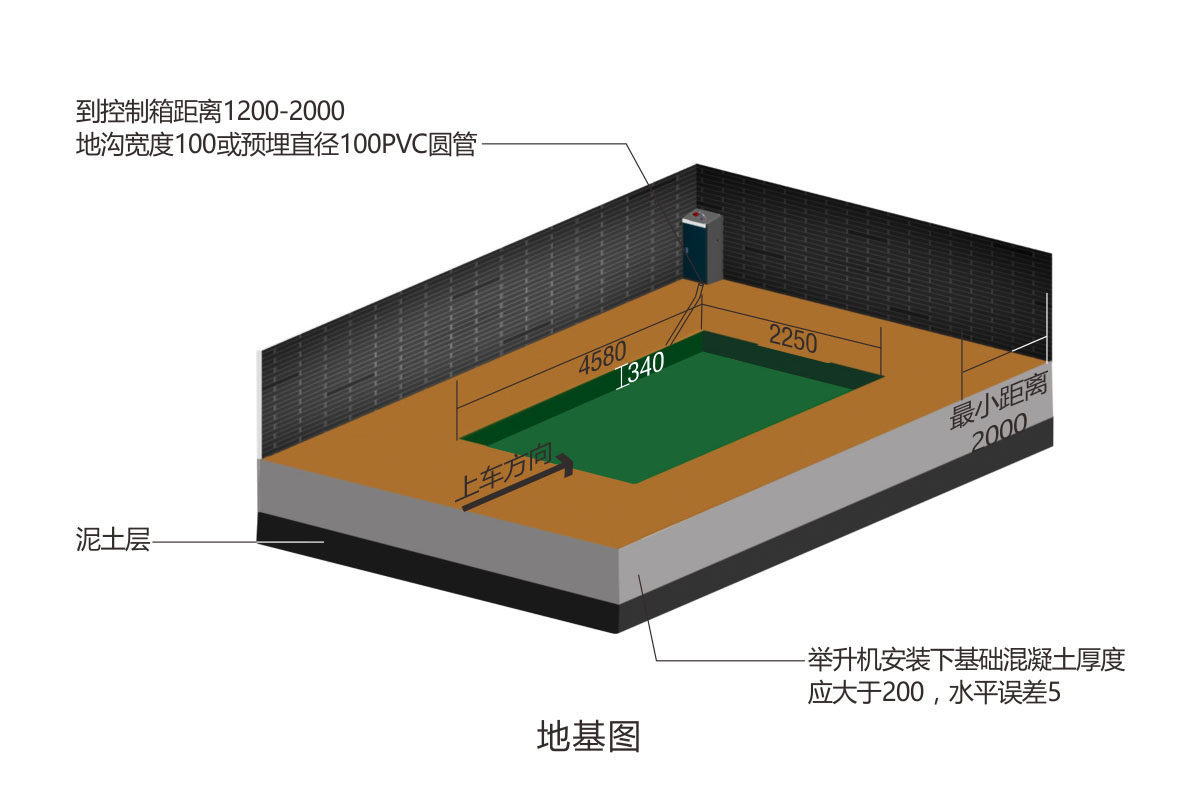

YC-JSD-D-8540 (1)
YC-JSD-D-8540 (2)
