Y-T072 Shortwave paint curing lamp Infrared heating dryer lamp infrared heater for car paint

Short Description:


Product Detail

Product Tags

Introduction of Infrared curing lamps for car

1.  Shortwave infrared paint lamp is introduces the European advanced paint technology research and development of efficient paint baking equipment. Can meet the polyurethane paint (two-component paint) thermal strong penetration of high requirements.

2.  Shortwave infrared light group has high luminous rate and strong penetration, which can be directly into the paint layer and addits molecular chemical reaction.  The two-component paint only needs 15 minutes, and puash only needs 5 minutes to dry thoroughly.

3.  Powerful direct penetration into the inner paint layer.complete drying of two component paints within 15 minutes and polyester putty 5 minutes. Pre-heat and full baking fuction to achieve gradual temperature increase.

4.  Advance paint curing technology,switch ,CE/UL certified,high quality and stable performance,memory function,users can set and store 4 frequencytly used programs

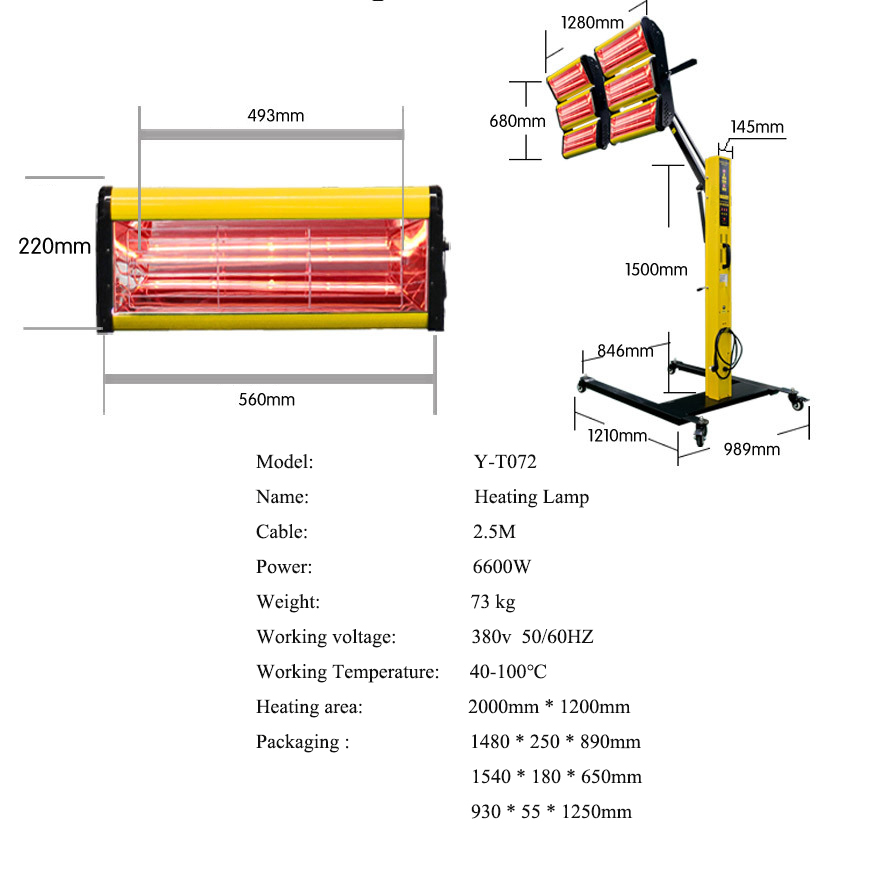

TECHNICAL SPECIFICATIONS

Model

Y-T072

Name

car paint infrared curing lamp heater auto detailing equipment shortwave infrared paint dryer

Power supply

380V  50/60HZ

Rated power

6 X1100W

Tube light source

Halogen short-wave infrared

Cable

2.5M

Output temperature

40-100°C

Baking area

2000X1200mm

Gross Weight

 73kg

Color

Yellow

Packing

 Carton

Packaging size

1480*250*890mm

1540*180*650mm

930*55*1250mm

Detailed Drawing

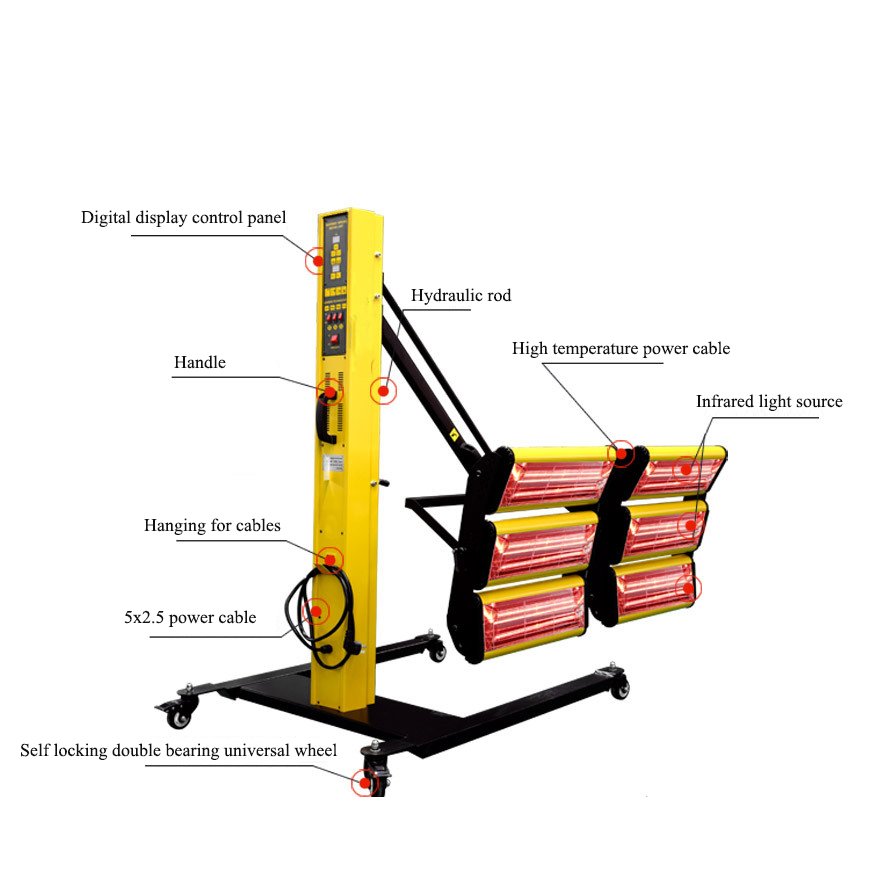

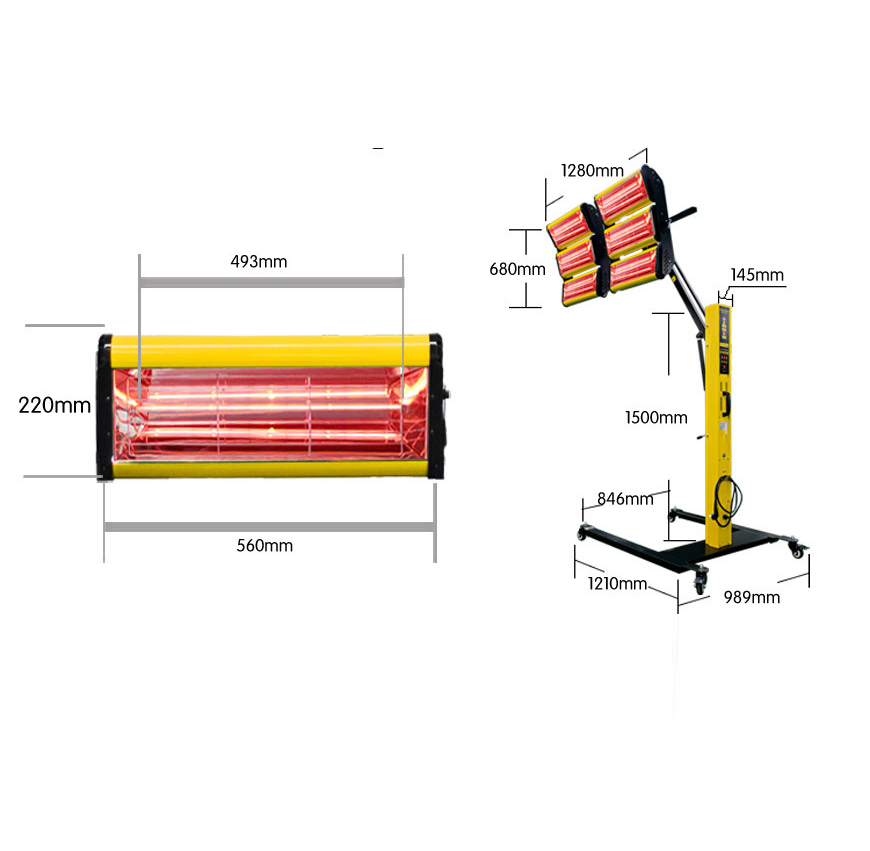

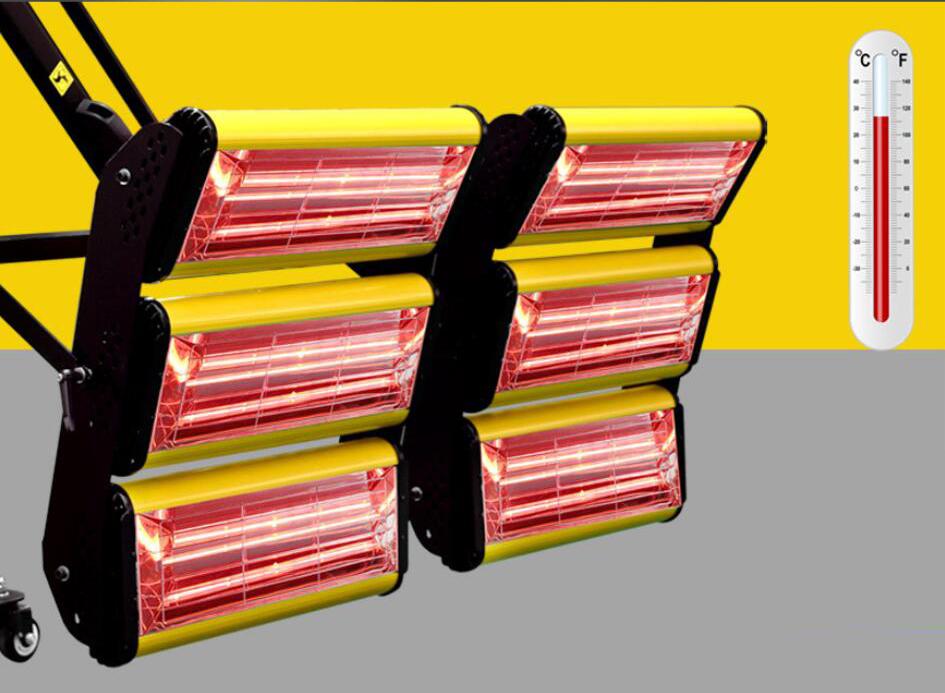

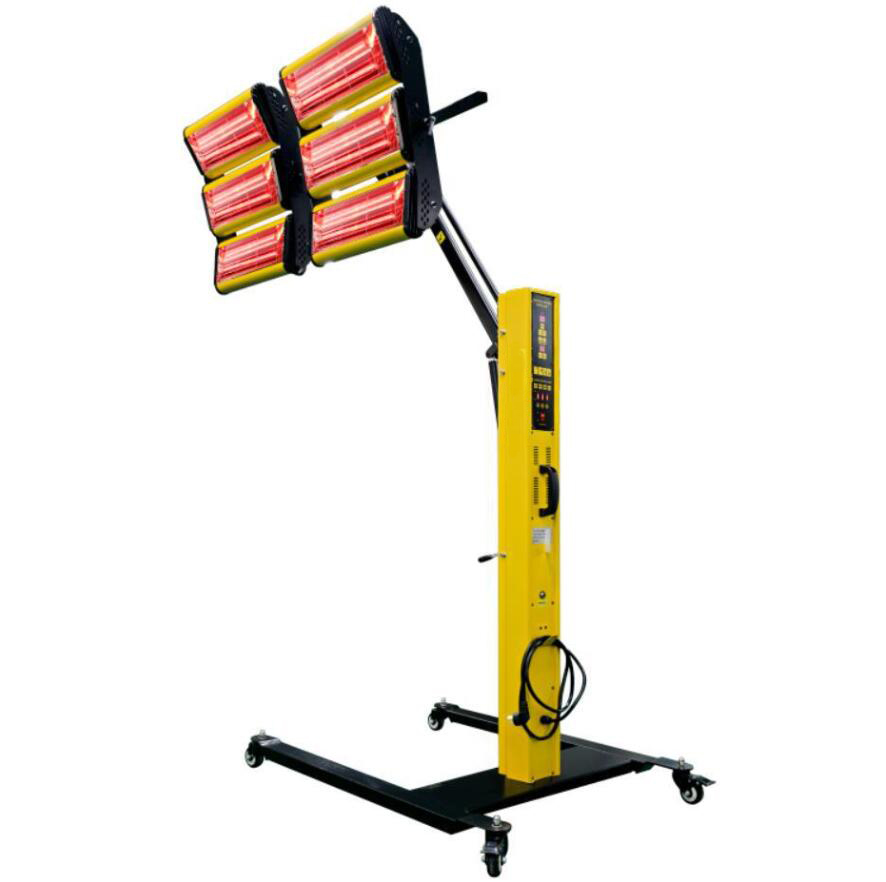

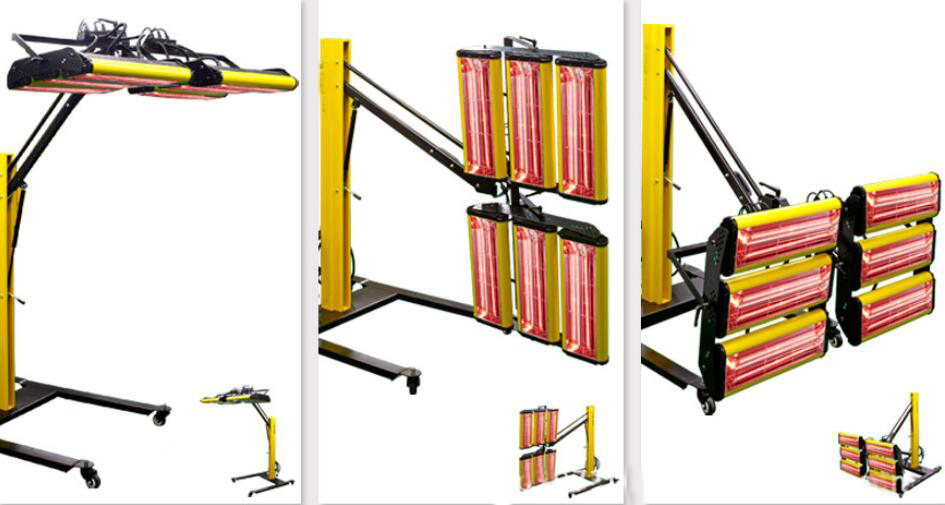

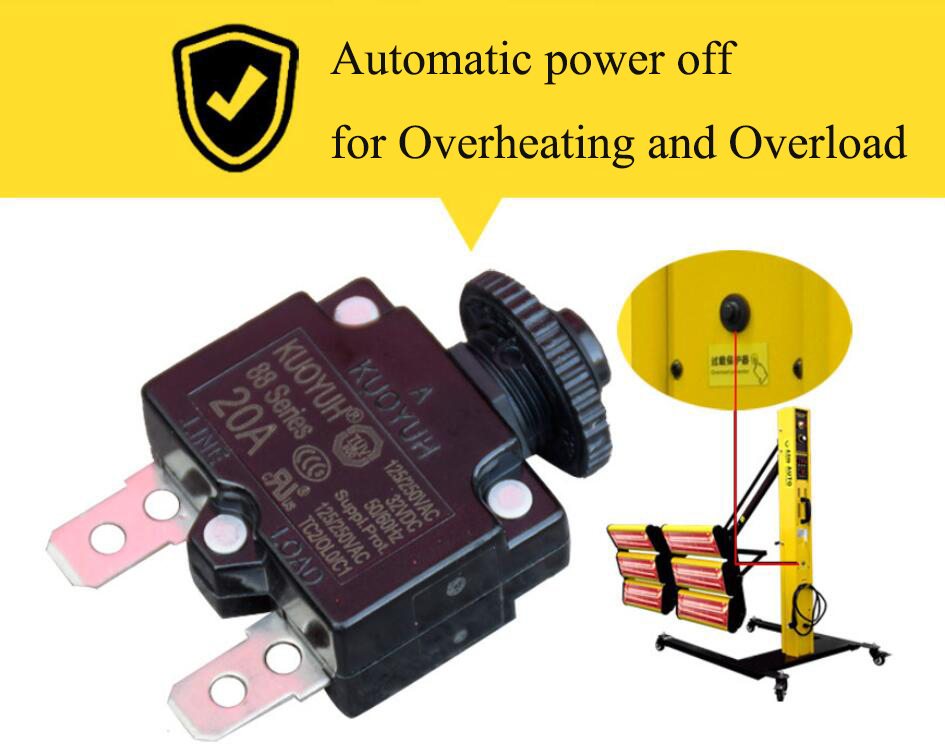

infrared heat lamps (7) infrared heat lamps (9) infrared heat lamps (10) infrared heat lamps (11) infrared heat lamps (12) infrared heat lamps (14) infrared heat lamps (17)
