Y-T070 Car baking infrared heat lamps for paint drying

Short Description:


Product Detail

Product Tags

CHARACTERISTICS

1. Using German technology and high-quality identified by the international special light source laboratory IRA infrared shortwave heating tubes (Osram, gold-plated lamp optional), over 8000 hours of lamp life.

2. Using special processing imported 304 stainless steel reflector plates on both sides of the plug of die cast aluminum die-casting (anti-high temperature, anti-distortion).

3. Automatic Computer control panel with digital display electronic timer, the figures show that the percentage of power, pulse function, snorkels, light body can rotate 360°, can be controlled independently of each set of lights, safety overload protection.

TECHNICAL SPECIFICATIONS

Model

Y-T070

Power supply

220V-240V 50/60HZ

Rated power

2 X1100W

Tube light source

Halogen short-wave infrared

Cable

3 cores, 2 squares

Height adjust

0.2-2.1m

Work current

8.3A

Output temperature

40-100°C

Baking area

800X800mm

Time adjust

0-60min

Working distance

0.5-0.7m

Packaging Size

74*64*2CM

153*6*6CM

Gross Weight

 25kg

Color

Yellow

Packing

 Carton

Feature

1.The longest lift of 6000 hours

2.Timing control power switch

3.All-round protect your car

4.Good heat dissipation

Detailed Drawing

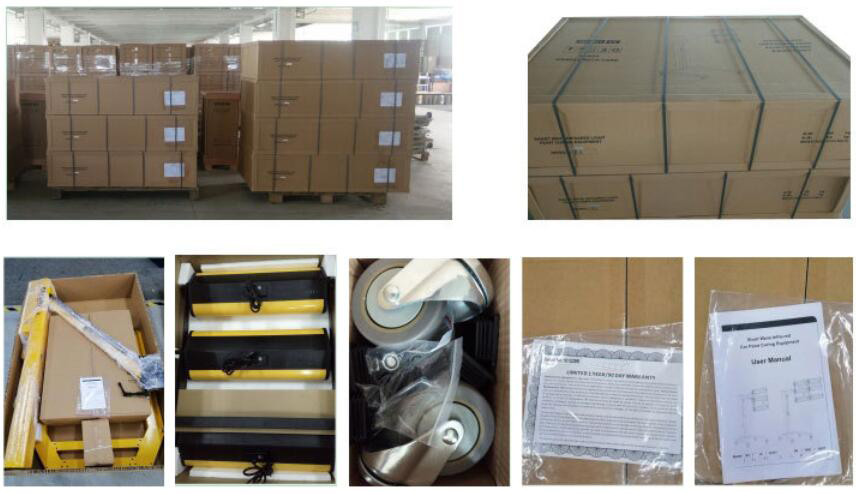

packaging
