Y-T069 Infrared Paint Drying Lamps Car Paints Baking Lamps infrared curing lamps for car painting

Short Description:


Product Detail

Product Tags

CHARACTERISTICS

IRA short-wave infrared heating tube has a service life of more than 8000 hours. Itadopts a special treatment imported 304 stanless steel material reflector. The plugs onboth sides are formed by die-casting aluminum at one time (anti-high temperature andanti-deformation). Use unique mechanized timer, humanized handle material andangle, high-quality aviation socket. It can be rotated up and down 360 degrees on thefixed frame, and can be moved up and down, up to the roof of the car, and can beremoved separately for use as a hand-held infrared lamp.

1. Using German technology and high-quality identified by the international special light source laboratory IRA infrared shortwave heating tubes (Osram, gold-plated lamp optional), over 8000hours of lamp life.

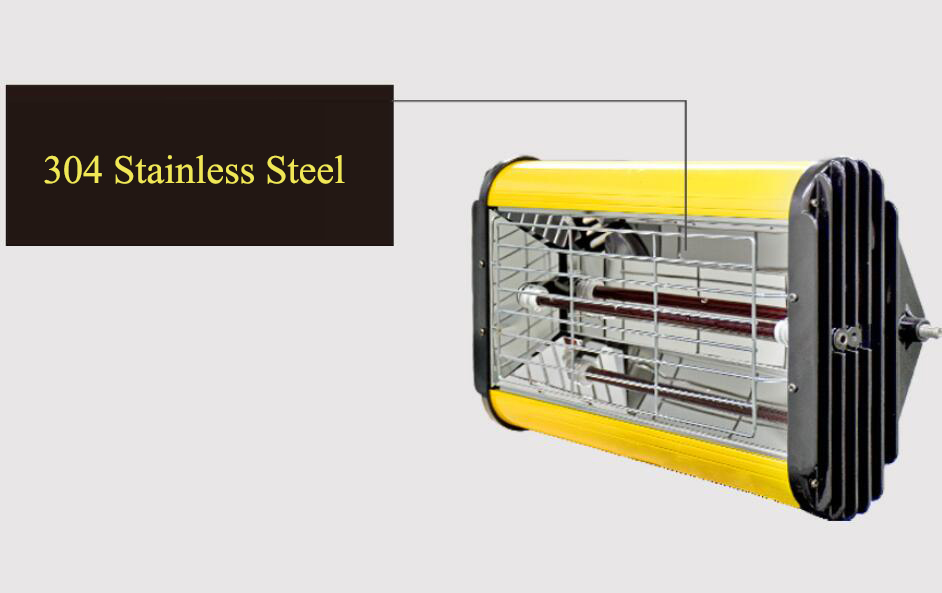

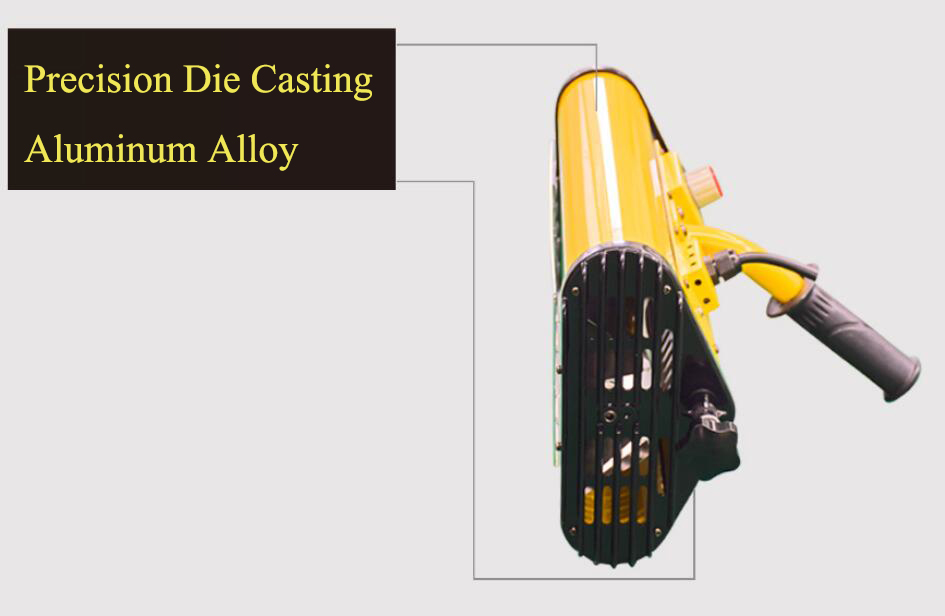

2. Using special processing imported 304 stainless steel reflector plates on both sides of the plug of die cast aluminum die-casting (anti-high temperature, anti-distortion).

3. Using a unique mechanization timer, and humane handle material and angle, high-quality aviation socket.

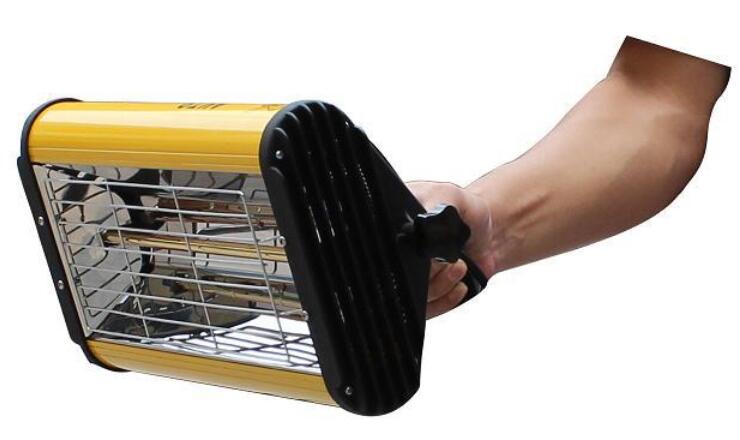

4. The holder can be rotated 360 ° up and down, you can move up and down, up to the roof, can alone remove the roast lamp with handheld.

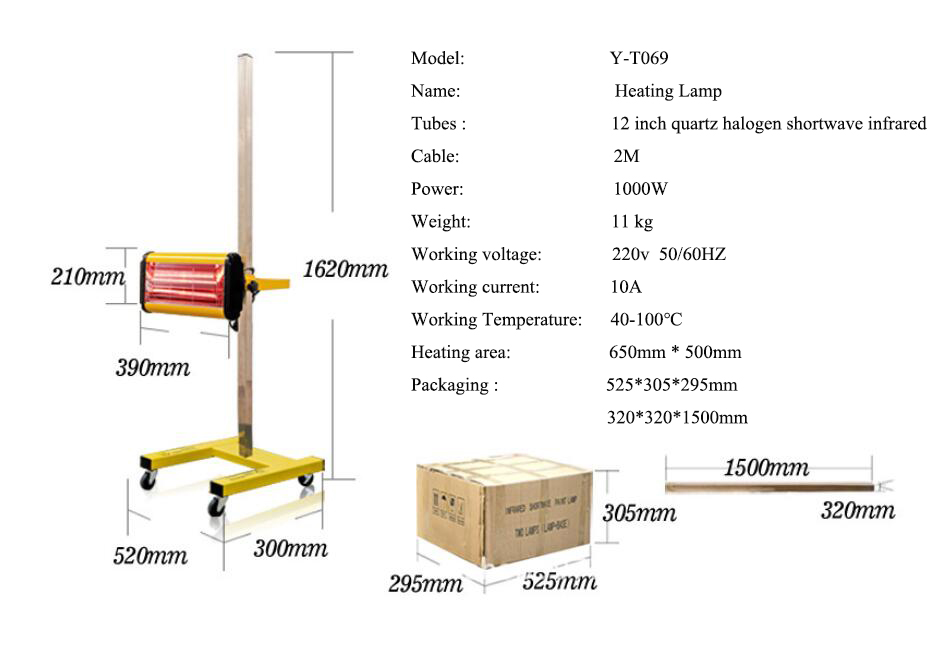

TECHNICAL SPECIFICATIONS

Model

Y-T069

Name

Heating Lamp

Tubes

12 inch quartz halogen shortwave infrared

Cable

2M

Power supply/Voltage

220V-240V 50/60HZ 1000W

Swith on the Power

1100W

Working current

10A

Working Temperature

40-100℃

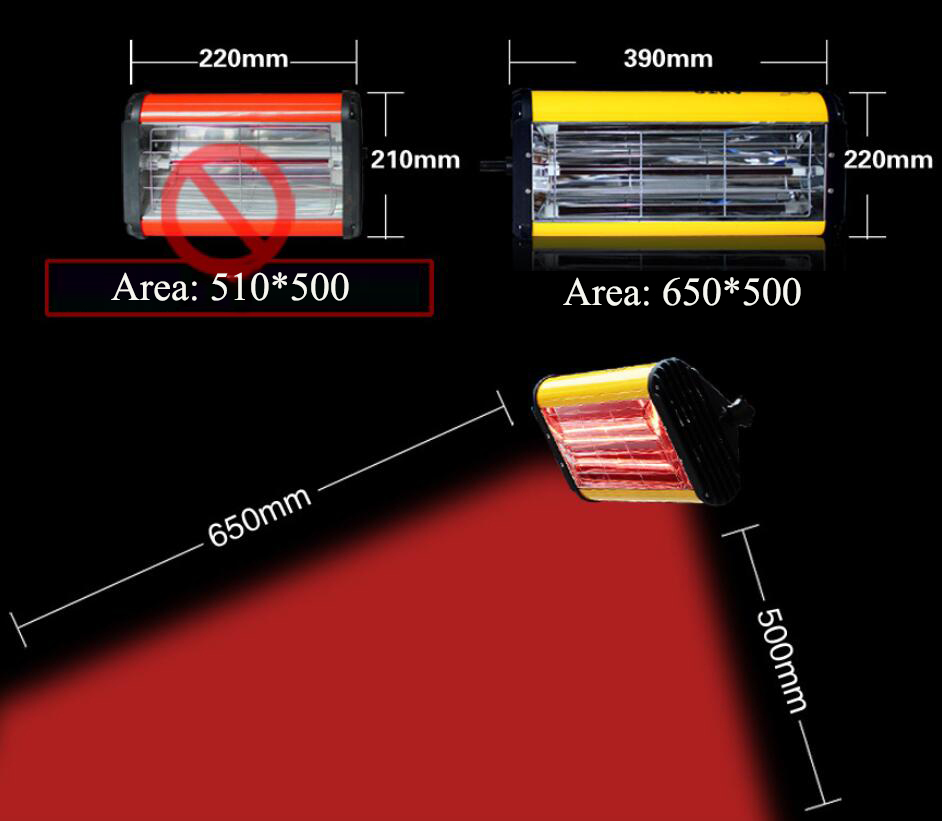

Baking area

650 x 500mm

Packing Specification

53cm x 47cm x 27cm

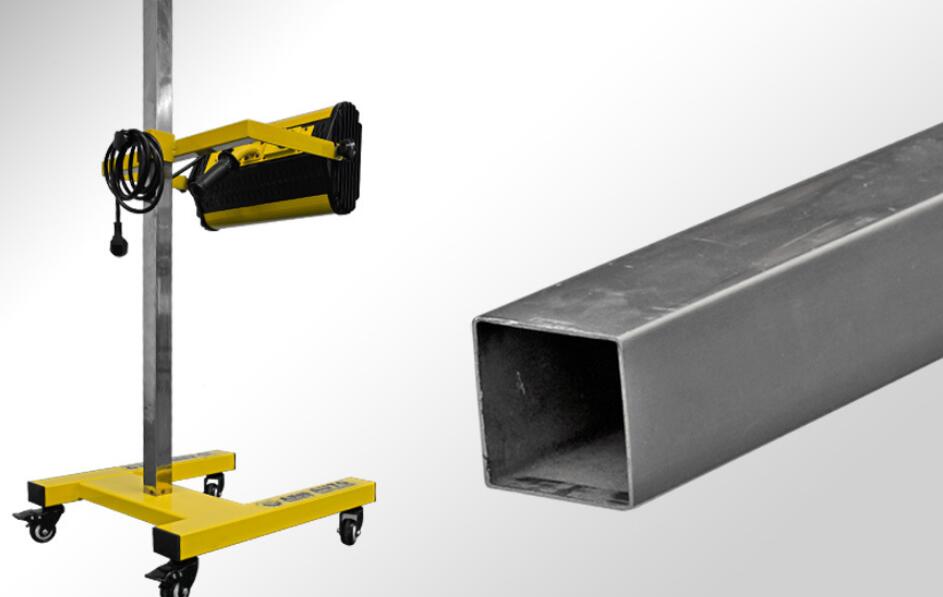

3.8cm x 3.8cm x 150cm

Product Weight

10.2kg+1kg=11.2kg

Detailed Drawing

infrared heat lamps (11) infrared heat lamps (12) infrared heat lamps (13) infrared heat lamps (14) infrared heat lamps (15) infrared heat lamps (20)
