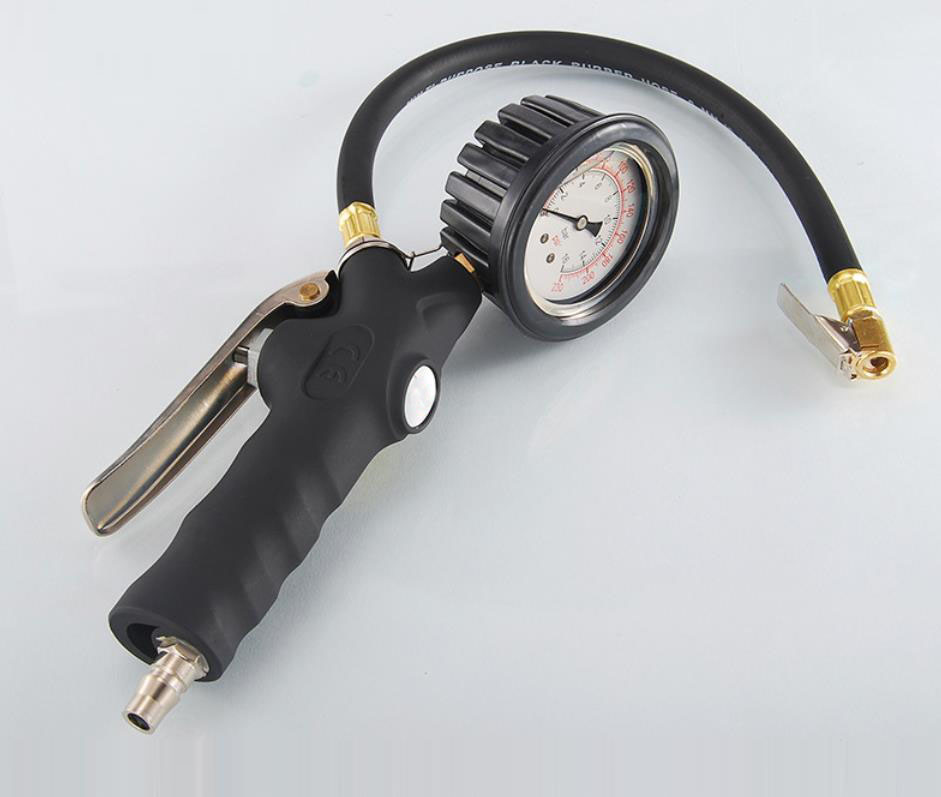

Y-T031 Professional Portable Oil Dial Tire Inflator with Pressure Gauge inflation gun inflating tyre

Short Description:


Product Detail

Product Tags

CHARACTERISTICS

*two pressure units

  • *Universal joint

  • *Comfortable anti-slip handle

  • *Accuracy ≤2.5%

TECHNICAL SPECIFICATIONS

Model  Y-T031
Applicable vehicle  Moto-bicycle,Van,Car,SUV,Bus,Trunk
Display mode  Silicone oil Barometers
Workingtemperature  -10~+55℃
Storagetemperature  -10~+65℃
Using  Air/Gas

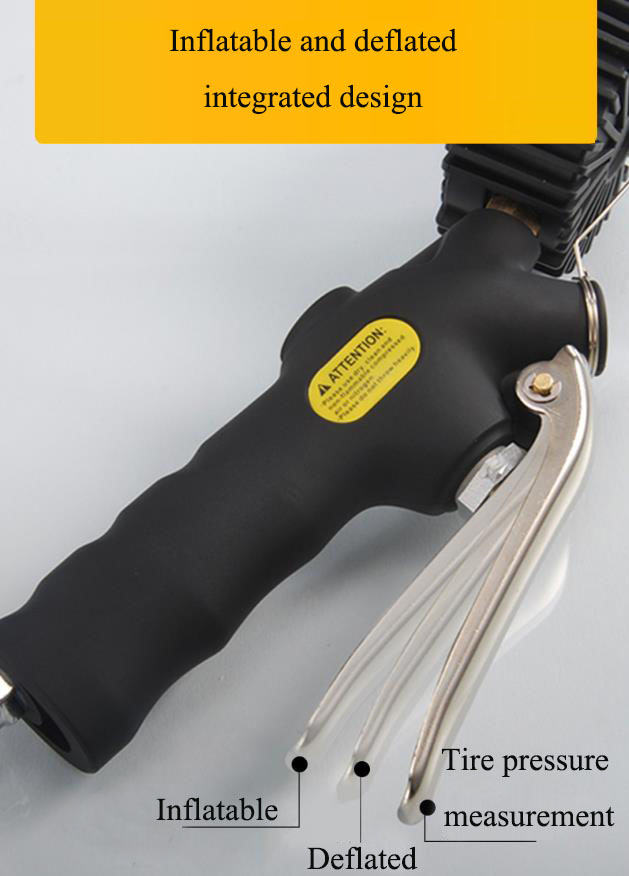

Function  Inflate
   Deflate
  Pressure gauge
   Psi Bar
Max inlet pressure Bar     18 Bar
  Psi     260 Psi

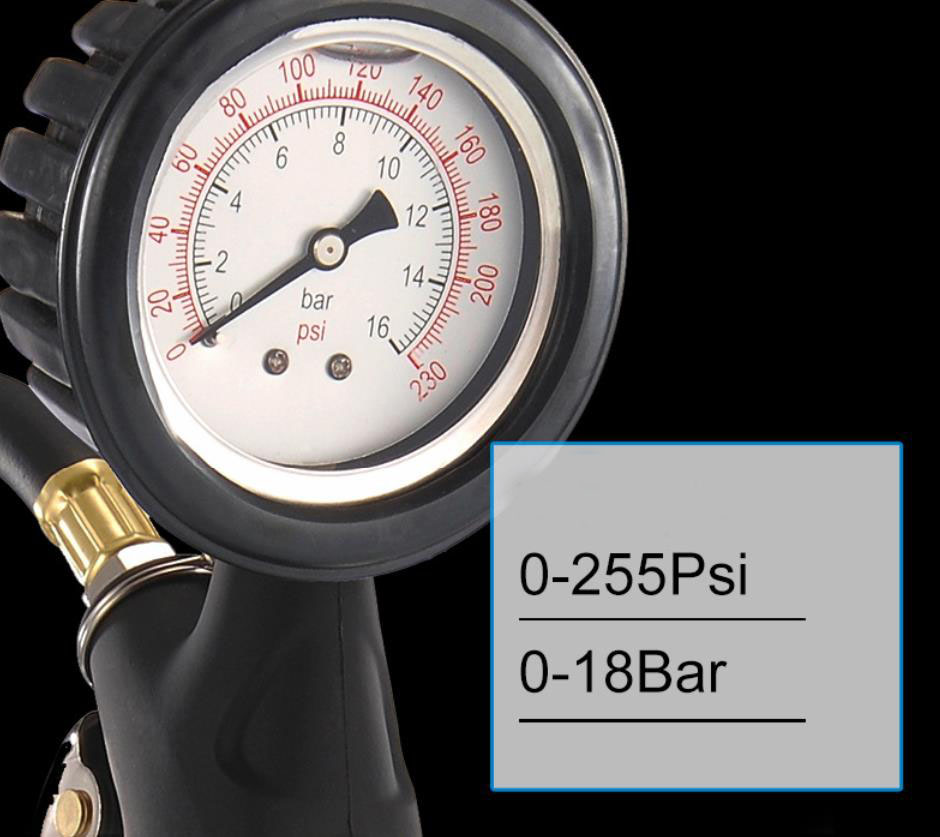

Gauage Measuring range Bar     0.0~16 Bar
  Psi     0.3~220Psi
Accuracy  ≤2.5%
Differentiation  3Psi/0.3Bar
Connect  G1/4"
Standard fittings:  High Precision Tire Inflation Gun
   400mm High pressure ruber hose (with air chuck)
  Air plugs
Packe size 288*127*96mm
Net weight  810g
Brand Win Glitter



Why need it?

The dangers of abnormal tyres

Low tire
Increased tire wear, easy to produce a flat tire, car fuel consumption increased
High Tire
The tire grip is lowered and worn quickly and the brake performance is reduced
Flat Tire
Continued driving will cause severe damage to the tire and wheel hub and may cause serious traffic accidents
Air imbalance
Driving and braking are prone to deviation and driving continues to cause traffic accidents

How to use it ?

  1. Equipped with batteries, adjusting pressure unit
  2. Connect air source and air pipe
  3. Connect to tire
  4. Inflatable / deflatable

Notes

For accuracy, check pressure when tires are cold. Pressure increases with heat. Tires can lose one pound per month under normal conditions. Proper tire pressure improves gas mileage, handling, braking and durability.

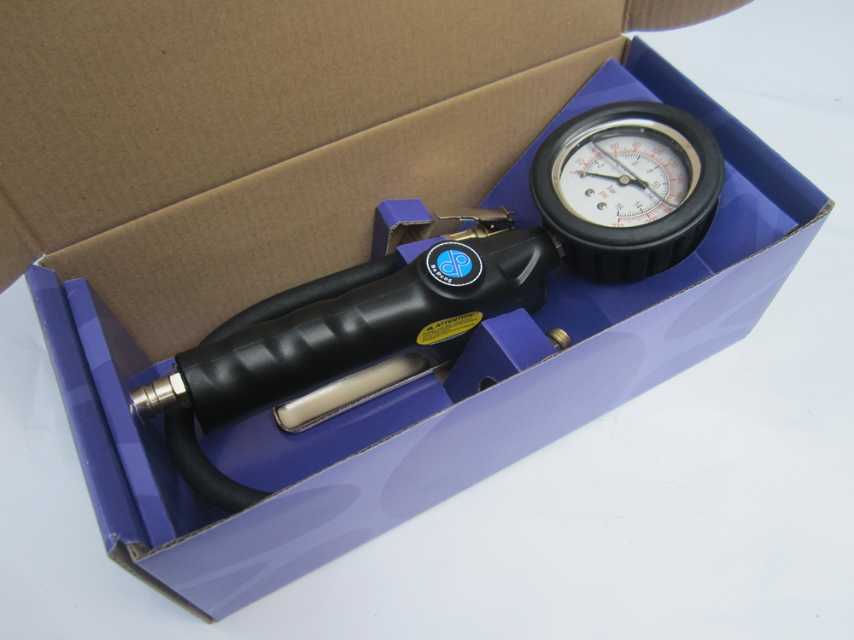

Detailed Drawing

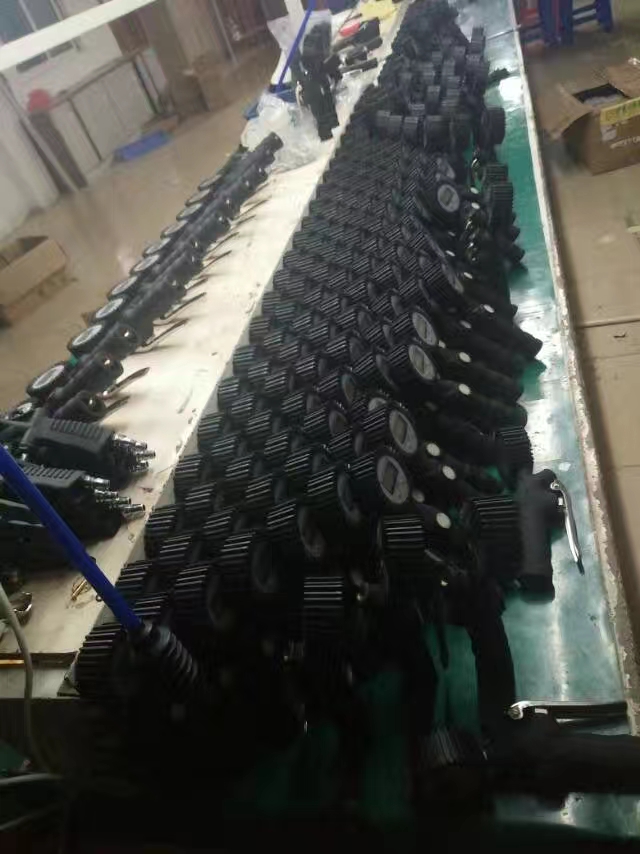

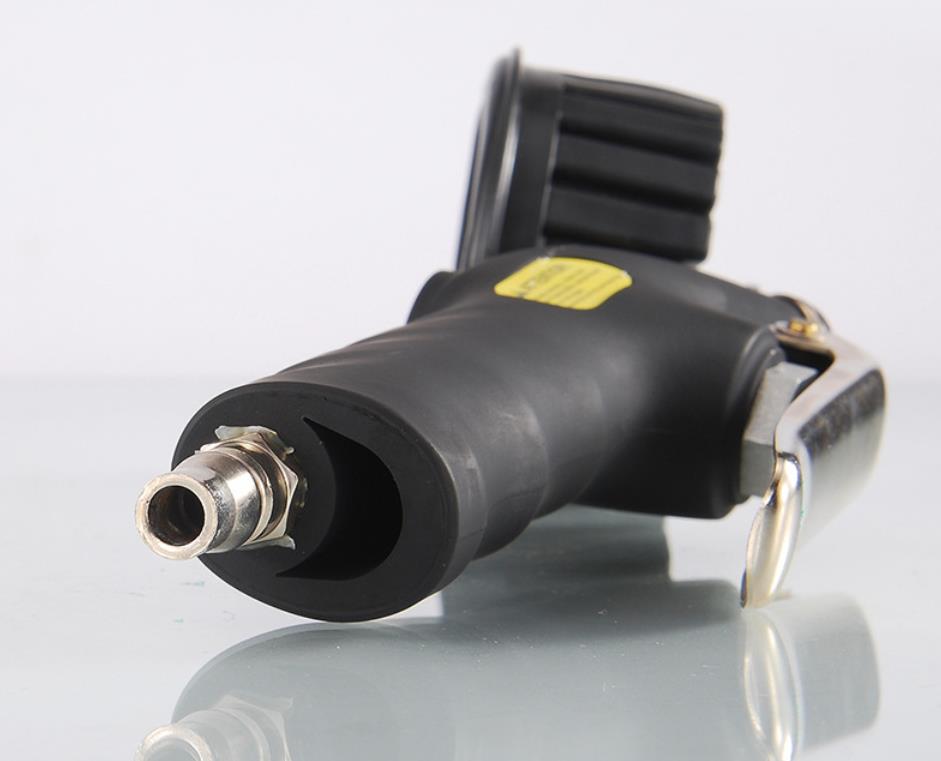

air pressure gauge (22) air pressure gauge (23) air pressure gauge (24) air pressure gauge (25) air pressure gauge (26) air pressure gauge (27) air pressure gauge (28) air pressure gauge (29) air pressure gauge (30) air pressure gauge (31)
