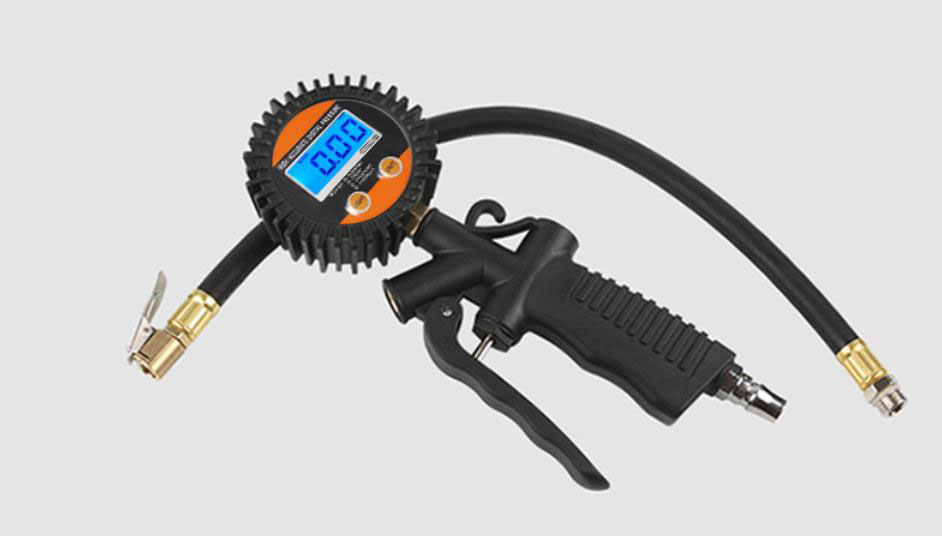

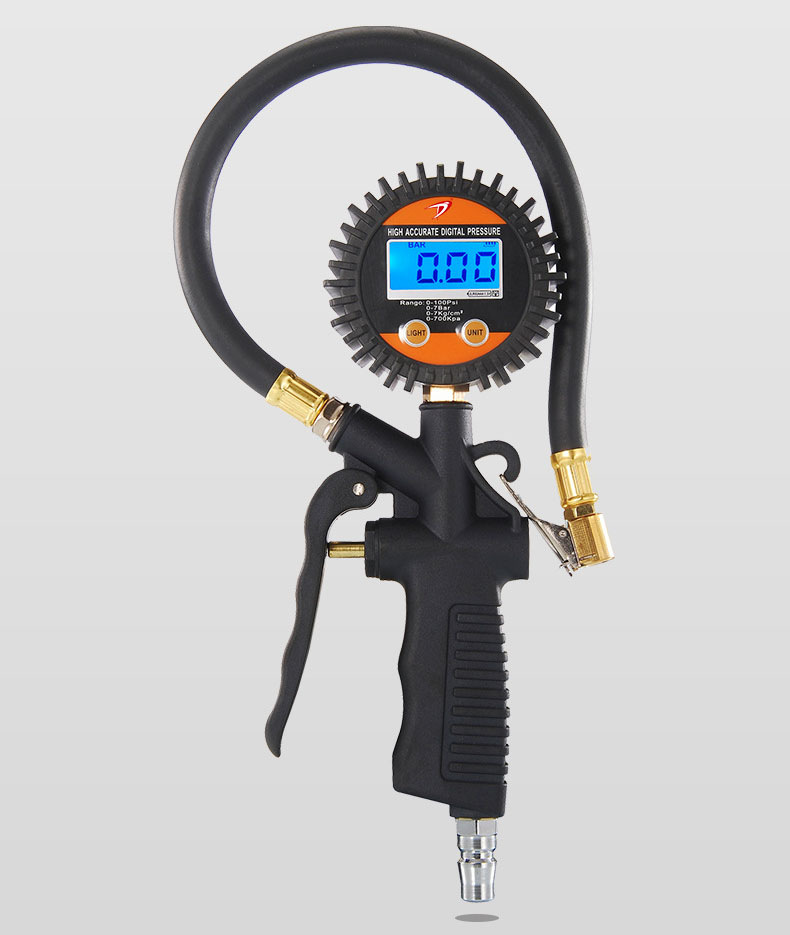

Y-T030 digital tire inflator with pressure gauge pressure gauges price gauges

Short Description:


Product Detail

Product Tags

CHARACTERISTICS

    1. LCD backlight display
    2. Four pressure units switching
    3. 15s auto stop
    4. Pressure unit Memory function
    5. Night light
    6. Universal joint
    7. Comfortable anti-slip handle
    8. Accuracy ±0.1Psi
    9. Multifunction digital tire inflator gauge

    Inflator , deflation, testing tire pressure

TECHNICAL SPECIFICATIONS

Name Tyre Pressure Gauge Digital Manometer Manufacturer Tire Digital Pressure Gauge LCD Dial for High Pressure
Pressure Range: 0-100psi,0-7 bar
Pressure Unit:  psi,bar, kg/cm²,kpa
Accuracy: ±0.1 Psi
Applicable Car bus
Display LCD (40*20mm)

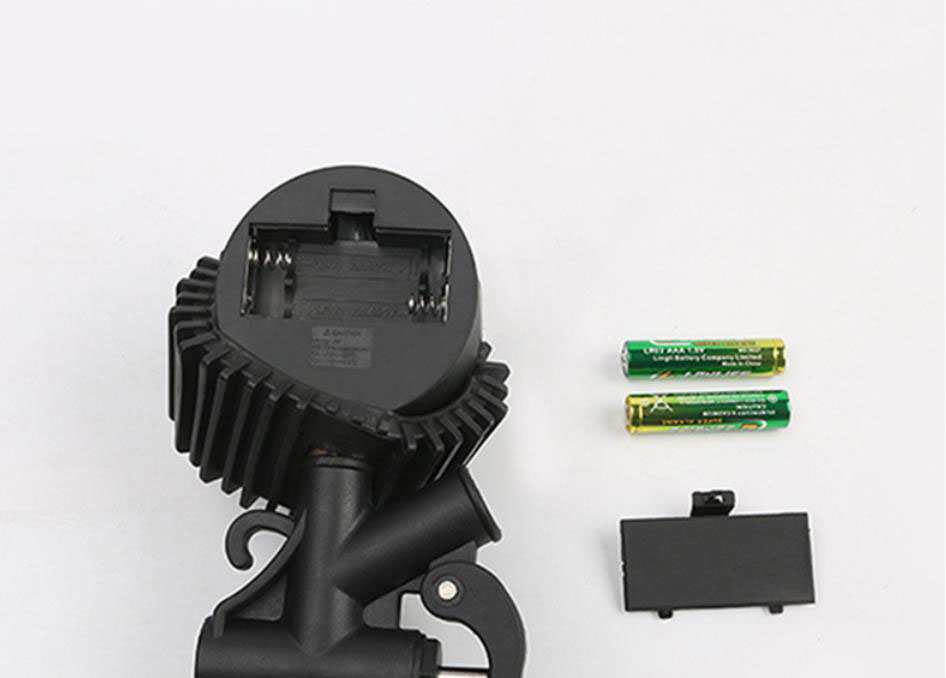

Power supply AAA Batteries
Use medium Air
Weight 450g
Packaging 255*95*45mm
Contains Gauge

600mm tube

AAA batteries

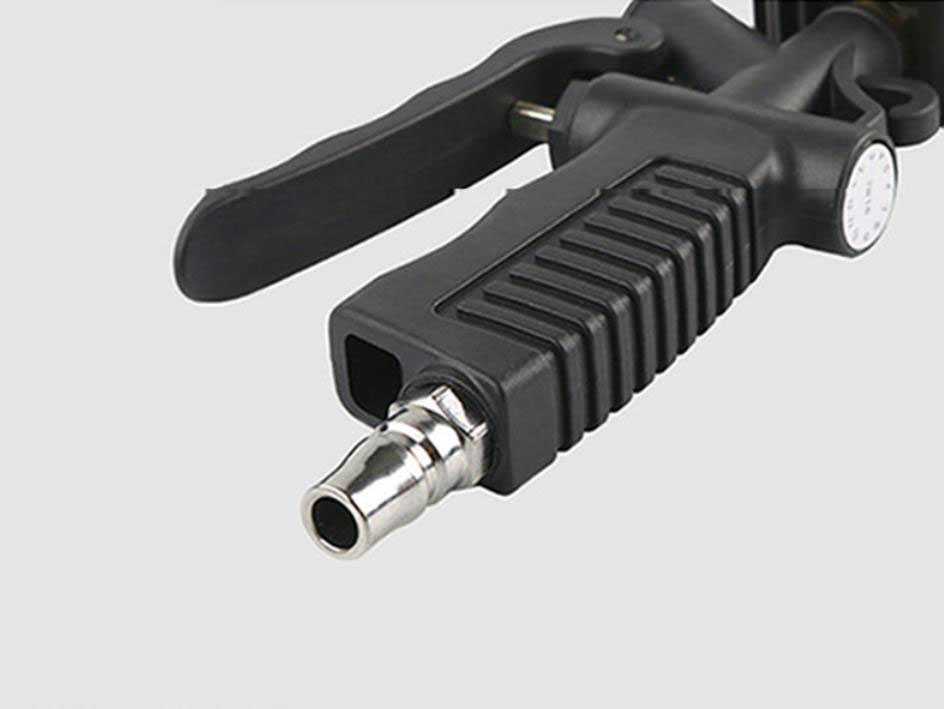

Japanese inlet quick connection

Instruction

Brand Win Glitter
Model Number Y-T030
Warranty 12 Months



Why need it?

The dangers of abnormal tyres

Low tire
Increased tire wear, easy to produce a flat tire, car fuel consumption increased
High Tire
The tire grip is lowered and worn quickly and the brake performance is reduced
Flat Tire
Continued driving will cause severe damage to the tire and wheel hub and may cause serious traffic accidents
Air imbalance
Driving and braking are prone to deviation and driving continues to cause traffic accidents

How to use it ?

    1. Equipped with batteries, adjusting pressure unit
    2. Connect air source and air pipe
    3. Connect to tire
    4. Inflatable / deflatable

Notes

For accuracy, check pressure when tires are cold. Pressure increases with heat. Tires can lose one pound per month under normal conditions. Proper tire pressure improves gas mileage, handling, braking and durability.

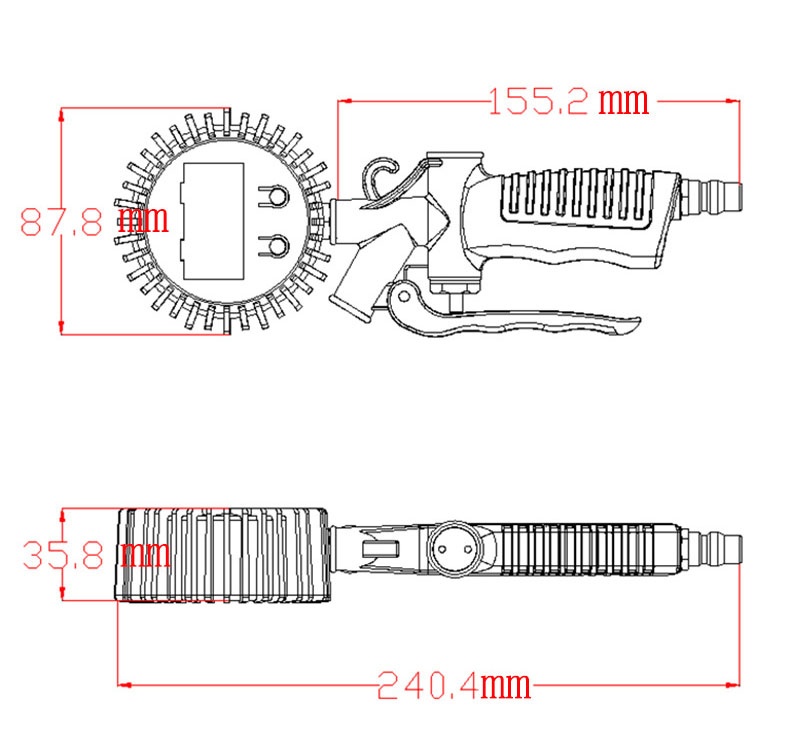

Detailed Drawing

pressure gauges (23) pressure gauges (24) pressure gauges (25) pressure gauges (27) pressure gauges (28) pressure gauges (29) pressure gauges (30) pressure gauges (31) pressure gauges (32) pressure gauges (33)
