Y-T029 Tire inflator with gauge tyre air inflator digital

Short Description:


Product Detail

Product Tags

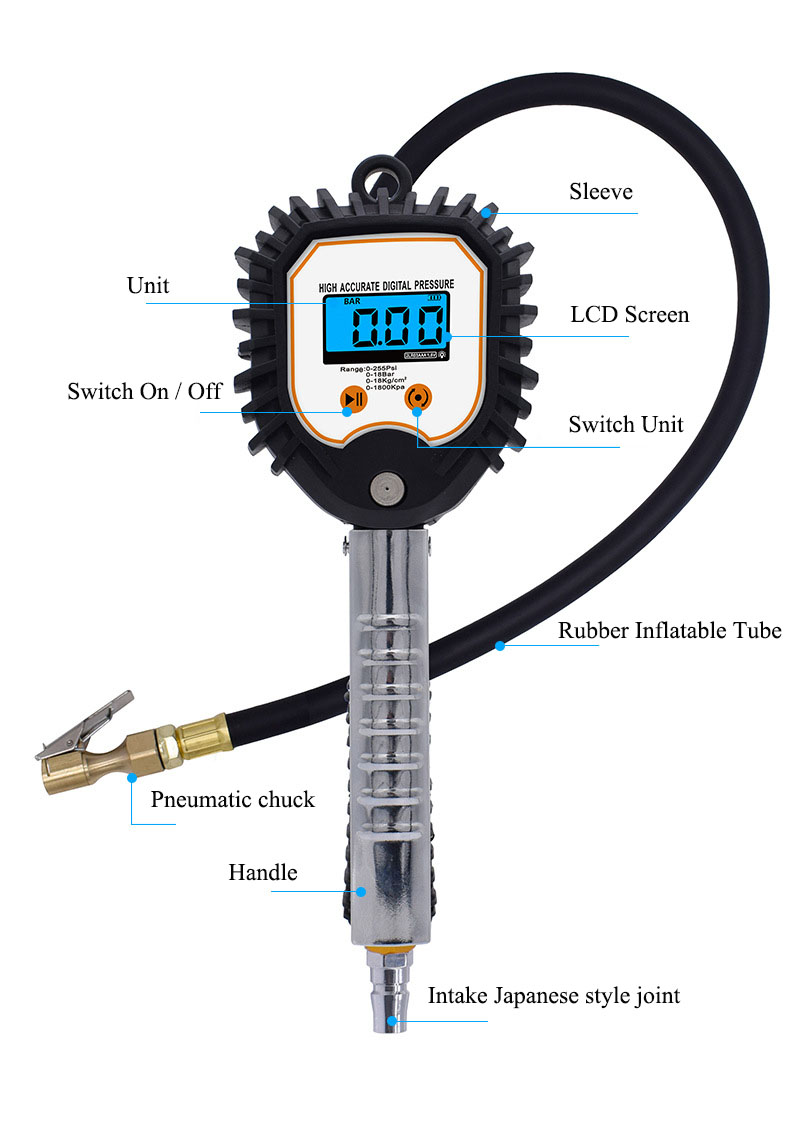

CHARACTERISTICS

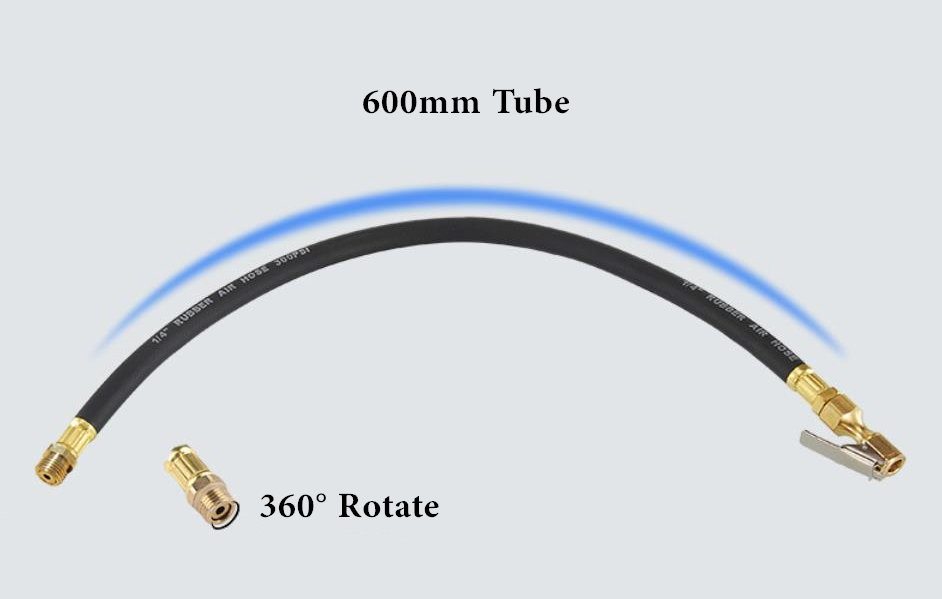

  1. Rubber inflatable 600mm tube
  2. LCD Screen
  3. Rubber sleeve

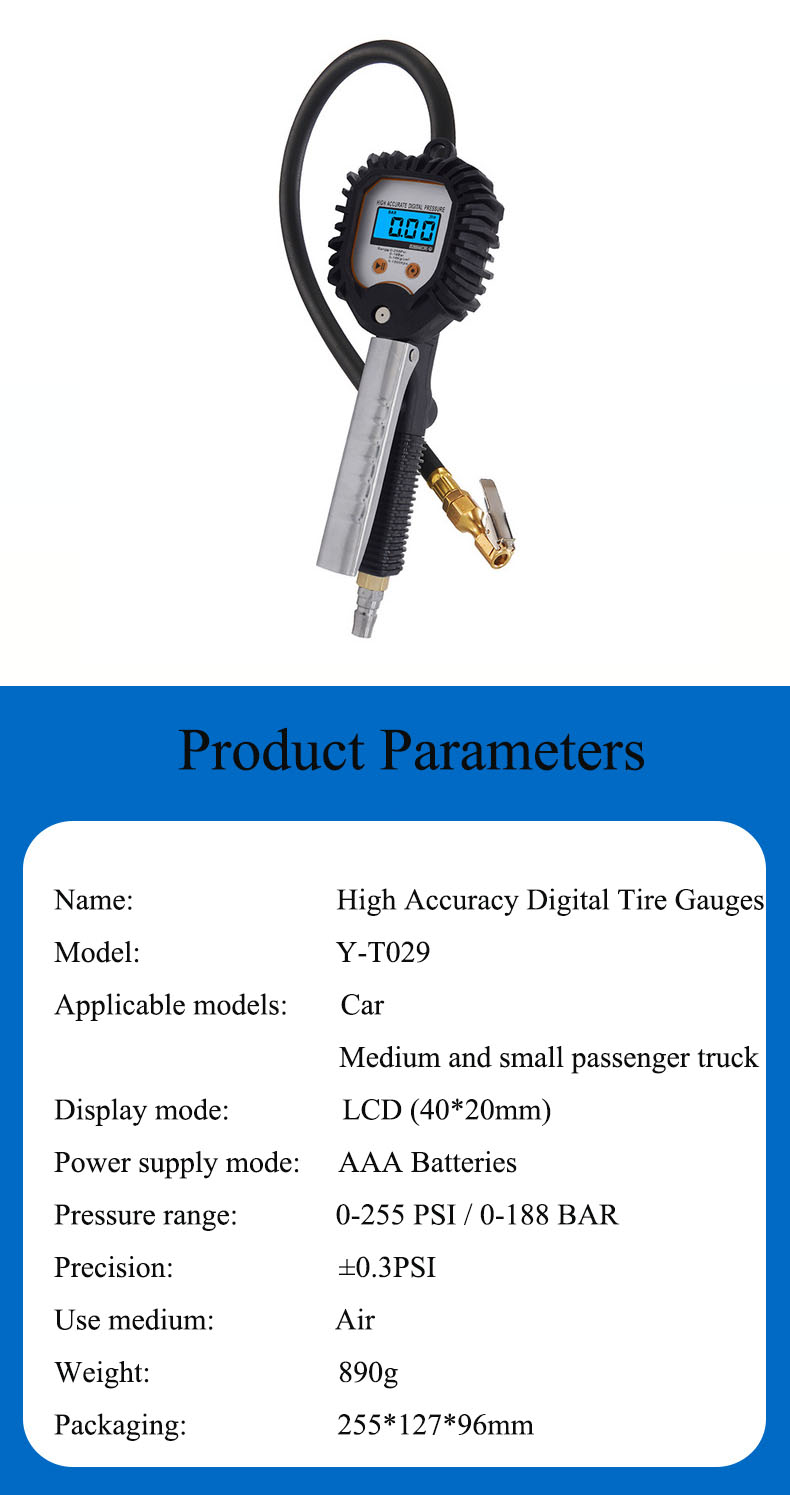

TECHNICAL SPECIFICATIONS

Name High accuracy digital tire gauges

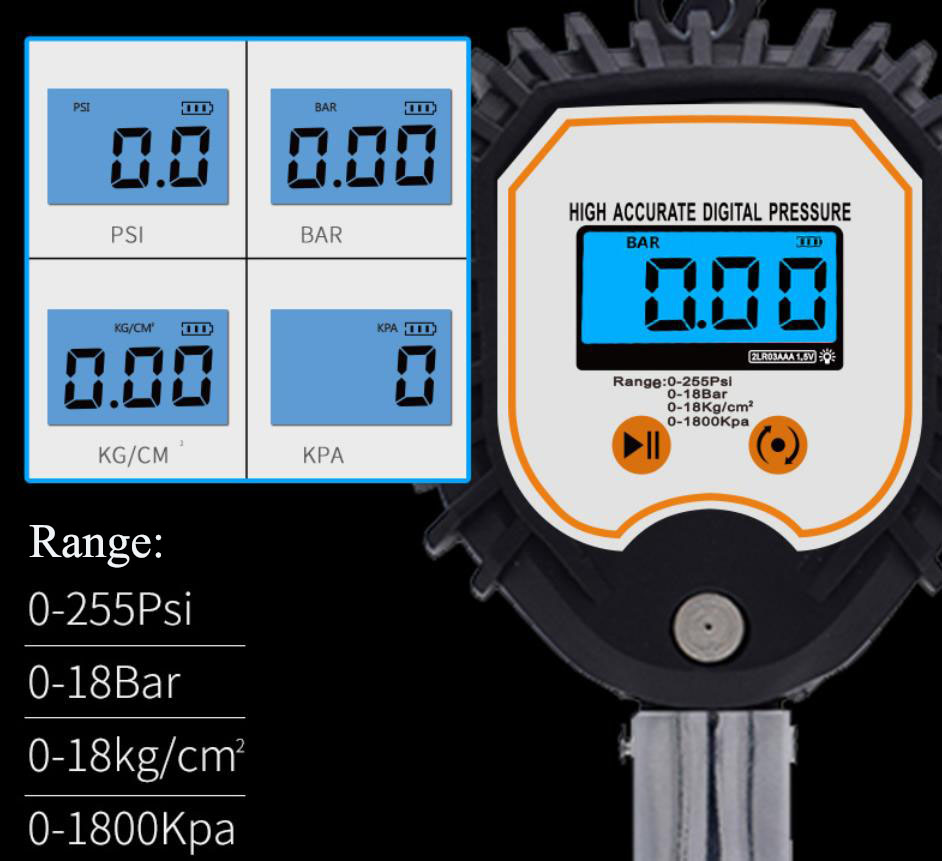

Pressure Range: 0-255psi,0-188 bar
Pressure Unit:  psi,bar, kg/cm²,kpa
Accuracy: ±0.3 Psi
Applicable Car, medium and small passenger truck
Display LCD (40*20mm)
Power supply AAA Batteries
Use medium Air
Weight 890g
Packaging 255*127*96mm

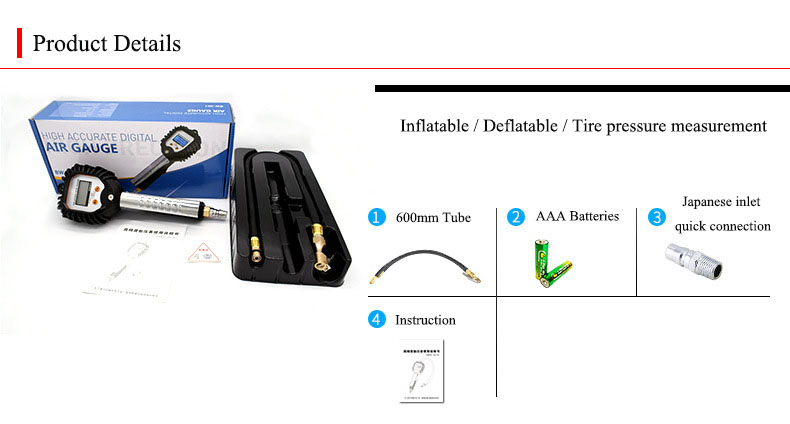

Contains Gauge

600mm tube

AAA batteries

Japanese inlet quick connection

Instruction

Brand Win Glitter
Model Number Y-T029
Warranty 12 Months
Package Type Product size: 33*2.6*2.8 cm
Net weight: 163 g
Each in sliding blister
Dimensions of master carton: 41*23.5* 15cm
20pcs/ctn
G.W.: 5kgs N.W.:4 kgs



Why need it?

The dangers of abnormal tyres

Low tire
Increased tire wear, easy to produce a flat tire, car fuel consumption increased
High Tire
The tire grip is lowered and worn quickly and the brake performance is reduced
Flat Tire
Continued driving will cause severe damage to the tire and wheel hub and may cause serious traffic accidents
Air imbalance
Driving and braking are prone to deviation and driving continues to cause traffic accidents

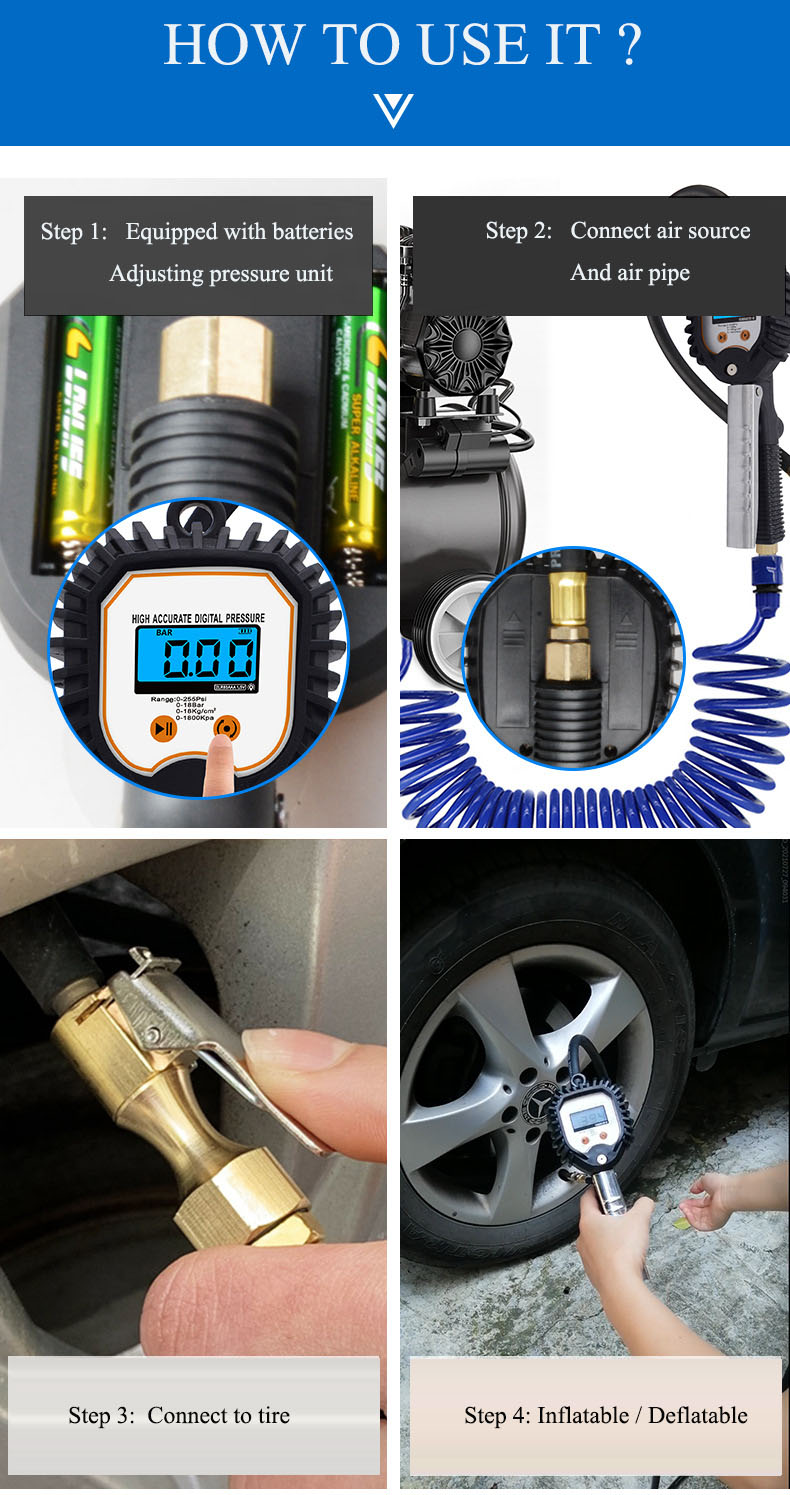

How to use it ?

  1. Equipped with batteries, adjusting pressure unit
  2. Connect air source and air pipe
  3. Connect to tire

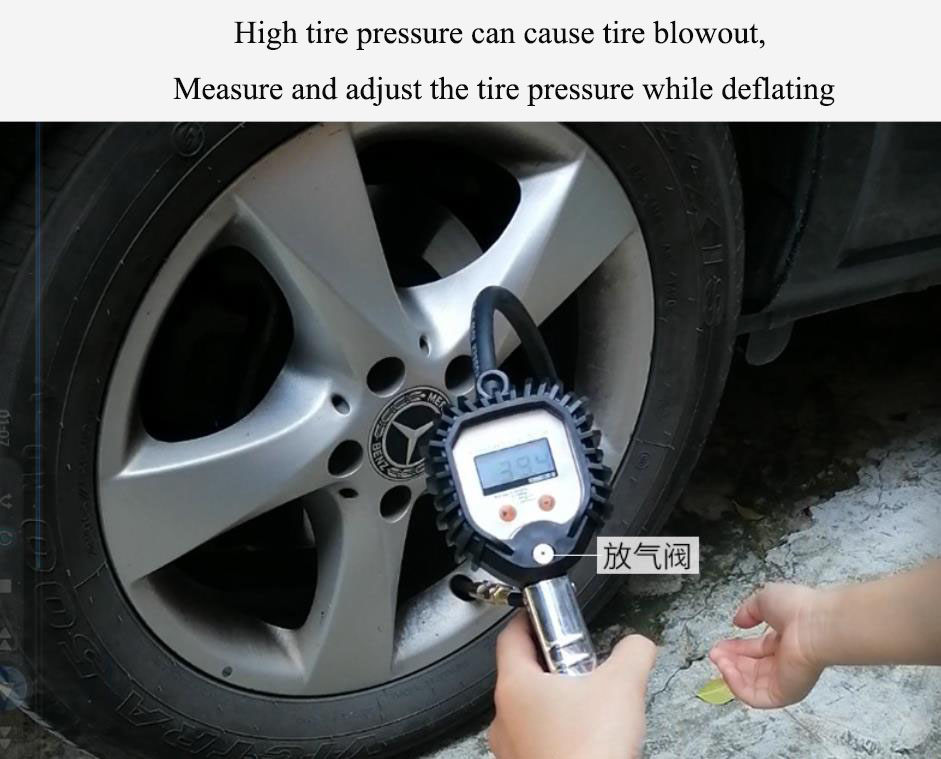

  4. Inflatable / deflatable

Notes

For accuracy, check pressure when tires are cold. Pressure increases with heat. Tires can lose one pound per month under normal conditions. Proper tire pressure improves gas mileage, handling, braking and durability.

Detailed Drawing

gauge pressur (15) gauge pressur (16) gauge pressur (17) gauge pressur (18) gauge pressur (19) gauge pressur (26) gauge pressur (29) gauge pressur (30)
