Y-T026 Mechanical tire pressure gauge Tire pressure gauge for automobiles

Short Description:


Product Detail

Product Tags

CHARACTERISTICS

Mechanical design
Gives you no fear of digital failure works perfectly in all weather conditions without batteries
Metal pressure measuring valve

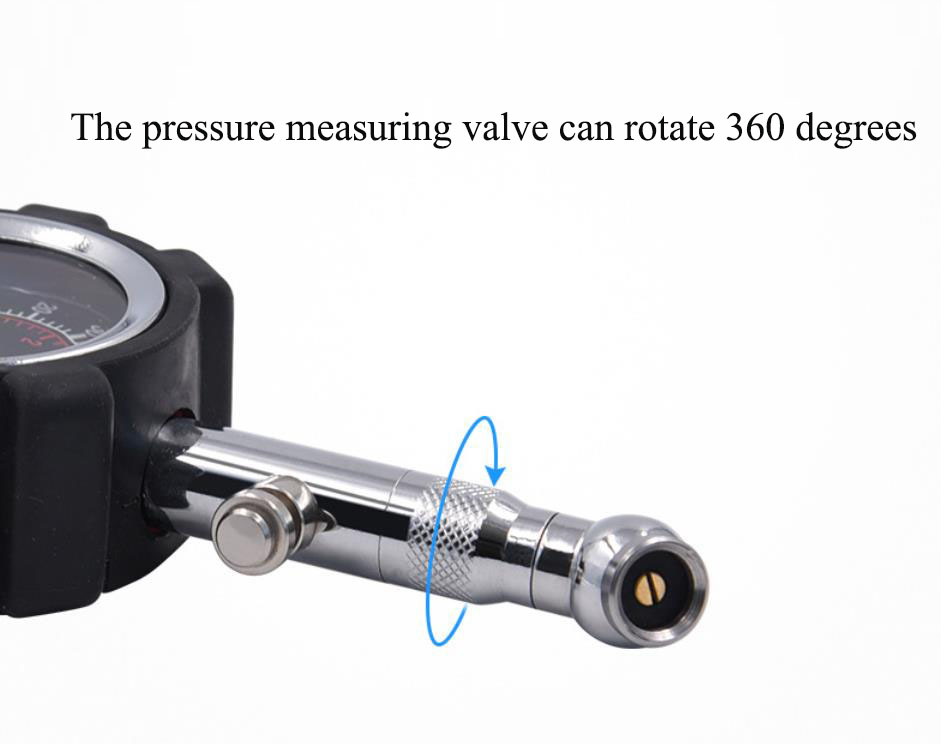

Rotate 360 degrees
Rubber sleeve
Large dial

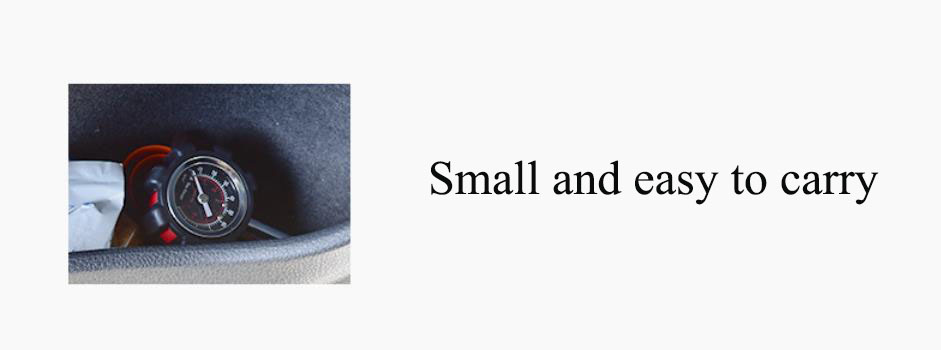

Small and easy to carry

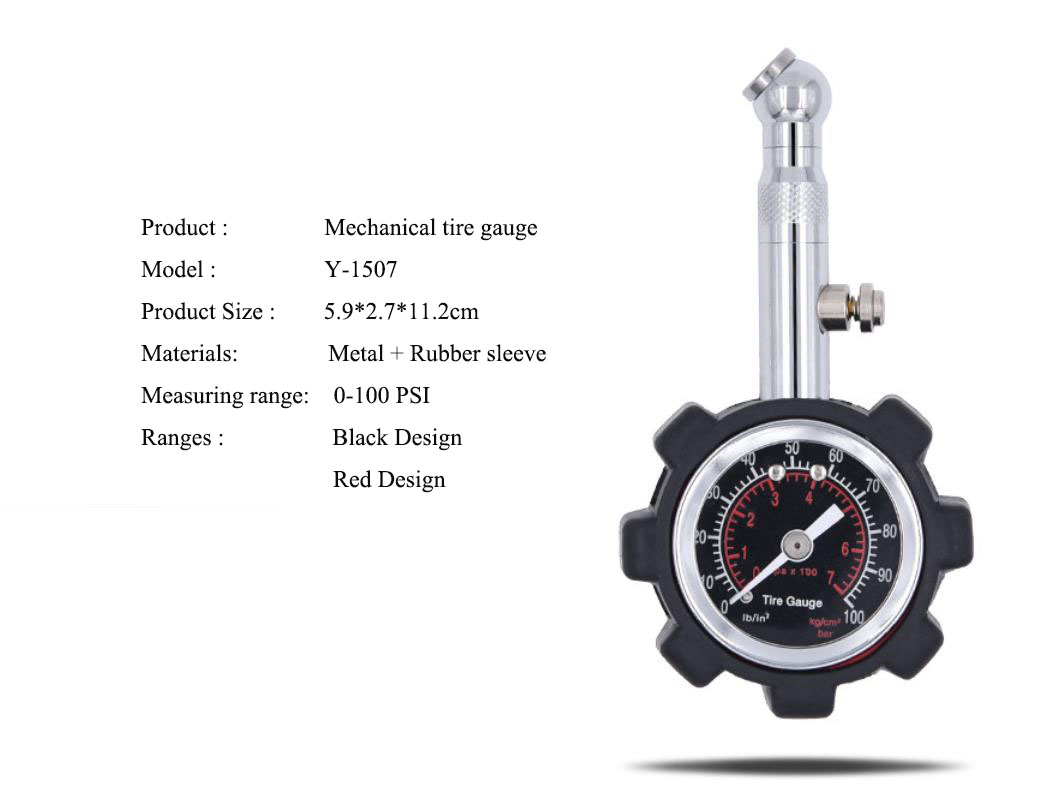

TECHNICAL SPECIFICATIONS

item Tire pressure gauge
Size 5.9*2.7*11.2cm
Application for SUV RV CAR TRUCK
Certification CE Rosh FCC
Pressure range 0-100psi
Material Metal + rubber sleeve
Accuracy 1.5psi
Working temperature -15 to 60℃

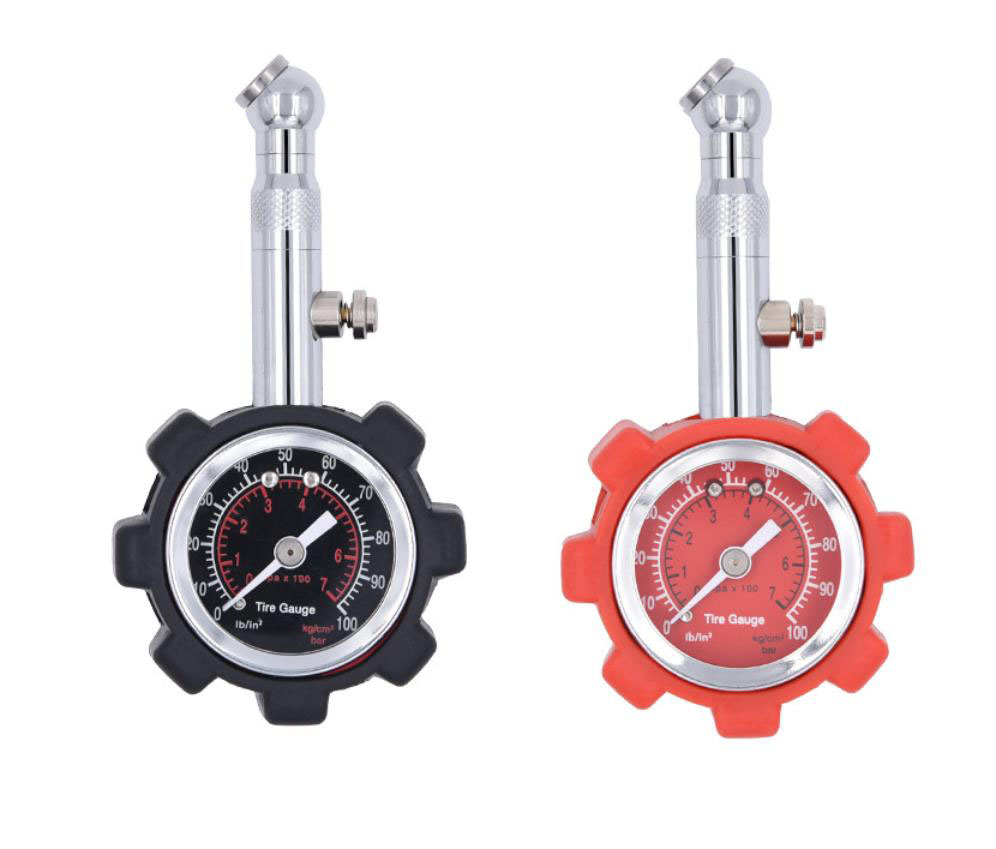

Color Black / Red
Brand Win Glitter
Model Number Y-T026
Warranty 12 Months
Package Type Net weight: 80g
Neutral box
Dimensions of master carton:45*41*35cm
200pcs/ctn
G.W.: 18 kgs N.W.:16 kgs

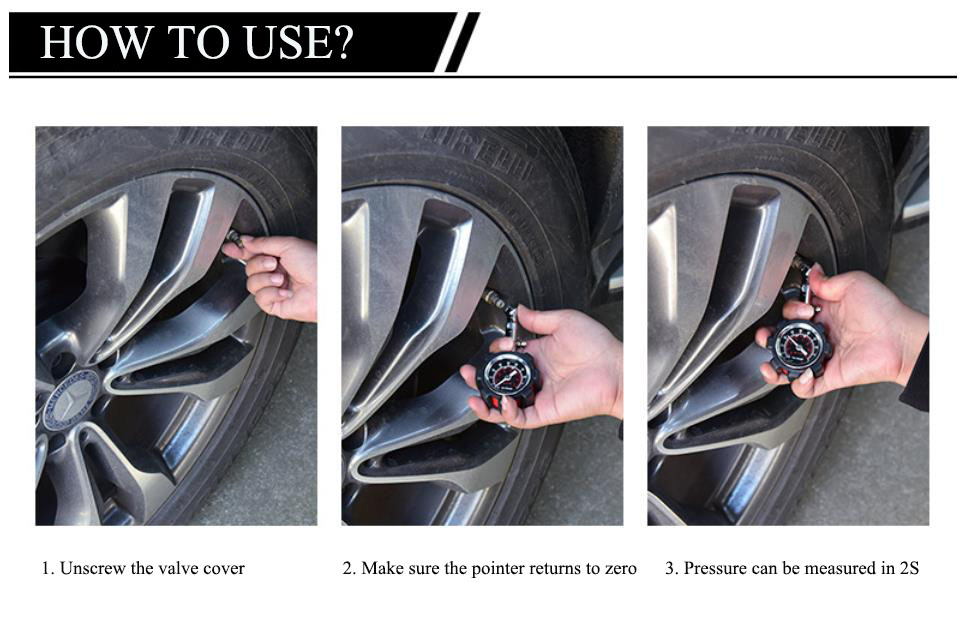

How to use it ?

Unscrew the valve cover
Make sure the pointer returns to zero
Pressure can be measured in 2s

Notes

For accuracy, check pressure when tires are cold. Pressure increases with heat. Tires can lose one pound per month under normal conditions. Proper tire pressure improves gas mileage, handling, braking and durability.

Detailed Drawing

motorcycle gauge (17) motorcycle gauge (18) motorcycle gauge (19) motorcycle gauge (20) motorcycle gauge (21) motorcycle gauge (22) motorcycle gauge (23) motorcycle gauge (24)
