Professional Vehicle Body Auto Chassis Straightening Machine Auto Body Frame Machine

Short Description:

Auto Body Frame Machine
Car Repair Working Bench YC4500




Product Detail

Product Tags

Product Description

(1) General vehicle body repairing system model YC4500 is an economic type developed by our company with strong performance.
(2) Working bench is welded with steel sheet featured high strength and not easy to deformation; Hydraulic incline main lifting structure enables an easy and convenient vehicle loading on ramp.
(3) Equipped with the flexible and convenient moving structure of two drawing towers which enables an easy tower′ s move and fix in a circle along the bench 360° .
(4) Oil cylinder vertically mounted enables a strong pulling force without any component force.
(5) General clamp is applicable on clamping of various cars of home and abroad.
(6) Jig and auxiliary of different function can satisfy any repairing operation on distortion in any form.

TECHNICAL SPECIFICATIONS

Platform Length: 5600mm
Platform width: 2120mm
Platform height: 520mm
Post Max.tension: 98KN
Pneumatic pressure range: 0.8Mpa
Post working range: 360° full around
Cylinder capacity: 10T
Maximum lift capacity: 4000kgs
Weight: 2350kgs
Packing size: 5600*2130*250mm
2150*1360*750mm / 5cbm

DETAILS

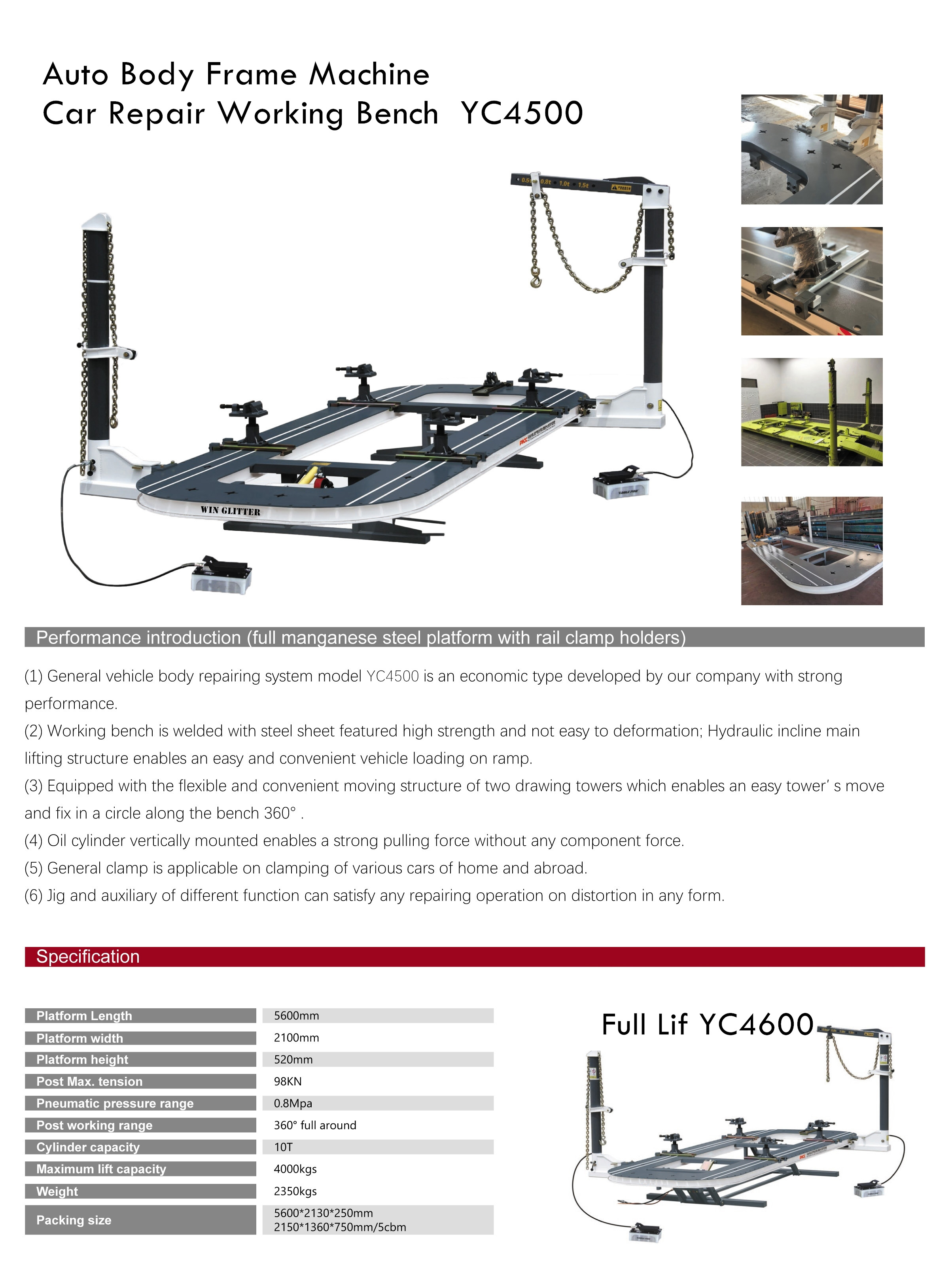

Professional Vehicle Body Auto Chassis Straightening Machine Auto Body Frame Machine (7)
