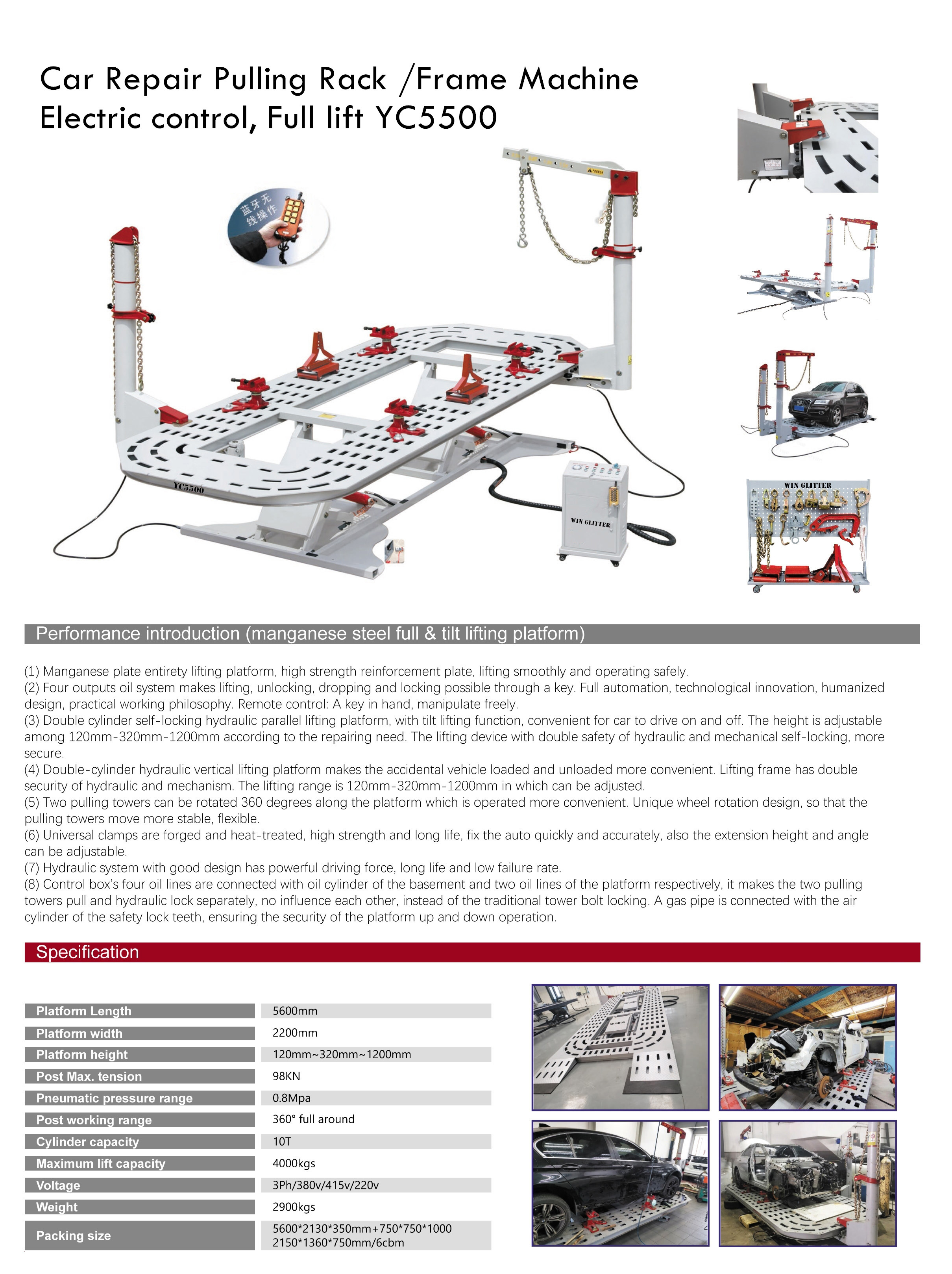

(1) Manganese plate entirety lifting platform, high strength reinforcement plate, lifting smoothly and operating safely.
(2) Four outputs oil system makes lifting, unlocking, dropping and locking possible through a key. Full automation, technological innovation, humanized design, practical working philosophy. Remote control: A key in hand, manipulate freely.
(3) Double cylinder self-locking hydraulic parallel lifting platform, with tilt lifting function, convenient for car to drive on and off. The height is adjustable among 120mm-320mm-1200mm according to the repairing need. The lifting device with double safety of hydraulic and mechanical self-locking, more secure.
(4) Double-cylinder hydraulic vertical lifting platform makes the accidental vehicle loaded and unloaded more convenient. Lifting frame has double security of hydraulic and mechanism. The lifting range is 120mm-320mm-1200mm in which can be adjusted.
(5) Two pulling towers can be rotated 360 degrees along the platform which is operated more convenient. Unique wheel rotation design, so that the pulling towers move more stable, flexible.
(6) Universal clamps are forged and heat-treated, high strength and long life, fix the auto quickly and accurately, also the extension height and angle can be adjustable.
(7) Hydraulic system with good design has powerful driving force, long life and low failure rate.
(8) Control box’s four oil lines are connected with oil cylinder of the basement and two oil lines of the platform respectively, it makes the two pulling towers pull and hydraulic lock separately, no influence each other, instead of the traditional tower bolt locking. A gas pipe is connected with the air cylinder of the safety lock teeth, ensuring the security of the platform up and down operation.
Platform Length: 5600mm
Platform width: 2100mm
Platform height: 120mm ~ 320mm ~ 1200mm
Post Max.tension: 98KN
Pneumatic pressure range: 0.8Mpa
Post working range: 360° full around
Cylinder capacity: 10T
Maximum lift capacity: 4000kgs
Voltage: 3Ph/380v/415v/220v
Weight: 2900kgs
Packing size: 5600*2130*350mm
750*750*1000mm
2150*1360*750mm / 6cbm
