Frame Straightener Overall Lifting Auto Body Collision Repair Frame Machine 10T Chassis Pulling Machine Truck Body Frame Machine

Short Description:

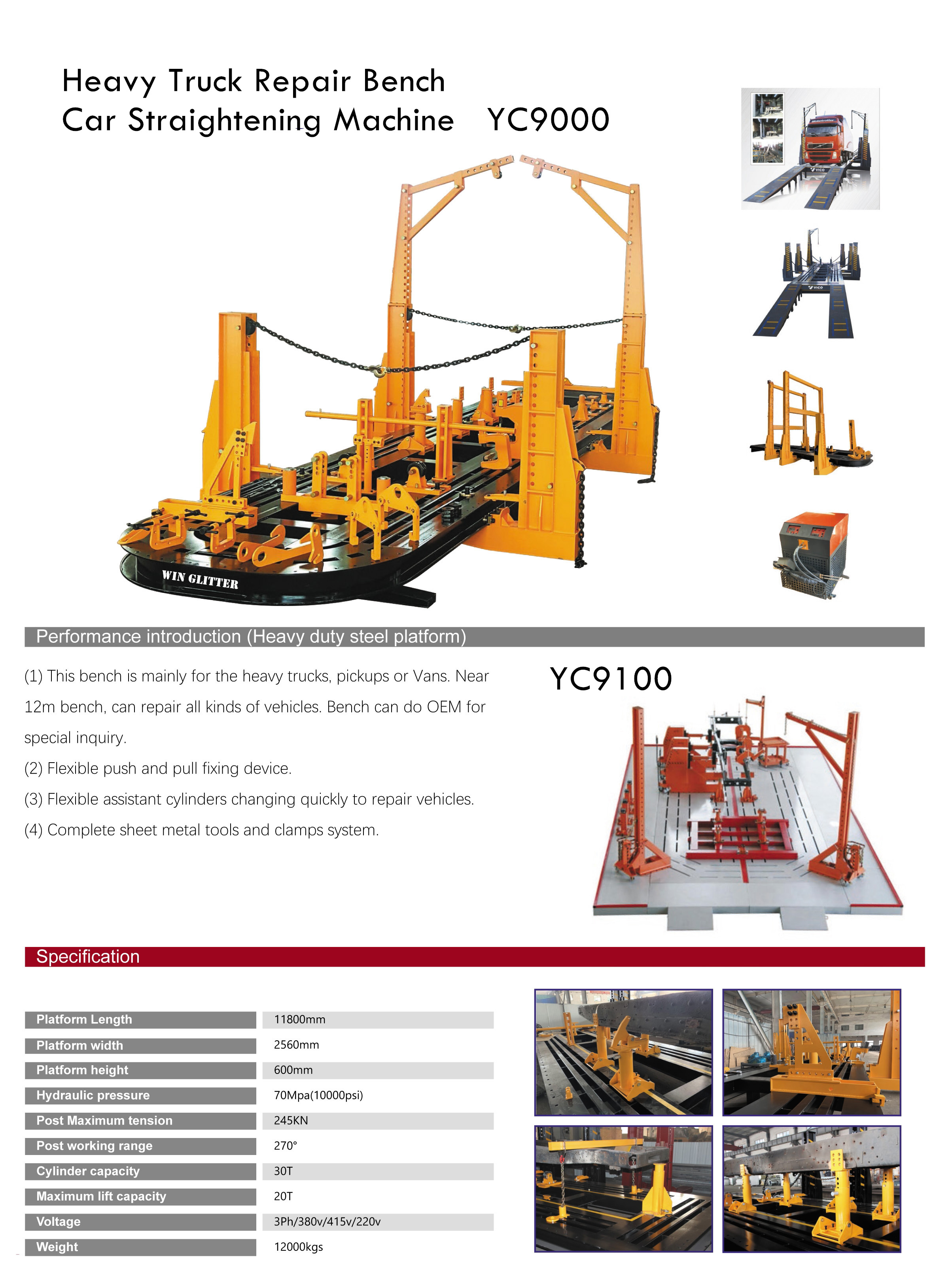

Heavy Truck Repair Bench
Truck Straightening Machine YC9000








Product Detail

Product Tags

Product Description

(1) This bench is mainly for the heavy trucks, pickups or Vans. Near 12m bench, can repair all kinds of vehicles. Bench can do OEM for special inquiry.
(2) Flexible push and pull fixing device.
(3) Flexible assistant cylinders changing quickly to repair vehicles.
(4) Complete sheet metal tools and clamps system.

TECHNICAL SPECIFICATIONS

Platform Length: 11800mm
Platform width: 2560mm
Platform height: 600mm
Post Max.tension: 245KN
Hydraulic pressure: 70Mpa(10000psi)
Post working range: 270°
Cylinder capacity: 30T
Maximum lift capacity: 20T
Voltage: 3Ph/380v/415v/220v
Weight: 12000kgs

DETAILS

Truck Body Frame Machine (7)
