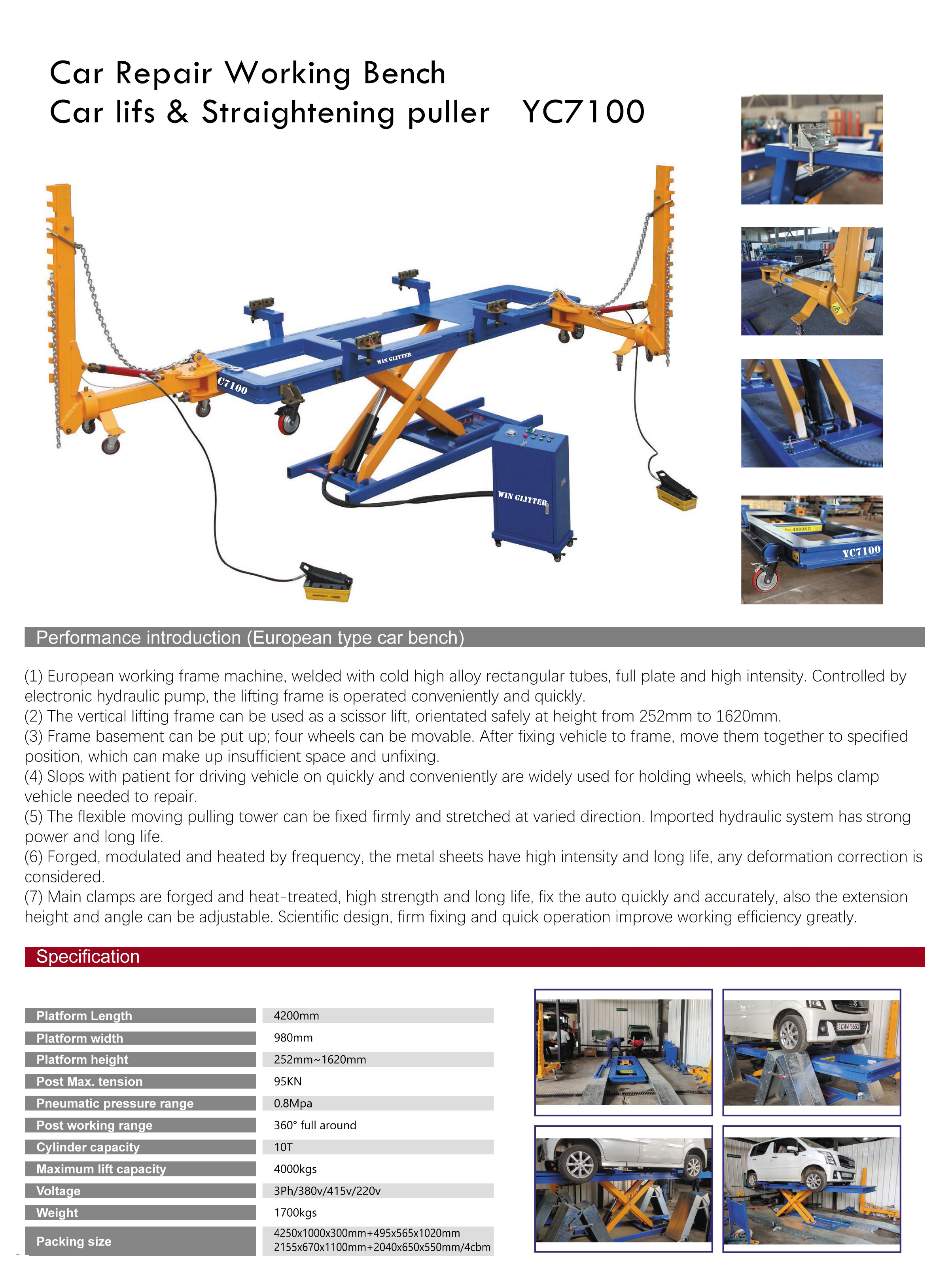

(1) European working frame machine, welded with cold high alloy rectangular tubes, full plate and high intensity. Controlled by electronic hydraulic pump, the lifting frame is operated conveniently and quickly.
(2) The vertical lifting frame can be used as a scissor lift, orientated safely at height from 252mm to 1620mm.
(3) Frame basement can be put up; four wheels can be movable. After fixing vehicle to frame, move them together to specified position, which can make up insufficient space and unfixing.
(4) Slops with patient for driving vehicle on quickly and conveniently are widely used for holding wheels, which helps clamp vehicle needed to repair.
(5) The flexible moving pulling tower can be fixed firmly and stretched at varied direction. Imported hydraulic system has strong power and long life.
(6) Forged, modulated and heated by frequency, the metal sheets have high intensity and long life, any deformation correction is considered.
(7) Main clamps are forged and heat-treated, high strength and long life, fix the auto quickly and accurately, also the extension height and angle can be adjustable. Scientific design, firm fixing and quick operation improve working efficiency greatly.
Platform Length: 4200mm
Platform width: 980mm
Platform height: 252mm ~ 1620mm
Post Max.tension: 95KN
Pneumatic pressure range: 0.8Mpa
Post working range: 360° full around
Cylinder capacity: 10T
Maximum lift capacity: 4000kgs
Voltage: 3Ph/380v/415v/220v
Weight: 1700kgs
Packing size: 4250*1000*300mm
495*565*1020mm
2155*670*1100mm
2040*650*550MM / 4cbm
