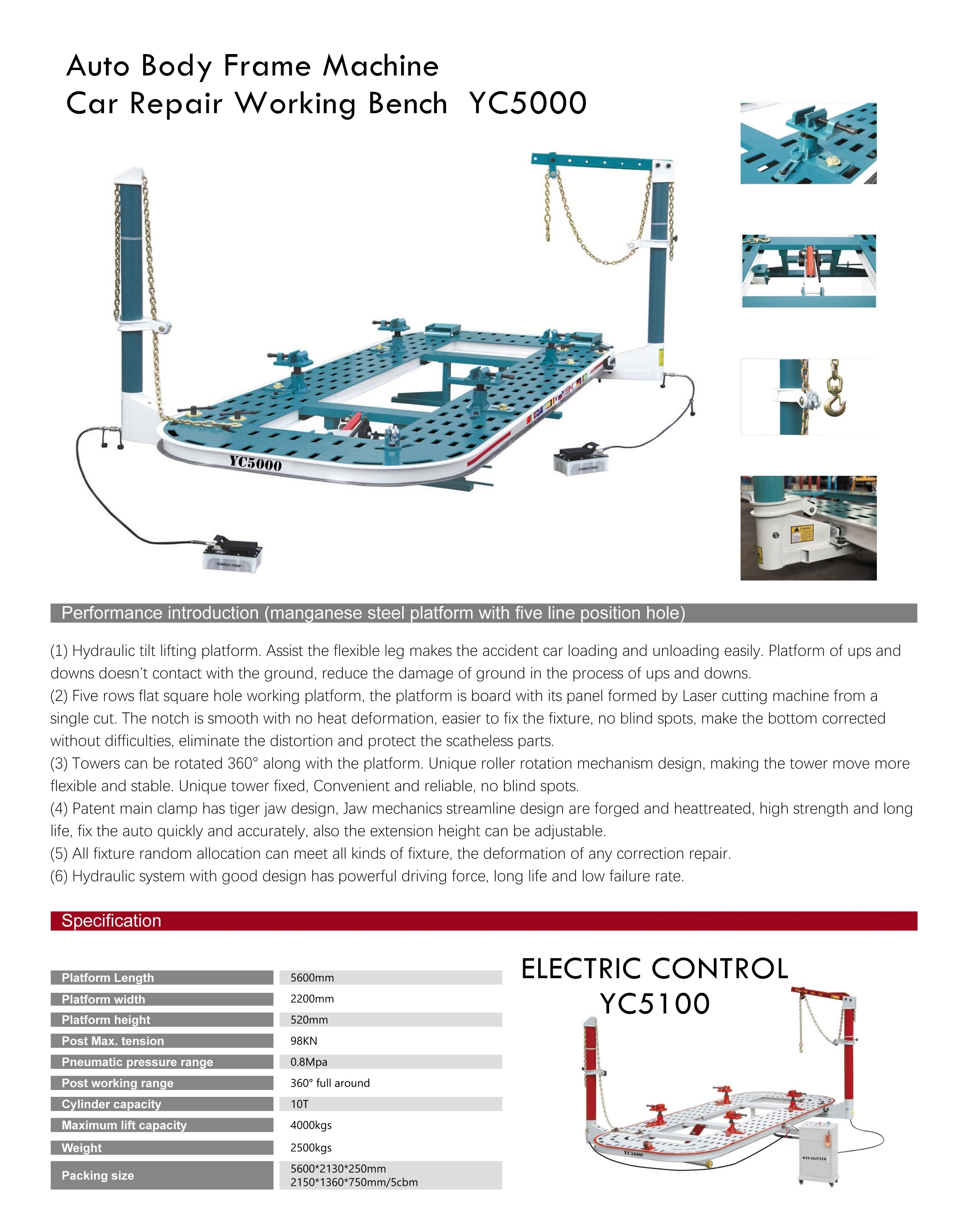

(1) Hydraulic tilt lifting platform. Assist the flexible leg makes the accident car loading and unloading easily. Platform of ups and downs doesn’t contact with the ground, reduce the damage of ground in the process of ups and downs.
(2) Five rows flat square hole working platform, the platform is board with its panel formed by Laser cutting machine from a single cut. The notch is smooth with no heat deformation, easier to fix the fixture, no blind spots, make the bottom corrected without difficulties, eliminate the distortion and protect the scatheless parts.
(3) Towers can be rotated 360° along with the platform. Unique roller rotation mechanism design, making the tower move more flexible and stable. Unique tower fixed, Convenient and reliable, no blind spots.
(4) Patent main clamp has tiger jaw design, Jaw mechanics streamline design are forged and heattreated, high strength and long life, fix the auto quickly and accurately, also the extension height can be adjustable.
(5) All fixture random allocation can meet all kinds of fixture, the deformation of any correction repair.
(6) Hydraulic system with good design has powerful driving force, long life and low failure rate.
Platform Length: 5600mm
Platform width: 2120mm
Platform height: 520mm
Post Max.tension: 98KN
Pneumatic pressure range: 0.8Mpa
Post working range: 360° full around
Cylinder capacity: 10T
Maximum lift capacity: 4000kgs
Weight: 2500kgs
Packing size: 5600*2130*250mm
2150*1360*750mm / 5cbm
