Car Dent Repair Equipment Pneumatic Car Lifting Platform Frame Rack Machines for Auto Body Shops

Short Description:

Car Repair Pulling Rack /Frame Machine
Electric control, Full lift   YC5400


Product Detail

Product Tags

Product Description

(1) Manganese plate entirety lifting platform, high strength reinforcement plate, lifting smoothly and operating safely.
(2) The platform is board with its panel formed by the large-scale Laser cutting machine. The notch is smooth with no heat deformation.
(3) There are more holes on the platform, easier to fix the clamps, no working blind, make the bottom corrected without difficulties, eliminate the deformation and protect the scatheless parts.
(4) Double-cylinder hydraulic vertical lifting platform makes the accidental vehicle loaded and unloaded more convenient. Lifting frame has double security of hydraulic and mechanism. The liftingrange is 320mm-1200mm in which can be adjusted.
(5) Two pulling towers can be rotated 360 degrees along the platform which is operated more convenient. Unique wheel rotation design, so that the pulling towers move more stable, flexible.
(6) Universal clamps are forged and heat-treated, high strength and long life, fix the auto quickly and accurately, also the extension height and angle can be adjustable.
(7) Hydraulic system with good design has powerful driving force, long life and low failure rate.

TECHNICAL SPECIFICATIONS

Platform Length: 5600mm
Platform width: 2120mm
Platform height: 320mm ~ 1200mm
Post Max.tension: 98KN
Pneumatic pressure range: 0.8Mpa
Post working range: 360° full around
Cylinder capacity: 10T
Maximum lift capacity: 4000kgs
Voltage: 3Ph/380v/415v/220v
Weight: 2850kgs
Packing size: 5600*2130*350mm
750*750*1000mm
2150*1360*750mm / 6cbm

DETAILS

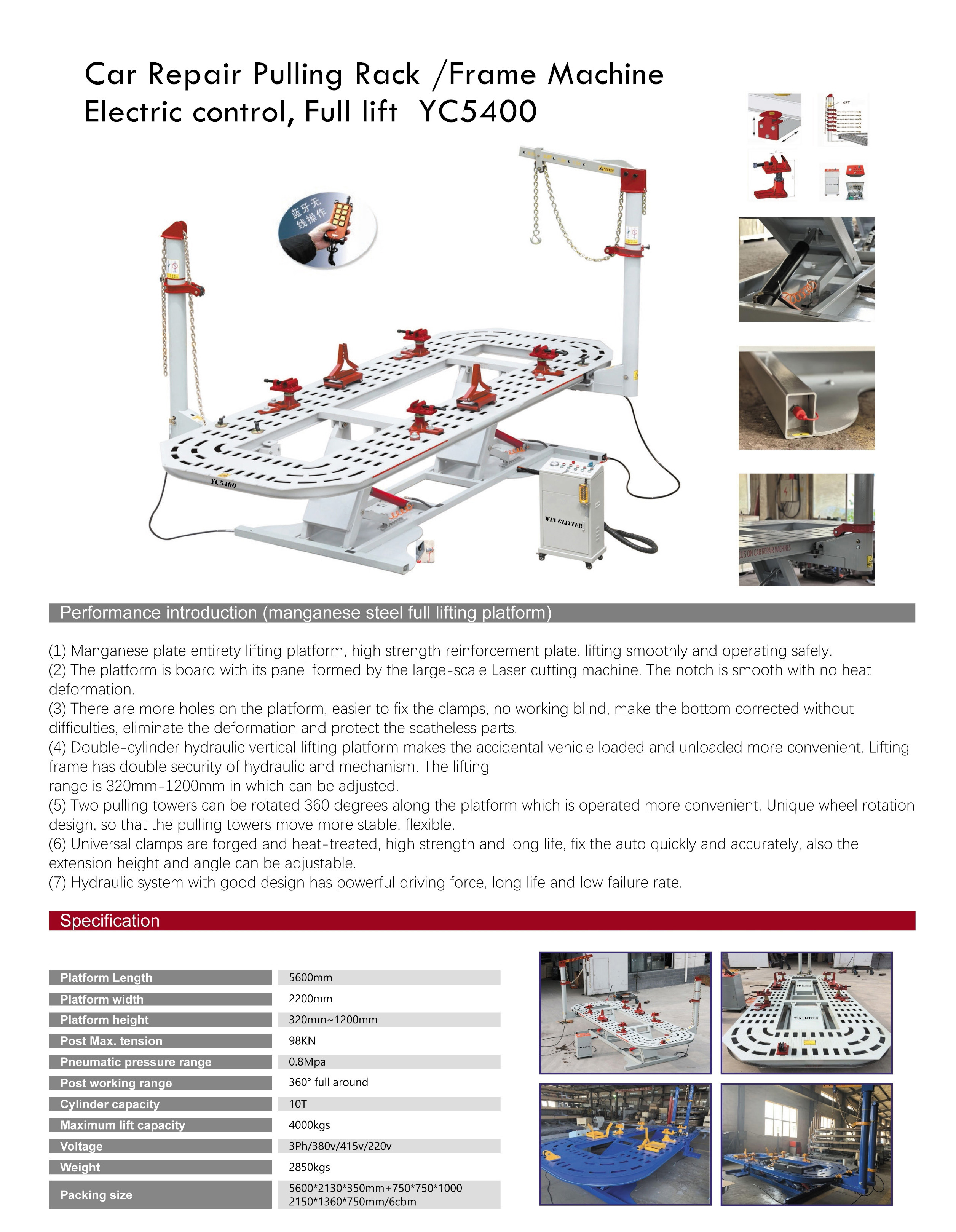

CE Approved Auto Body Collision Repair Bench Used Car High Quality Durable Collision Repair System (2)
