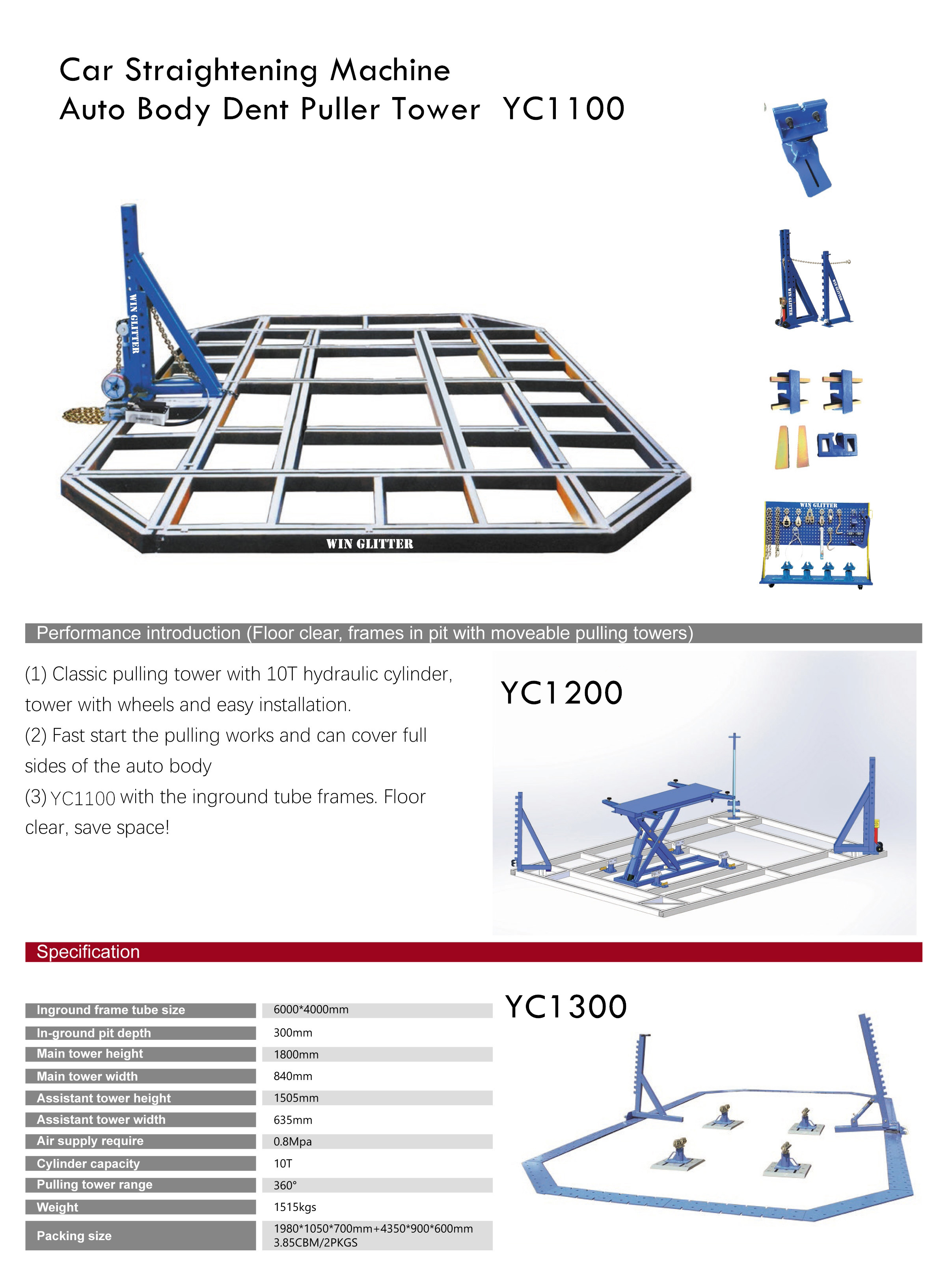

(Floor clear, frames in pit with moveable pulling towers)
(1) Classic pulling tower with 10T hydraulic cylinder, tower with wheels and easy installation.
(2) Fast start the pulling works and can cover full sides of the auto body
(3) VF1100 with the inground tube frames. Floor clear, save space!
Inground frame tube size : 6000*4000mm
In-ground pit depth: 300mm
Main tower height: 1800mm
Main tower width: 840mm
Assistant tower height: 1505mm
Assistant tower width: 635mm
Air supply require: 0.8Mpa
cylinder capacity: 10T
Pulling tower range: 360°
Weight: 1515kgs
Packing size: 1980*1050*700mm
4350*900*600mm
3.85CBM / 2 PKGS
