Car Accident Repair Equipment Car Work Body Equipment Car Body Repair Frame Repair Machine

Short Description:

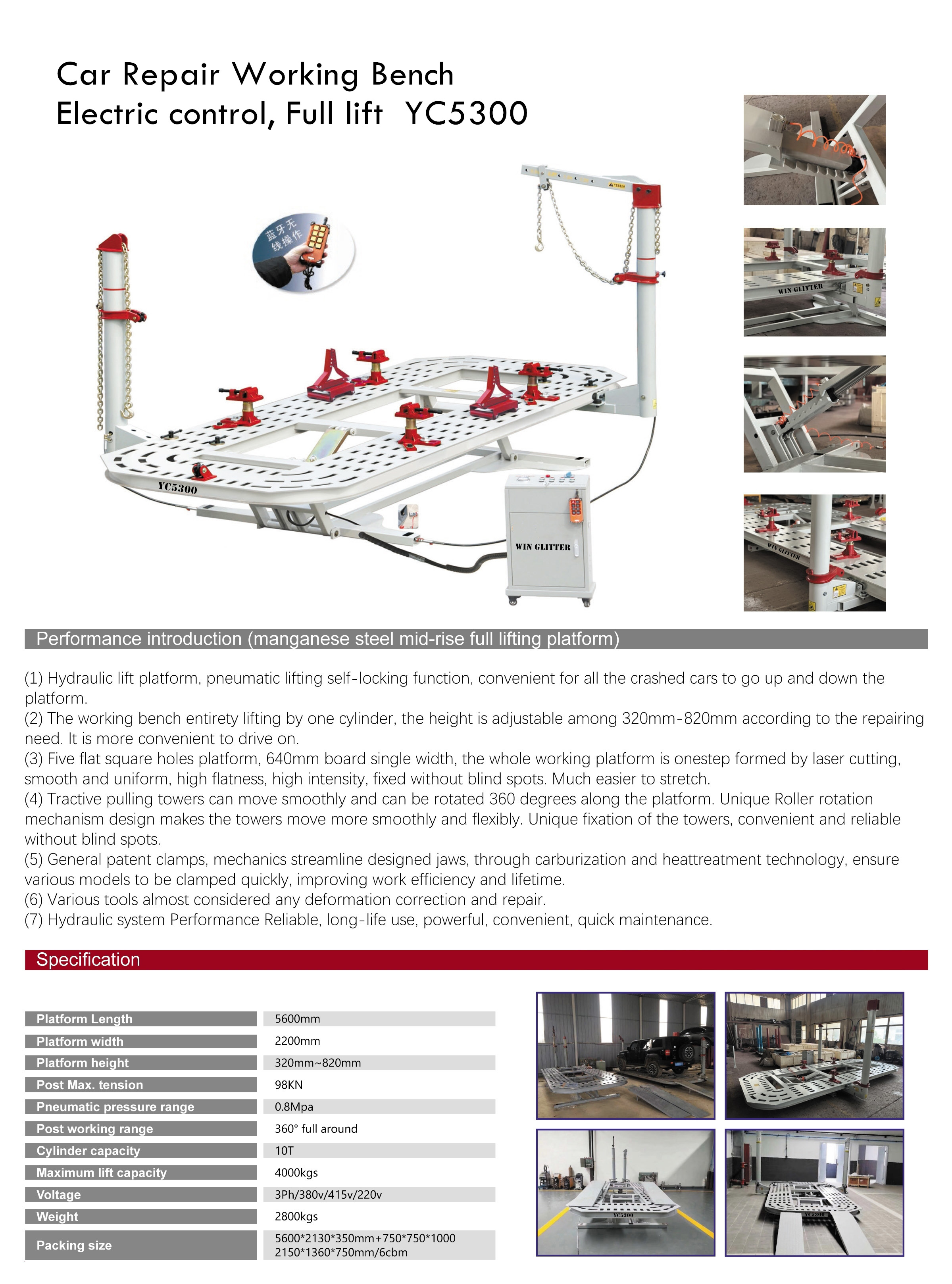

Car Repair Working Bench
Electric control, Full lift  YC5300




Product Detail

Product Tags

Product Description

(1) Hydraulic lift platform, pneumatic lifting self-locking function, convenient for all the crashed cars to go up and down the platform.
(2) The working bench entirety lifting by one cylinder, the height is adjustable among 320mm-820mm according to the repairing need. It is more convenient to drive on.
(3) Five flat square holes platform, 640mm board single width, the whole working platform is onestep formed by laser cutting, smooth and uniform, high flatness, high intensity, fixed without blind spots. Much easier to stretch.
(4) Tractive pulling towers can move smoothly and can be rotated 360 degrees along the platform. Unique Roller rotation mechanism design makes the towers move more smoothly and flexibly. Unique fixation of the towers, convenient and reliable without blind spots.
(5) General patent clamps, mechanics streamline designed jaws, through carburization and heattreatment technology, ensure various models to be clamped quickly, improving work efficiency and lifetime.
(6) Various tools almost considered any deformation correction and repair.
(7) Hydraulic system Performance Reliable, long-life use, powerful, convenient, quick maintenance.

TECHNICAL SPECIFICATIONS

Platform Length: 5600mm
Platform width: 2120mm
Platform height: 320mm ~ 820mm
Post Max.tension: 98KN
Pneumatic pressure range: 0.8Mpa
Post working range: 360° full around
Cylinder capacity: 10T
Maximum lift capacity: 4000kgs
Voltage: 3Ph/380v/415v/220v
Weight: 2800kgs
Packing size: 5600*2130*350mm
750*750*1000mm
2150*1360*750mm / 6cbm
