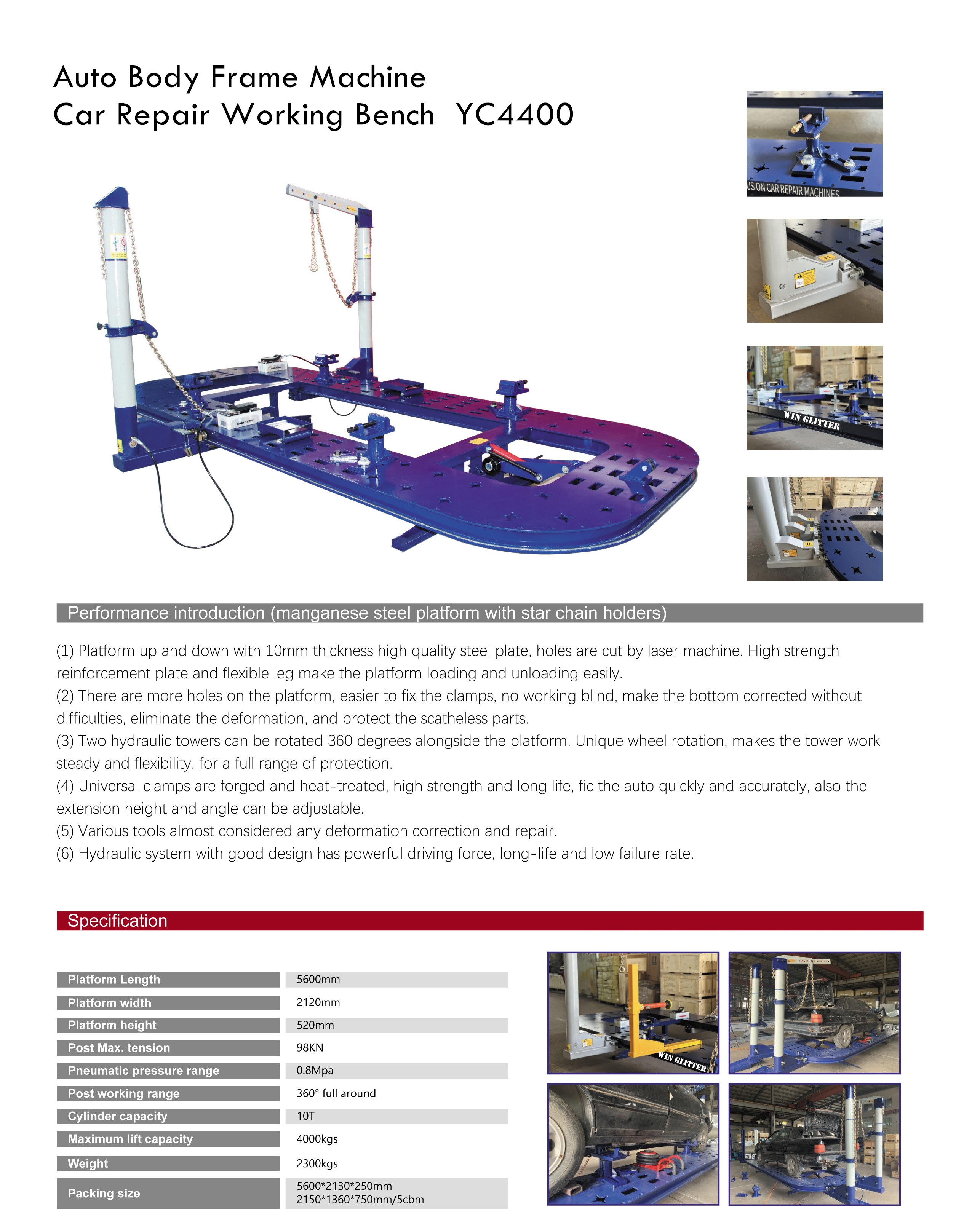

(1) Platform up and down with 10mm thickness high quality steel plate, holes are cut by laser machine. High strength reinforcement plate and flexible leg make the platform loading and unloading easily.
(2) There are more holes on the platform, easier to fix the clamps, no working blind, make the bottom corrected without difficulties, eliminate the deformation, and protect the scatheless parts.
(3) Two hydraulic towers can be rotated 360 degrees alongside the platform. Unique wheel rotation, makes the tower work steady and flexibility, for a full range of protection.
(4) Universal clamps are forged and heat-treated, high strength and long life, fic the auto quickly and accurately, also the extension height and angle can be adjustable.
(5) Various tools almost considered any deformation correction and repair.
(6) Hydraulic system with good design has powerful driving force, long-life and low failure rate.
Platform Length: 5600mm
Platform width: 2120mm
Platform height: 520mm
Post Max.tension: 98KN
Pneumatic pressure range: 0.8Mpa
Post working range: 360° full around
Cylinder capacity: 10T
Maximum lift capacity: 4000kgs
Weight: 2300kgs
Packing size: 5600*2130*250mm
2150*1360*750mm / 5cbm
