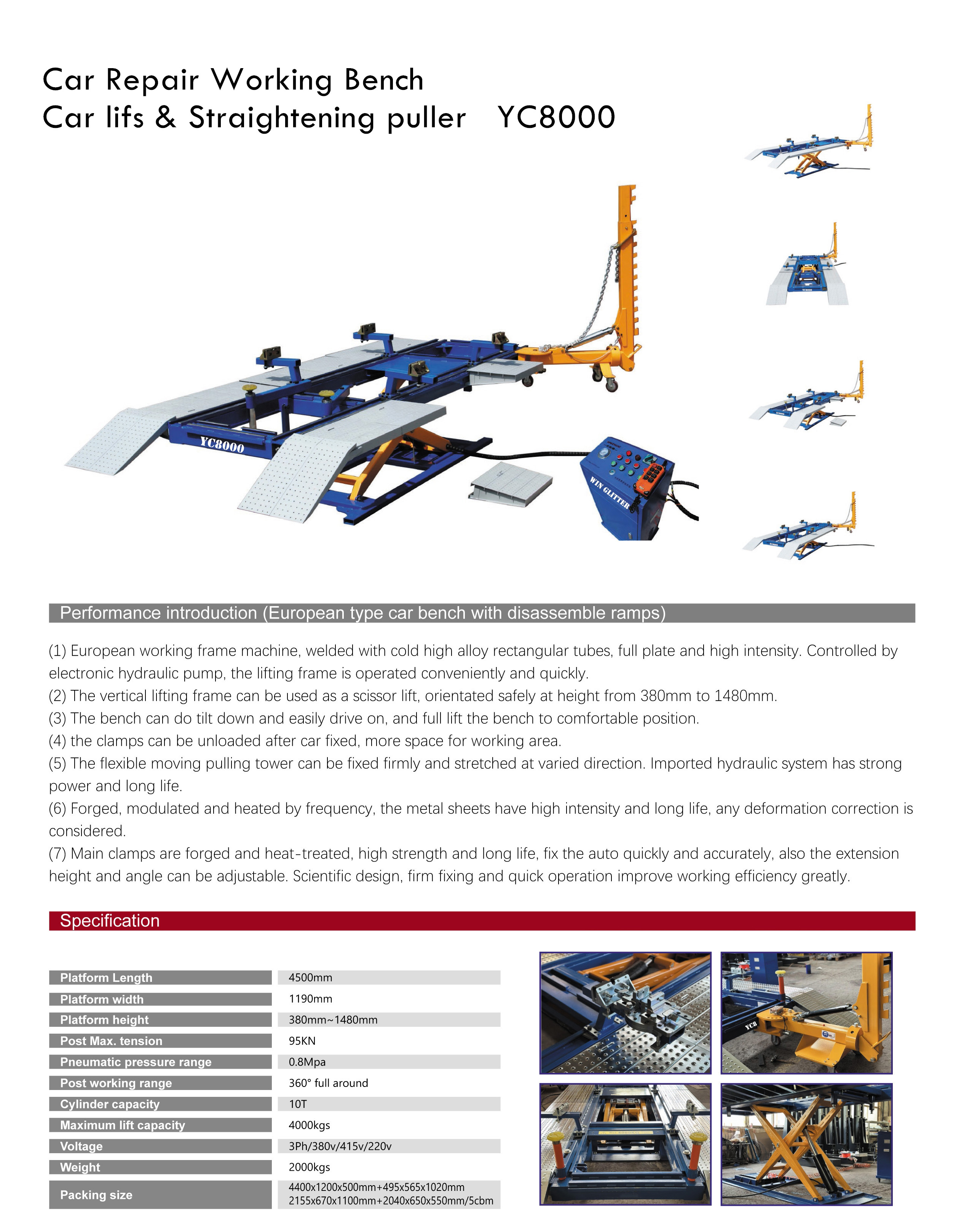

(1) European working frame machine, welded with cold high alloy rectangular tubes, full plate and high intensity. Controlled by electronic hydraulic pump, the lifting frame is operated conveniently and quickly.
(2) The vertical lifting frame can be used as a scissor lift, orientated safely at height from 380mm to 1480mm.
(3) The bench can do tilt down and easily drive on, and full lift the bench to comfortable position.
(4) the clamps can be unloaded after car fixed, more space for working area.
(5) The flexible moving pulling tower can be fixed firmly and stretched at varied direction. Imported hydraulic system has strong power and long life.
(6) Forged, modulated and heated by frequency, the metal sheets have high intensity and long life, any deformation correction is considered.
(7) Main clamps are forged and heat-treated, high strength and long life, fix the auto quickly and accurately, also the extension height and angle can be adjustable. Scientific design, firm fixing and quick operation improve working efficiency greatly.
Platform Length: 4500mm
Platform width: 1190mm
Platform height: 380mm ~ 1480mm
Post Max.tension: 95KN
Pneumatic pressure range: 0.8Mpa
Post working range: 360° full around
Cylinder capacity: 10T
Maximum lift capacity: 4000kgs
Voltage: 3Ph/380v/415v/220v
Weight: 2000kgs
Packing size: 4400*1200*500mm
495*565*1020mm
2155*670*1100mm
2040*650*550MM / 5cbm
