Auto Collision Repair Equipment Chassis Straightening Frame Repair Machine European Car Bench

Short Description:

Car Repair Working Bench
Car lifs & Straightening puller  YC6000




Product Detail

Product Tags

Product Description

(1) Frame-style bench with European technology adopts cold-drawing high alloy rectangular tube, making it with high flatness and strong strength.
(2) The working height of scissor lifting bench can be adjusted between 120mm and 1700mm as needed. Bench can be down to 120mm from the floor, which makes car can be driven on it directly without ramps.
(3) The hydraulic pulling tower can move 360 degrees around the bench rail, making work on all sides of the vehicle fast and efficient. Heavy-duty pulling tower with high strength are always ready multi direction straightening for demanding structures.
(4) The universal clamps are suitable for the positioning and clamping of various imported and domestic cars.
(5) Equipped with electrical pump for bench up/down, the lifting cylinders are operated electrically by hand-held remote control, which speeds up and down.
(6) The imported hydraulic system has reliable performance and long use-life. patent general Lord clamp jaw tiger unique design. Mechanics streamline design of the jaw, through osmosis, heat treatment process, to ensure the fast clamping of various models, improve the working efficiency and service life.

TECHNICAL SPECIFICATIONS

Platform Length: 3400mm
Platform width: 890mm
Platform height: 120mm ~ 1700mm
Post Max.tension: 98KN
Pneumatic pressure range: 0.8Mpa
Post working range: 360° full around
Cylinder capacity: 10T
Maximum lift capacity: 3000kgs
Voltage: 3Ph/380v/415v/220v
Weight: 1300kgs
Packing size: 3420*800*180mm
600*400*1020mm
2040*650*600mm / 1.6cbm

DETAILS

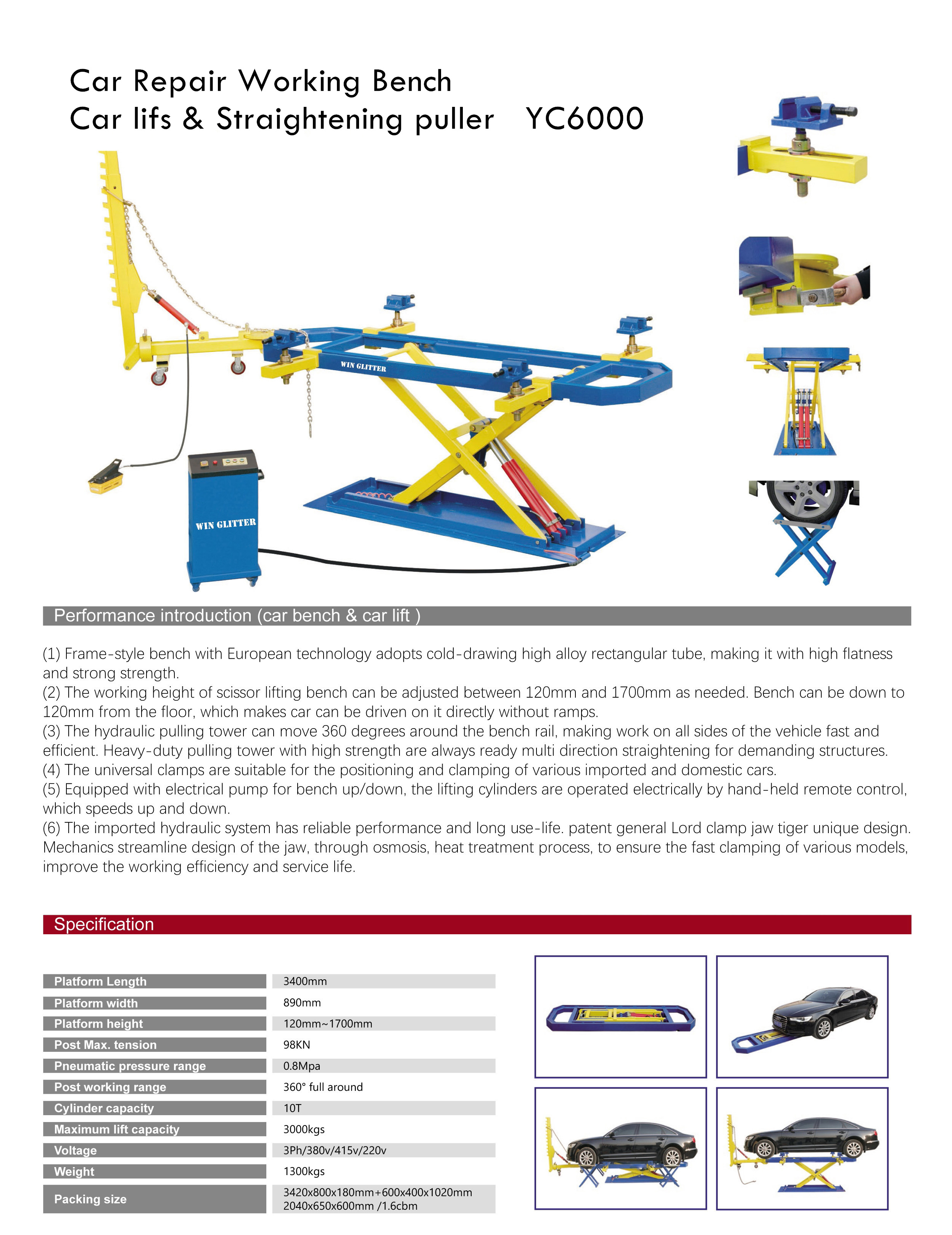

3tons Car Body Frame Machine (3)
