Auto Body Frame Machine
Car Repair Working Bench YC4000




Product Detail

Product Tags

Product Description

(1) 6mm thickness rectangular tube platform, high strength reinforcement plate and flexible leg make the platform loading and unloading easily.
(2) There are more holes on the platform, easier to fix the clamps, no working blind, make the bottom corrected without difficulties, eliminate the deformation and protect the scatheless parts.
(3) Two hydraulic towers can be rotated 360 degrees alongside the platform. Unique wheel rotation, makes the tower work steady and flexibility, for a full range of protection.
(4) Universal clamps are forged and heat-treated, high strength and long life, fic the auto quickly and accurately, also the extension height and angle can be adjustable
(5) Various tools almost considered any deformation correction and repair.
(6) Hydraulic system with good design has powerful driving force, long-life and low failure rate.

TECHNICAL SPECIFICATIONS

Platform Length: 520mm0/5600mm
Platform width: 2120mm
Platform height: 520mm
Post Max.tension: 98KN
Pneumatic pressure range: 0.8Mpa
Post working range: 360° full around
Cylinder capacity: 10T
Maximum lift capacity: 4000kgs
Weight: 2200kgs
Packing size: 5200*2130*250mm
2150*1360*750mm / 4.5cbm

DETAILS

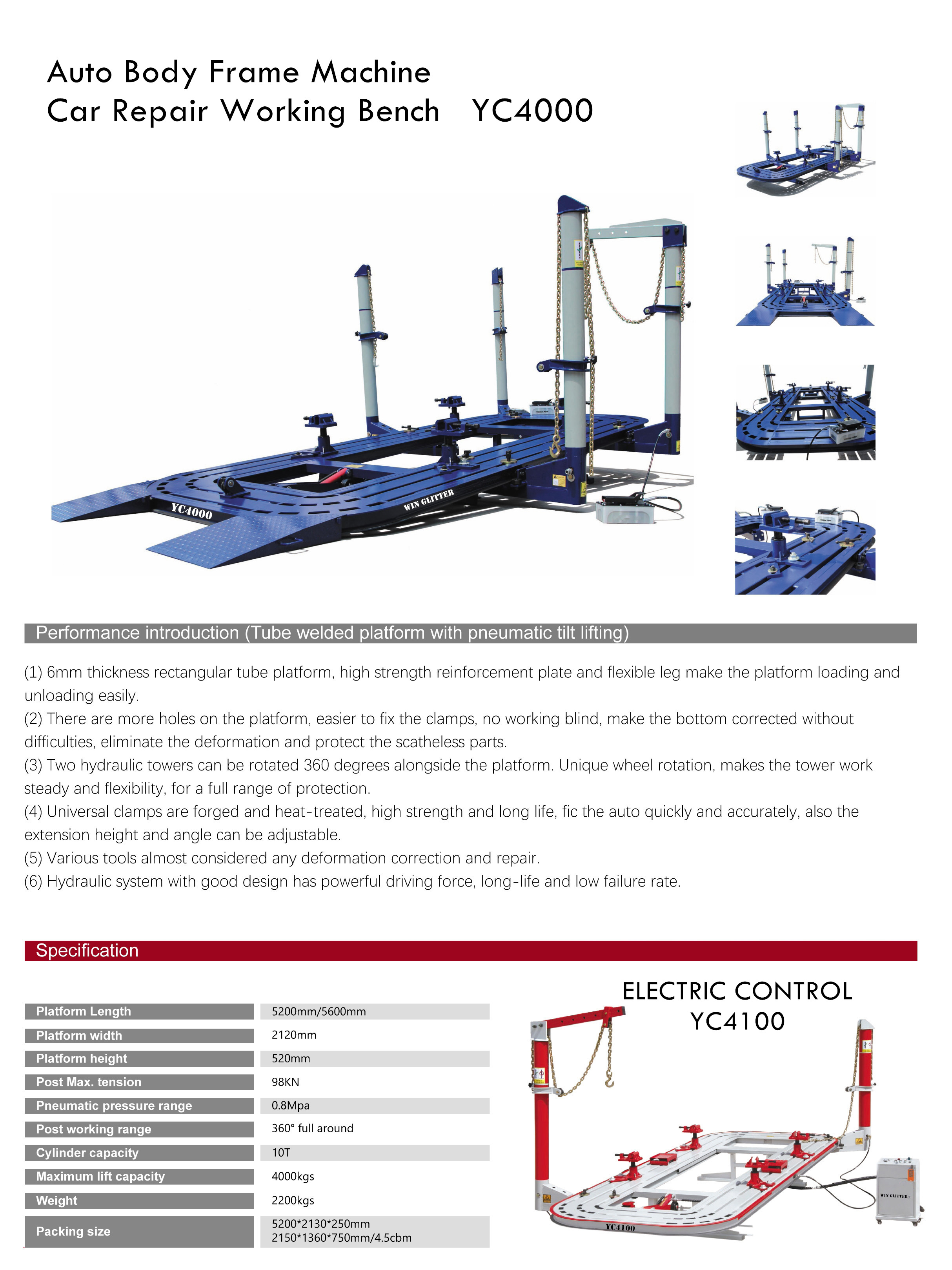

Auto Body Frame Machine Car Repair Bench Equipment (7)
