YC-PBS-C-6340 Hydraulic Four-post lift

Short Description:

Note: According to user requirements for different voltage and frequency product (specific parameters see the equioment signs)

(Optional color)Manual Lock Release 2 Post Car Lift

Product Detail

Product Tags


1.Adopt the electric release,  manual and pneumatic release.
2.Hydraulic power unit configuration throttling device, they can always adjust the rate of decline.
3.Hydraulic cylinder drive, rope drive, quiet and smooth lifting.
4.With wire control security lock, with a wire rope fracture protection, operation safety.
5.Adopt electrical release, eight -point locking system, easy to operate.
6.Can be locked in the desired height of operation, safety and reliability.
7.Runway spacing is adjustable for different wheel base vehicle.
8.With the second lift pulley, can adopt the manual release,  pneumatic release and hydraulic.
9.CE Certificated

Technical Specification

Lifting Capacity 3500kg/4000kg/5000kg
Lifting Height (Main) 1500mm (Jack) 350mm
Min. Height 200mm
Lifting Time 50s-60s
Length Of The Platform 4200mm/4500mm/5000mm
Pass Width 550mm
Motor Power 2.2kw-380v or 2.2kw-220v
Oil Pressure Rating 24MPa
Air Pressure 0.6-0.8MPa
Weight 1200kg/1250kg/1350kg


The Hydraulic Four-post Lift, the must-have solution for your automotive repair needs. This innovative lifting system has been carefully designed to provide automobile enthusiasts with the utmost ease and safety when it comes to carrying out maintenance and repairs. It is incredibly durable, versatile and features advanced functionalities that guarantees top-performance and longevity.

The Hydraulic Four-post lift is an incredibly powerful and automated lifting system that is perfect for heavy-duty auto repair work. With its innovative design and advanced hydraulic pumping technology, this lift provides users with the ultimate combination of precision and performance. Built to handle even the heaviest of vehicles, this four-post lift is designed to make handling large vehicles easy and effective. Our Engineers have designed this system to be ergonomic, making it comfortable for the operator to use.

This product is incredibly versatile, meaning it can be used across a wide range of application areas. It is perfect for small garages, dealership repair centers, or even in large auto repair shops, where they handle vehicles of all sizes. It is an ideal solution for working on almost any type of vehicle, from cars, SUVs, and trucks to heavy-duty vehicles such as buses and large semi-trucks.

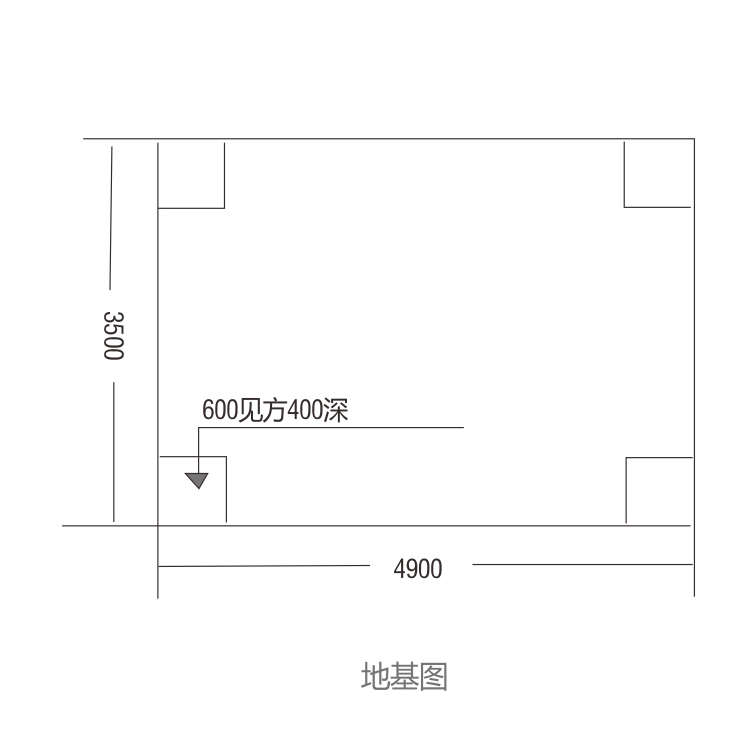

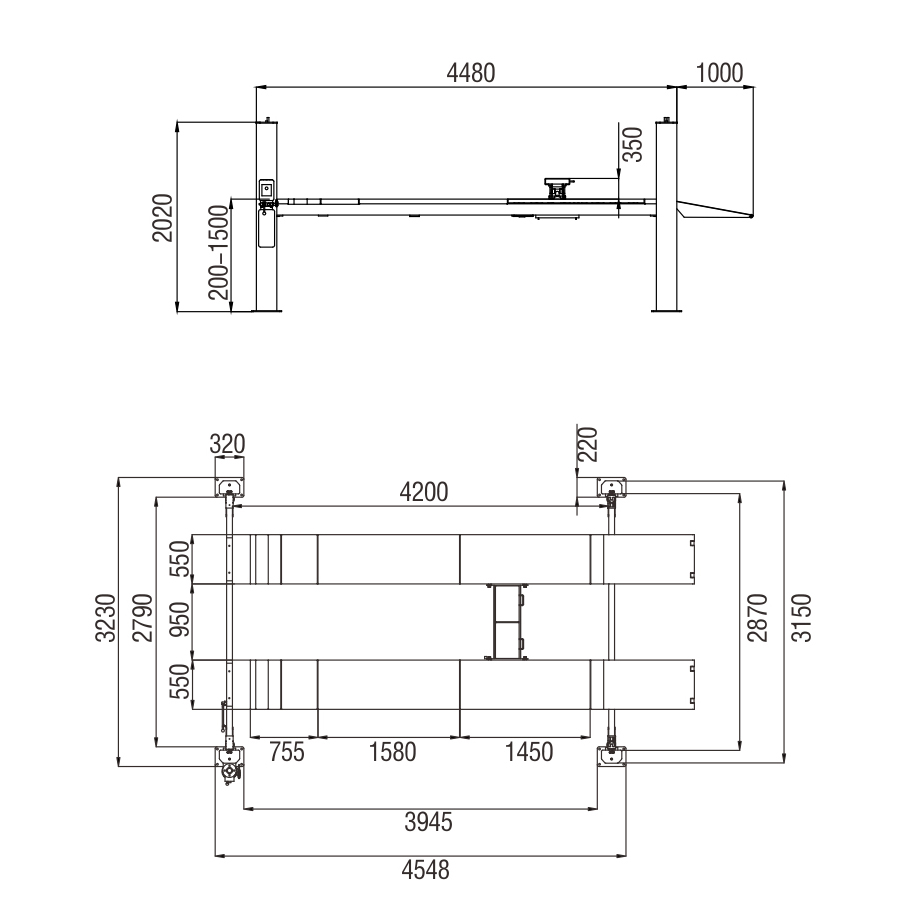

Detailed Drawing

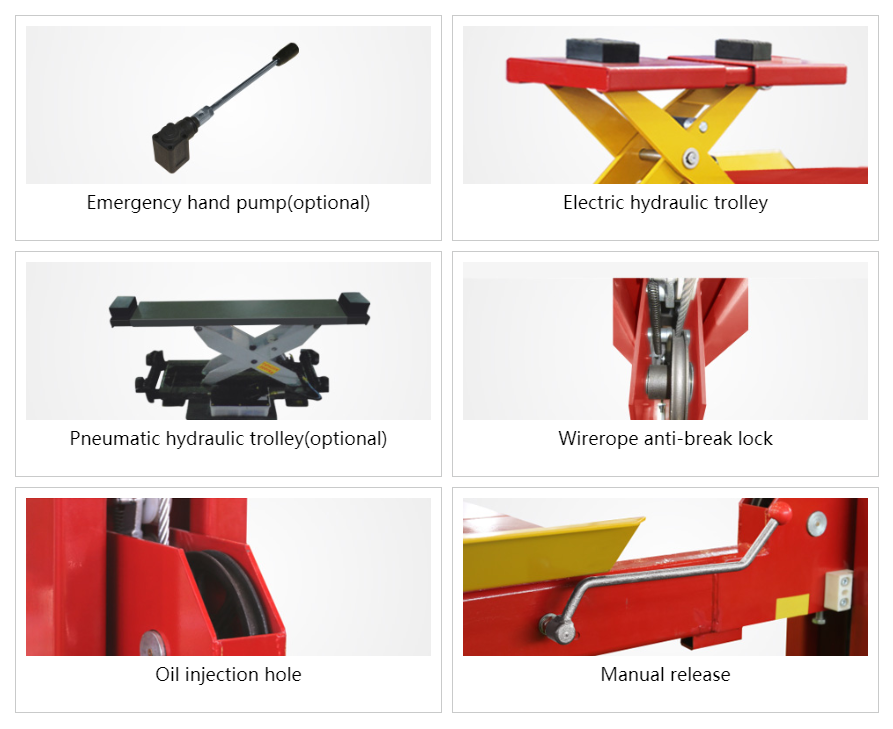

4 post car lift  (2)
YC-PBS-C-6340 (1)
YC-PBS-C-6340 (2)
