YC-LZD-A-1527 MOBILE SINGLE POST LIFT

Short Description:

Note: According to user requirements for different voltage and frequency product (specific parameters see the equipment signs)

(Optional color)Manual Lock Release 2 Post Car Lift


Product Detail

Product Tags

Characteristics

The hydraulic parking lift use the platform to support the car, the length and width of supportive point can be adopted by the platform. Compact structure, less space, light weight and convenient to move for steady running. Good quality pump and electronic units, mechanical racks self-lock and hydraulic pressure are adopted, safe and credible; No need the preparation of the basement, place it to the ground is ok.

1. Mobile lift, easily moves around after use.
2. 2700KG rated lifting capacity covers most vehicles.
3. Manual lock release;
4. Screw-up pads design makes so easy and quick contact with vehicles’ pickup points.
5. 24V control system matches CE standard.
6. Aluminum motor prevents overheating.
7. Anti-surge valve that equipped in hydraulic joint ensures no danger in case of oil hose broken.
8. Reliable cylinder, chromed-plating honed tube and piston rod, provides a long service life.

Technical Specification

Lifting Capacity 2700kg
Lifting Height 1800mm
Min. Height 140mm
Lifting Time 50s-60s
Overall Height 2550mm
Motor Power 2.2kw-380v or 2.2kw-220v
Oil Pressure Rating 24MPa
Weight 850kg

description

Introducing the ultimate solution to your auto repair needs - the 1 Post Car Lift! This cutting-edge equipment is the perfect addition to every auto repair shop or garage, providing you with an easy and efficient way to lift and service a vehicle effortlessly.

Designed with the highest quality materials, this car lift is capable of lifting a variety of vehicles, from a compact car to a full-sized truck. Equipped with a powerful hydraulic motor, this equipment can lift a vehicle smoothly and safely, providing you with a clear view of the undercarriage for a thorough inspection.

The 1 Post Car Lift is highly durable and can support a maximum weight capacity of up to 2.7 tons. This makes it perfect not just for personal use, but also for commercial use in auto repair shops and garages. The equipment is also incredibly easy to operate, with a user-friendly control panel that allows you to operate the lift with ease.

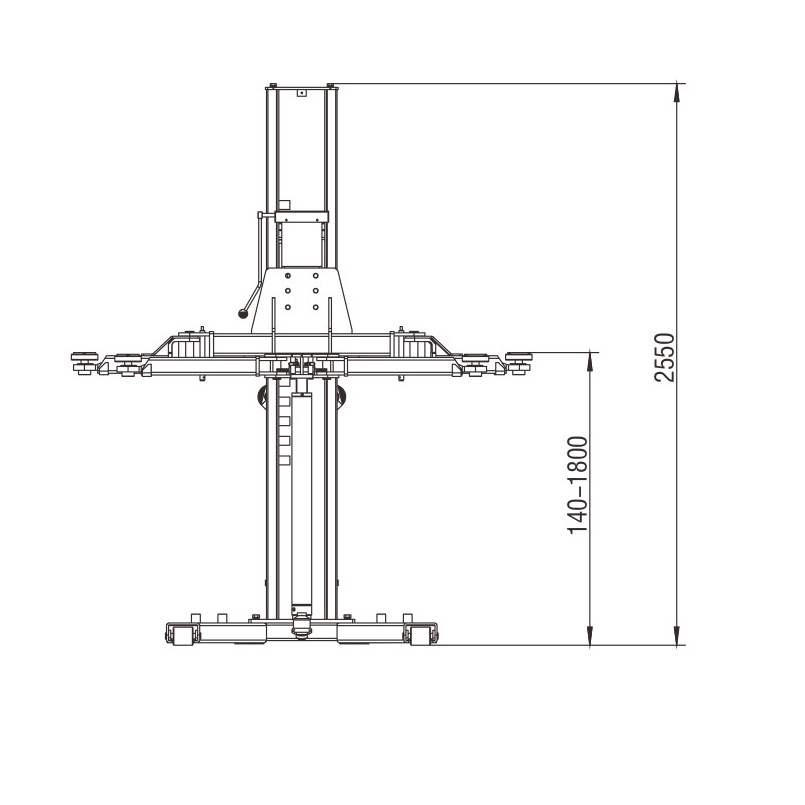

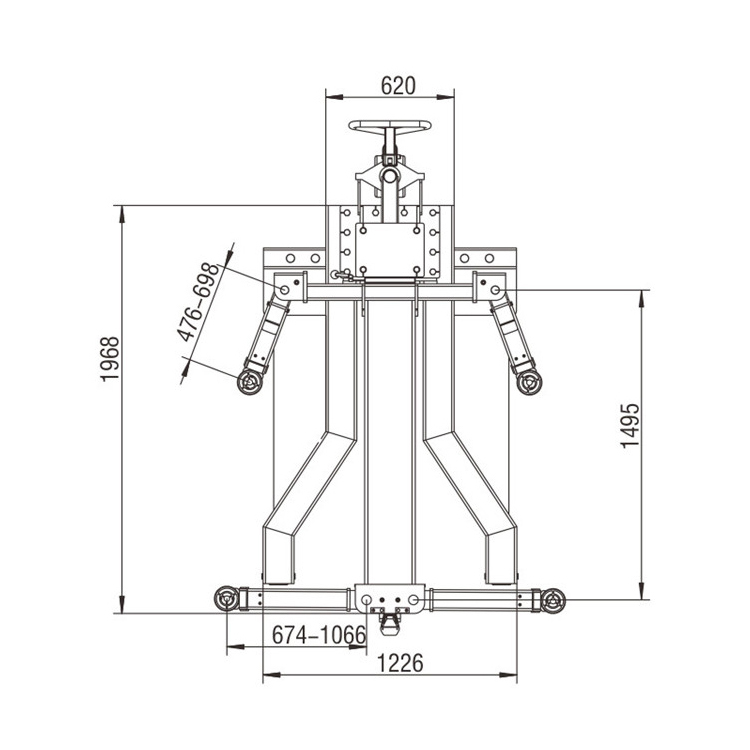

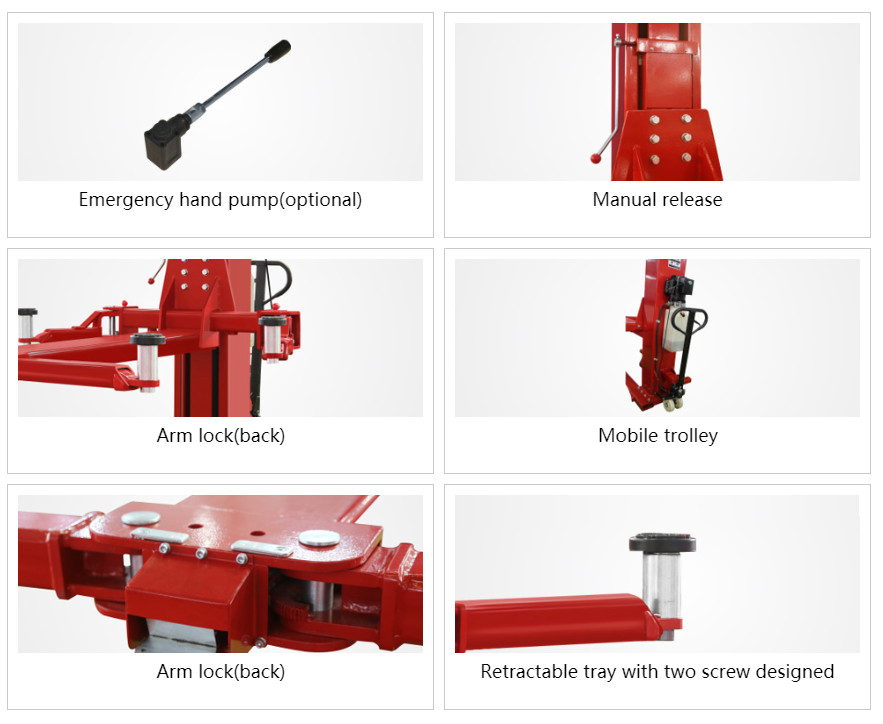

Detailed Drawing

one post car lift  (2)
one post car lift
one post car lift  (1)
