YC-JSZM-C-8140 Ultra-thin large scissor lift 4ton

Short Description:

Note: According to user requirements for different voltage and frequency product (specific parameters see the equioment signs)

(Optional color)Manual Lock Release 2 Post Car Lift

Product Detail

Product Tags


1.This kind of scissor lift is hydraulic four wheel positioning, apply to various level of automobile of professional high-precision four wheel alignment and vehicle inspection, repair and maintenance.
2.The machine‘s mainly hydraulic components selected Italy, Germany high quality imported parts assembly, adopting dual gear,  hydraulic and electrical tripling protection, safe, reliable, synchronous stable running. Using high performance plate produced.
3.Oil cylinder with upper return oil, prevent oil cylinder rust.
4. CE Certificated

Technical Specification

Lifting Capacity 4000kg
Lifting Height (Main) 1750mm (Jack) 350mm
Min. Height 200mm
Lifting Time 50s-60s
Length Of The Platform 4500mm
Platform Width 645mm
Motor Power 3.0kw-380v or 3.0kW-220v
Oil Pressure Rating 24MPa
Air Pressure 0.6-0.8MPa
Weight 2320kg
Packaging 4500*680*550mm
Total 5 packaging


Introducing our new and innovative Car Scissor Lift, designed to make your automotive maintenance and repair tasks much easier and more efficient. Our lift is made with high-quality, durable materials and is easy to operate, making it the perfect addition to any home garage or professional workshop.

Our Car Scissor Lift can be used for a variety of tasks, including changing tires, inspecting the undercarriage, and performing routine inspections. It has a maximum lifting capacity of 6,000 lbs, making it suitable for most cars and light trucks. The lift can be easily adjusted to different heights, allowing you to work comfortably and safely.

One of the benefits of our Car Scissor Lift is that it is very compact and easy to store when not in use. It takes up minimal space and can be moved around with ease using the built-in wheels. This means that it is ideal for those who have limited space in their garage or workshop.

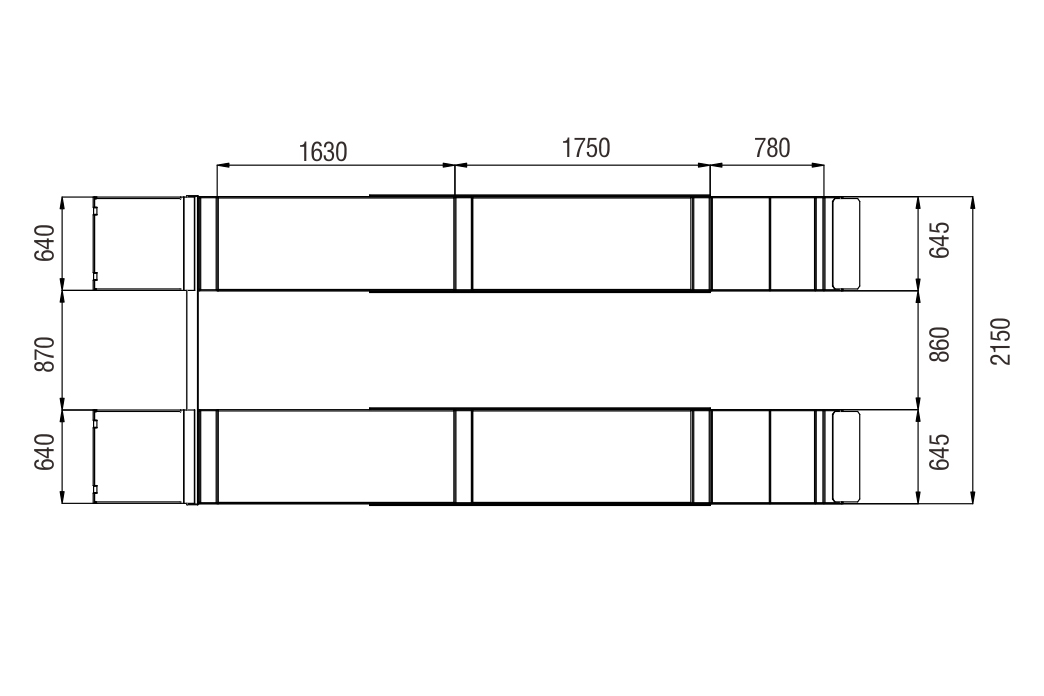

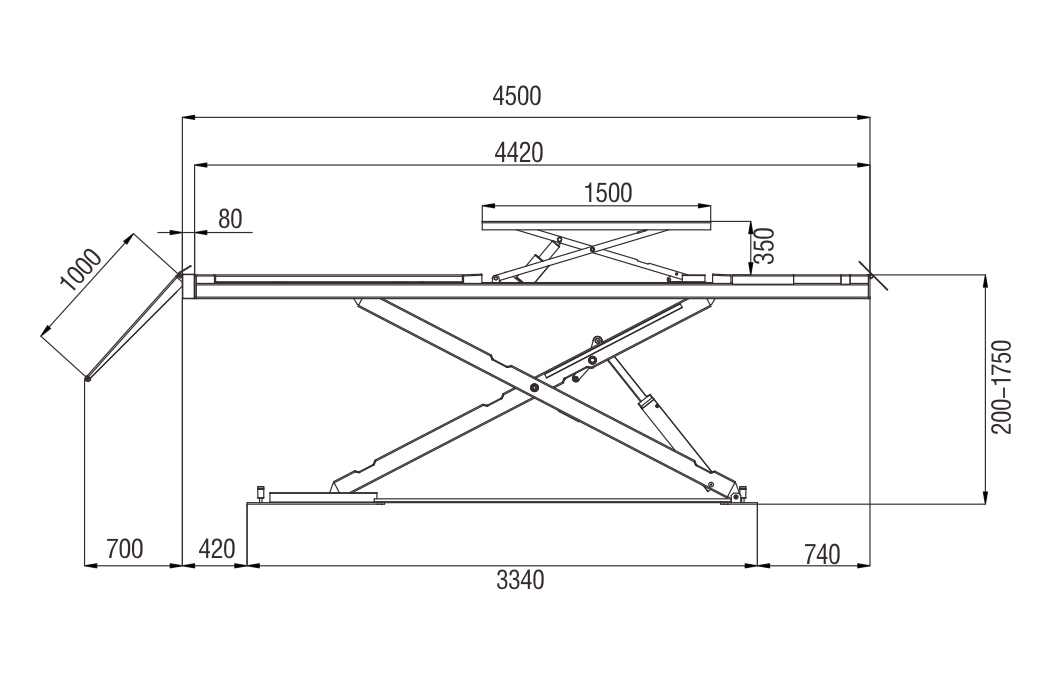

Detailed Drawing

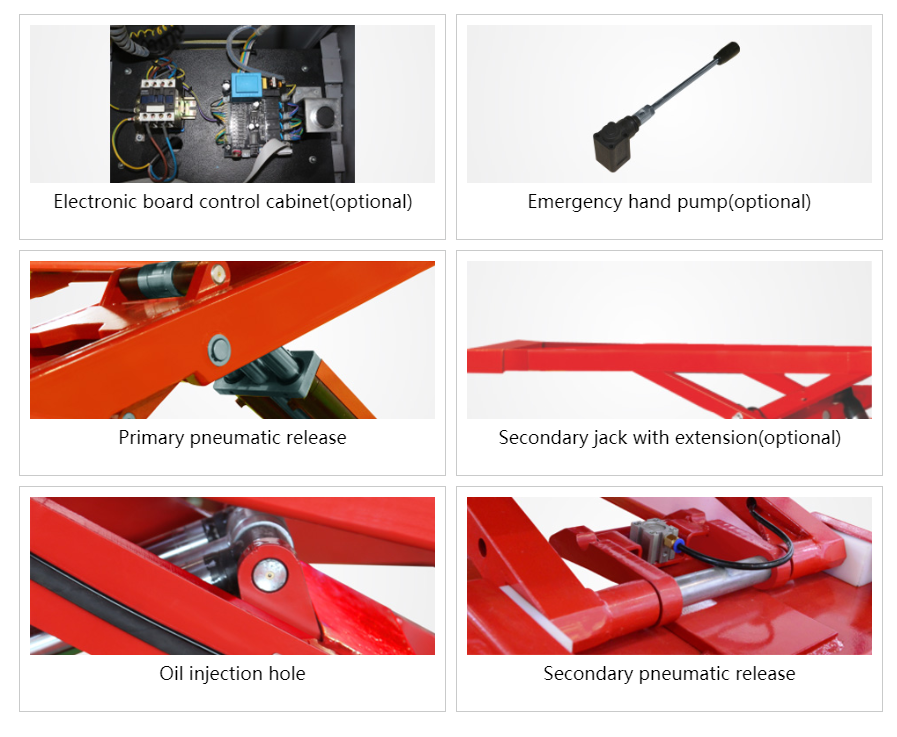

wheel alignment scissor car lift (2)
YC-JSZM-C-8140  (1)
YC-JSZM-C-8140  (2)
